Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 1966-'73 WEBER DHSA & DIC CARBURETTOR Service Kit — £36.42

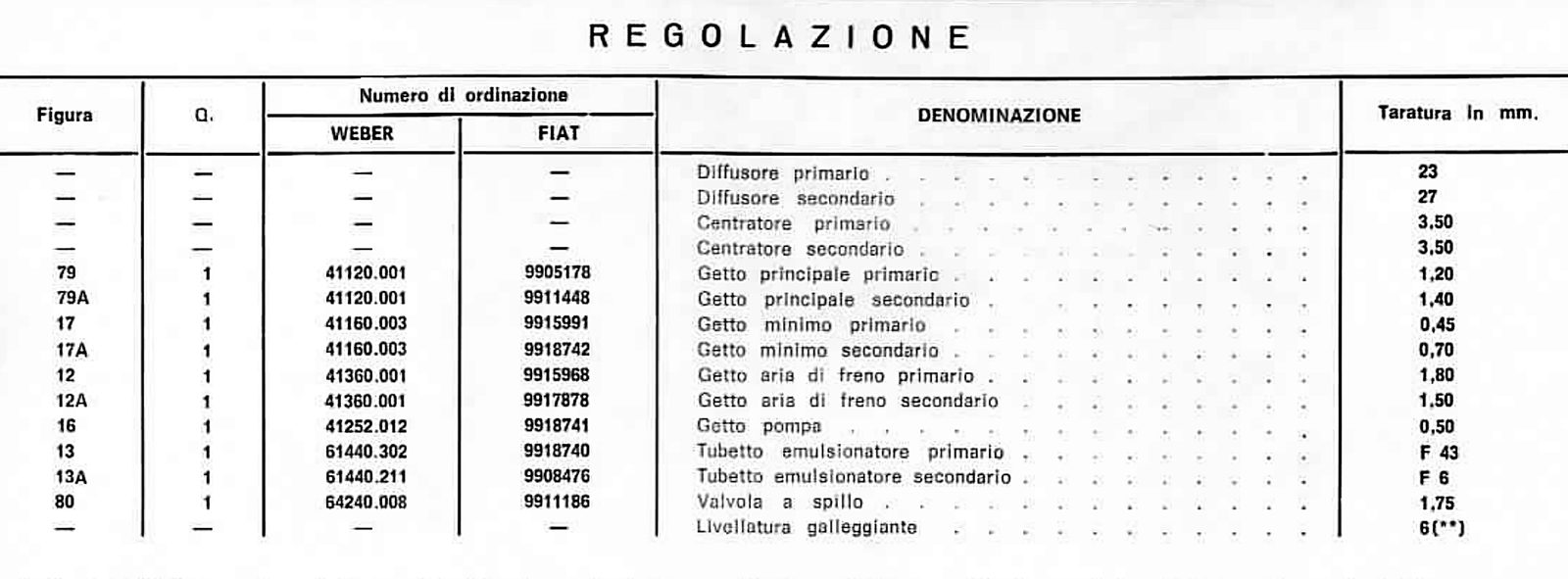

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.114 | Carburettor cover, comprising: | not available |
| 2 | 64955.007 | WEBER DCOE, DCO/SP & DCNF CARBURETTOR JET COVER / AIR FILTER STUD | £8.44 |
| 3 | 64010.006 | Choke butterfly valve | not available |
| 4 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 5 | 32610.006 | WEBER CARBURETTOR SPLIT PIN (now 32610.005) | £0.91 |
| 6 | 32610.005 | WEBER CARBURETTOR SPLIT PIN | £0.91 |
| 6 | 55510.056 | Avviam control link rod washer | not available |
| 7 | 61280.026 | Choke control link rod | not available |
| 8 | 10020.213 | Choke spindle | not available |
| 9 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 10 | — | Riparapolvere plate | not available |
| 11 | 41705.028 | TOP COVER GASKET TO SUIT WEBER CARBURETTORS: 26/34 DHSA, 28/36 DHSA, 32 DAR, 32 DARA, 32 DFB, 32 DHSA, 32 DIR, 32 DMSA, 34 DHS | £5.94 |
| 12 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 13 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 13 | — | Primary emulsion tube | not available |
| 14 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 14 | 64290.015 | WEBER Pump Demand Valve | £18.23 |
| 15 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 16 | 41252.012 | Pump jet | not available |
| 17 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 18 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 18 | 52570.005 | WEBER CARBURETTOR IDLE JET HOLDER | £4.15 |
| 19 | 41640.018 | Body gasket | not available |
| 20 | 31800.008 | Capsule | not available |
| 21 | 64700.011 | Carpo capsula fixing screw | not available |
| 22 | 61400.008 | Unloader device tubazione | not available |
| 23 | 47610.026 | Butterfly opening setting spring | not available |
| 24 | 45034.048 | Choke spindle control lever | not available |
| 25 | 61015.003 | Secondary idle fore plug | not available |
| 26 | 47610.056 | Choke control lever spring | not available |
| 27 | 45202.044 | Choke control lever | not available |
| 28 | 45202.045 | not available | |
| 29 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 30 | 55510.002 | Choke Lever Mounting Washer | £1.23 |
| 31 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 32 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 33 | 64605.017 | WEBER CARBURETTOR CHOKE CABLE CLAMP SCREW | LOCKS THE OUTER CABLE SHEATH | £2.90 |
| 34 | 45032.106 | Throttle Lever 26/34 DHSA | £8.33 |
| 35 | 12750.026 | Secondary spindle spacer | not available |
| 36 | 45027.033 | Secondary butterfly control lever | not available |
| 37 | 61280.061 | Fast idle camando link rod | not available |
| 38 | 55530.002 | WEBER CARBURETTOR WASHER | £1.53 |
| 39 | 47605.010 | WEBER DGV / DFV / DFAV / DGAV / DGR / DMS / DIF CARBURETTOR THROTTLE RETURN SPRING | £4.17 |
| 40 | 55510.046 | Secondary spindle washer | not available |
| 41 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 42 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 43 | 34710.003 | WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT | M7 | £1.28 |
| 44 | 55520.004 | WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER | £1.66 |
| 45 | 45027.092 | Primary butterfly control lever | not available |
| 46 | 55510.015 | Loose lever washer | not available |
| 47 | 45069.006 | Loose lever | not available |
| 48 | 12775.039 | Boccolea per leva allentate | not available |
| 49 | 45032.113 | Ammortizzatore control loose lever | not available |
| 50 | 45067.014 | Fast idle lever | not available |
| 51 | 45136.027 | Primary spindle control lever | not available |
| 52 | 47600.027 | WEBER CARBURETTOR MAIN SHAFT RETAINING SPRING | £3.75 |
| 53 | 50002.005 | Shutter | £7.05 |
| 54 | — | Carburettor body — not supplied separately | not available |
| 55 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 56 | 64625.007 | Primary butterfly adjusting screw | not available |
| 57 | 64750.020 | MIXTURE SCREW 26/34 DHSA | £10.87 |
| 58 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 59 | — | Pump caricamentc spring | not available |
| 60 | 47407.016 | WEBER CARBURETTOR PUMP DIAPHRAGM & CHOKE PULL DOWN DIAPHRAGM (now 47407.261) | £22.25 |
| 61 | 32486.024 | Pump cover | not available |
| 62 | 57804.016 | Unloader device | £47.95 |
| 63 | 64700.008 | WEBER carburettor Top cover / Auto-Choke Body / Anti-Flood | Screw | £4.06 |
| 64 | 64700.004 | WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012) | £2.90 |
| 65 | 47610.024 | Primary spindle return spring | not available |
| 66 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 67 | 64005.024 | Primary throttle plate | not available |
| 68 | 10015.478 | Primary throttle spindle | not available |
| 69 | 10000.478 | Secondary throttle spindle | not available |
| 70 | 45034.054 | Secondary butterfly adjusting lever | not available |
| 71 | 64595.007 | Screw | not available |
| 72 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 73 | 45032.114 | Lever | not available |
| 74 | 12750.061 | Distanzlale | not available |
| 75 | 64005.018 | Secondary throttle plate | £15.67 |
| 76 | 64900.001 | WEBER CARBURETTOR PUMP DISCHARGE BLANKING NEEDLE. | £4.46 |
| 77 | 41015.004 | Float | not available |
| 78 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 79 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 80 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 80 | 64240.008 | WEBER CARBURETTOR NEEDLE VALVE (now 79507) | £16.16 |
| 81 | 41535.015 | WEBER CARBURETTOR NEEDLE VALVE WASHER (now 83102.070) | £1.02 |
| 82 | 55510.019 | Tlrantino washer | not available |
| 83 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 84 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 85 | 61280.060 | Unloader control link rod | not available |
| 86 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 87 | 55530.008 | Choke lever spring washer 40 DFI | £3.05 |
| 88 | 45129.009 | Unloader control lever | not available |
| 89 | 64700.005 | Coperchlo carburatore fixing screw (now 64695.005) | £3.74 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

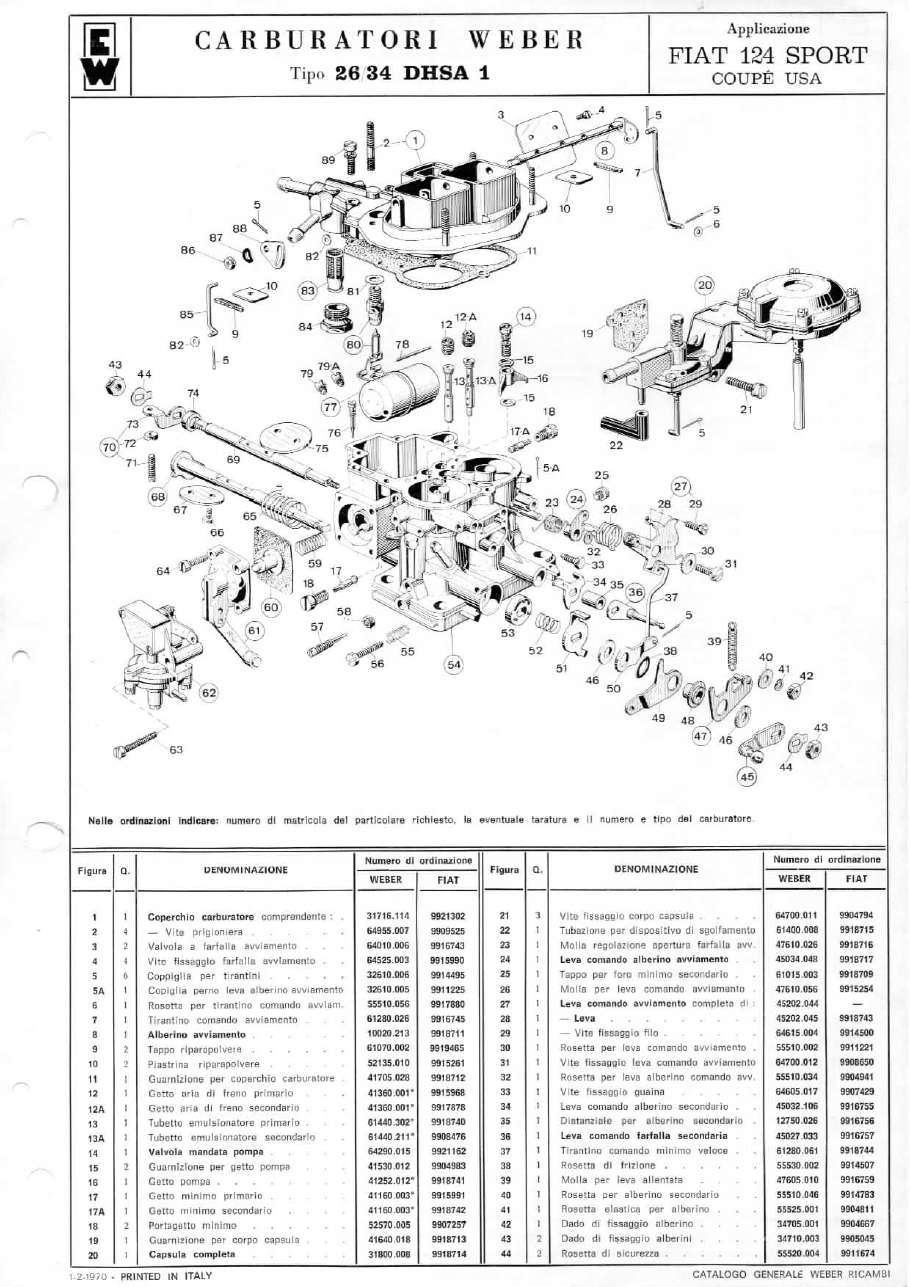

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
__________________________________________________________________________________________________________________

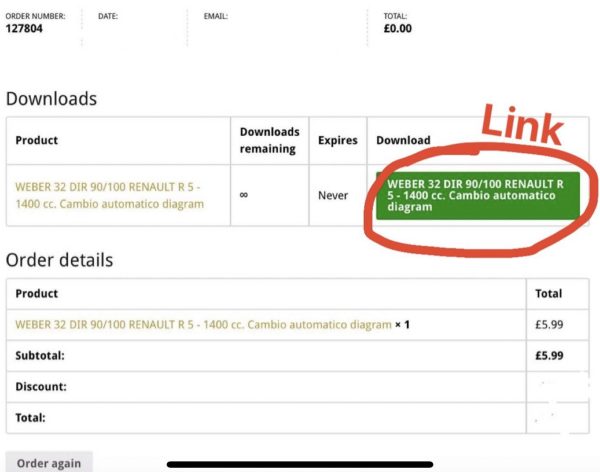

After purchase, you will be redirected to this page pictured below, where you can download the product.
