Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 28/32 ADHA / 36 & 38 ADL Service Kit — £29.30 — the kit number printed on this sheet
Original factory jetting: item 10 — 1.70, item 51 — 1.75. These are the sizes this carburettor left the factory with.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 47600.171 | Power full valve spring 1 19 31716.389 carburettor cover | not available |
| 2 | 47407.163 | Diaphragm Anti Stall for WEBER ADF / DAT / ADHA | £24.28 |
| 3 | 64565.001 | Vacuum pump cover fixing screw 4 21 64372.009 vent valve | £1.82 |
| 4 | 64700.011 | Fast idle capsule fixing screw 2 22 64700.005 carburettor cover fixing screw | not available |
| 5 | 55510.016 | Fast idle capsule screw washer 23.2 61002.019 oan filter inspection plug | not available |
| 6 | 31800.046 | Elemento filtrante 37022.004 24 1 Capsula minimo accelerato completa | not available |
| 7 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 8 | 52570.006 | WEBER IDLE JET HOLDER | £6.85 |
| 9 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 10 | 74403.060 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 11 | 50002.008 | 14:.— 1: Coperchio pompa pneumatica 32486.080 2 1 Otturatore | not available |
| 12 | 47600.027 | WEBER CARBURETTOR MAIN SHAFT RETAINING SPRING | £3.75 |
| 13 | 14850.145 | Pump control cam 1 __ full valve cover fixing screw | not available |
| 14 | 55520.004 | WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER | £1.66 |
| 15 | 34710.003 | WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT | M7 | £1.28 |
| 16 | 61280.115 | Vent control link rod 1 4 77201.165* primary correction air jet | not available |
| 17 | 45067.079 | Fast idle control loose lever 1 36 77201.170* secondary correction air jet | not available |
| 17 | 10140.304 | DRLA Choke cable bolt | £3.86 |
| 18 | 55510.081 | WEBER CARBURETTOR SECONDARY THROTTLE SHAFT SPINDLE WASHER | £1.66 |
| 18 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 19 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 20 | 55530.014 | Wave washer | not available |
| 21 | 12750.103 | Spacer | not available |
| 22 | 45067.077 | Vent control loose lever | not available |
| 23 | 47610.102 | Vent control lever spring | not available |
| 24 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 25 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 26 | 64700.016 | Base fixing screw | not available |
| 27 | 64595.013 | SCREW FOR WEBER DMTL / DFT CARBURETTORS | £5.07 |
| 28 | 67016.066 | Carburettor base | not available |
| 29 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 30 | 10000.279 | Primary main spindle 1 so | not available |
| 31 | 64005.116 | Primary butterfly valvoia | not available |
| 32 | 64005.054 | Secondary butterfly valvoia | not available |
| 33 | 64520.027 | WEBER CARBURETTOR BUTTERFLY / THROTTLE VALVE SCREW (now S57392022) | £2.26 |
| 34 | 10015.296 | Secondary throttle spindle | not available |
| 35 | 55555.054 | Primary spindle shim washer | not available |
| 36 | 47610.144 | Loose lever spring | not available |
| 37 | 55530.002 | WEBER CARBURETTOR WASHER | £1.53 |
| 38 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 39 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 40 | 45027.137 | Control lever | not available |
| 41 | 47610.143 | Primary spindle return spring | not available |
| 42 | 12775.075 | Loose lever support bush | not available |
| 43 | 45069.055 | Vel min control loose lever | not available |
| 44 | 64590.010 | Adjusting screw | not available |
| 45 | 64750.051 | WEBER CARBURETTOR INTERNAL MIXTURE SCREW | £8.77 |
| 46 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 47 | 39152.019 | Flange Gasket 28/32 ADHA | £32.01 |
| 48 | — | Carburettor body — not supplied separately | not available |
| 49 | 47600.094 | Idle speed screw spring | £4.17 |
| 50 | 64895.011 | Idle speed screw | not available |
| 51 | 31800.047 | Secondary opening capsule | not available |
| 52 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 53 | — | Capsule fixing screw washer | not available |
| 54 | 64700.005 | Capsule fixing screw (now 64695.005) | £3.74 |
| 55 | 43903.055 | Idle cut-off valve | not available |
| 56 | 55530.016 | Wave washer | not available |
| 57 | 58000.019 | Cup | not available |
| 58 | 41565.001 | WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) | £6.20 |
| 59 | 74049.055 | Primary idle jet | not available |
| 60 | 47600.092 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £9.05 |
| 61 | 41565.001 | WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) | £6.20 |
| 62 | 76407.050 | WEBER CARBURETTOR PUMP JET | £14.01 |
| 63 | 70508.350 | Primary auxiliary venturi | not available |
| 64 | 70508.350 | Secondary auxiliary venturi | not available |
| 65 | 41705.049 | Top Cover Gasket for WEBER ADHA, ADFA, ADL, ADLA | £6.31 |
| 66 | 47407.116 | Mechanical pump diaphragm | not available |
| 67 | — | Mechanical pump cover | not available |
| 68 | 52135.018 | WEBER CARBURETTOR CHOKE FLAP LEVER DUST COVER | £4.17 |
| 69 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 70 | 64565.001 | Mechanical pump cover fixing screw | £1.82 |
| 71 | 57804.385 | Choke device | £47.95 |
| 72 | 47600.255 | Counter spring | not available |
| 73 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 74 | 47605.040 | Choke spring | not available |
| 75 | 47407.212 | Diaphragm | not available |
| 76 | 47600.092 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £9.05 |
| 77 | 32384.039 | Diaphragm cover | £24.46 |
| 78 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 79 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 80 | 64895.010 | WEBER DHTA | DATR VACUUM UNIT SCREW | £4.46 |
| 81 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 82 | 64700.001 | Choke device tissaggio screw (now 64695.021W) | £2.10 |
| 83 | 41640.052 | WEBER WATER-CHOKE CHOKE HOUSING PLATE SEAL | £4.22 |
| 84 | 57804.298 | Thermostatic coil housing | £47.95 |
| 85 | 52135.029 | Choke Retaining Plate ring | £7.01 |
| 86 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 87 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 88 | 32444.011 | WEBER ADF, ADFA, ADHA, DAT, DATA, DATR CARBURETTOR CHOKE COVER | £31.22 |
| 89 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 90 | 64610.008 | WEBER CARBURETTOR CHOKE HOUSING FIXING SCREW | £2.90 |
| 91 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 92 | 64010.034 | Choke Plate ADL ADF ADM | £14.82 |
| 93 | 10015.274 | Choke spindle | not available |
| 94 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 95 | 64570.005 | Capsule tube | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

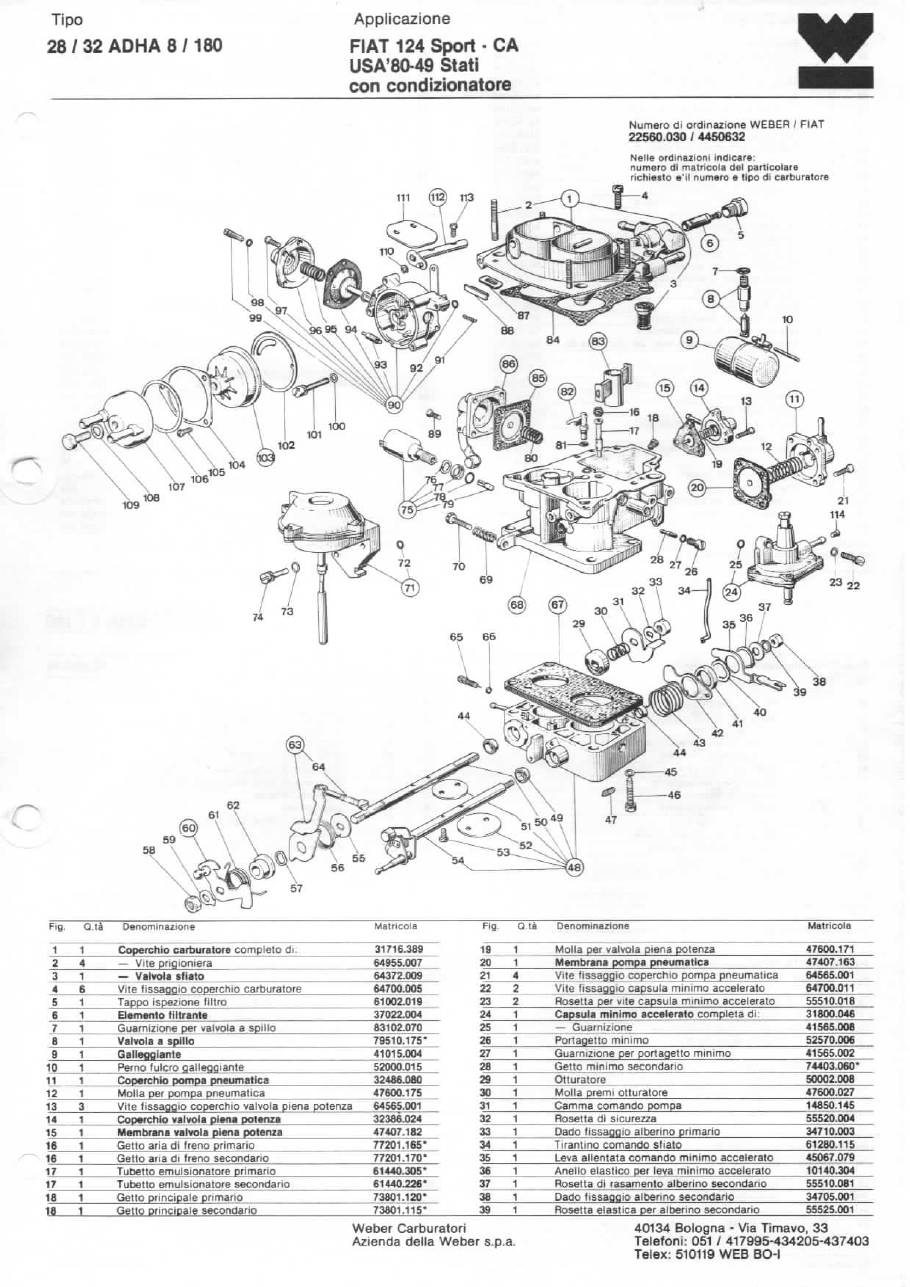

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
