Name: WEBER CARBURETTOR 32 DIR 90/100 RENAULT R 5 - 1400 cc. Cambio automatico diagram - Classic Carbs UK
Price: 5.99 GBP
Availability: InStock

Description

Parts on this drawing

Carburettor parts list in below table — click on available parts to view them or order them in the shop.

Service kit for this carburettor: WEBER 32 DIR CARBURETTOR Service Kit — £42.90

Item	Weber no.	Part	Price
14	45138.030	Fast idle adjusting lever 21.1 31716.466 carburettor cover	not available
15	34715.006	WEBER CARBURETTOR M5 NUT (now 34705.001)	£1.04
16	64595.009	WEBER CARBURETTOR FAST IDLE ADJUSTMENT SCREW	£10.02
17	12775.058	Fast idle lever bush 10005.219 choke spindle	not available
18	64700.026	Levers fixing screw 2 25 45025.200 choke spindle lever (now 64695.024)	£2.90
19	45202.171	Choke control lever 1 26 55530.008 choke spindle wave washer	not available
20	64615.004	WEBER Carburettor Screw	£2.90
21	12775.057	Choke control lever bush 28.1 61287.055 choke control link rod	not available
22	10015.541	Secondary main spindle 12775.079 choke link rod bush	not available
23	47610.056	Choke control lever spring 1 30 61070.002 shield plug	not available
24	55510.003	Levers washer 31.2 dust shield plate	not available
25	64605.017	WEBER CARBURETTOR CHOKE CABLE CLAMP SCREW \| LOCKS THE OUTER CABLE SHEATH	£2.90
26	47610.058	Fast idle lever spring 33 71113.400* primary auxiliary venturi	not available
27	52130.010	WEBER CARBURETTOR SPINDLE BUSH / STRIP / SLEEVE \|	£4.81
28	55510.087	WASHER	£1.66
15	41575.010	WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER'	£5.12
16	47610.158	Primary spindle return spring 37.1 52030.002 link rod adjusting pero	not available
17	45069.069	Primary loose lever 38 61285.036 vent control link rod	not available
18	45027.112	Farfalie control lever 39°c 74403.050" secondary idle jet	not available
19	34715.014	WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT \| M8x1.0mm	£1.04
20	55520.002	WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER	£0.84
21	12765.084	Loose lever bush	not available
22	47610.127	Loose lever spring	£8.48
23	12750.097	Primary spindle spacer	not available
24	45138.037	Idle idle speed adjusting lever	not available
25	47600.007	WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING	£1.51
26	64625.007	Adjusting screw	not available
27	55555.016	Throttle shaft shim	£1.66
28	64595.005	WEBER CARBURETTOR ADJUSTING GRUB SCREW	£5.91
29	39152.014	Flange Gasket 32 DARA	£22.34
30	39166.011	Heating flangia	not available
31	64700.001	Flangia riscaldamento fixing screw (now 64695.021W)	£2.10
32	41565.008	WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL	£2.13
33	61075.002	Sgolfatore cover plug	£6.79
34	64700.020	Unloader device fixing screw	not available
35	57804.459	Unloader device	£47.95
36	64595.005	WEBER CARBURETTOR ADJUSTING GRUB SCREW	£5.91
37	47600.163	Spring	not available
38	47407.065	Diaphragm	not available
39	64565.002	Fixing screw	not available
40	10140.501	WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP	£1.02
41	45027.114	Unloader control lever	not available
42	55510.034	Washer for Weber DGAS, DGES & DGMS Carburettors	£1.23
43	10140.502	WEBER DMTE, DIR, DMTL, DRTC, DMTR, DGS, DCNVA, IDA, IDA3C Carburettor Circlip / clip 'e – clip'	£1.36
44	32486.078	Pump cover	not available
45	64565.001	Pump cover fixing screw	£1.82
46	64005.090	Throttle plate	£18.67
47	64520.023	WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW	£1.3
48	47407.131	WEBER CARBURETTOR PUMP DIAPHRAGM	£28.00
49	47600.107	WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING	£1.78
50	61075.021	Plug	£3.13
51	64750.071	Idle mixture screw	not available
52	41565.010	WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040)	£5.64
53	10015.516	Primary throttle spindle	not available
54	10140.207	DRLA Choke cable bolt	£3.86
55	64570.008	Grub Screw – Idle jet holder for weber ICH	£1.66
56	—	Carburettor body — not supplied separately	not available
57	73801.117	WEBER CARBURETTOR MAIN JET	£2.69
58	73801.150	WEBER CARBURETTOR MAIN JET	£2.69
59	41015.004	Float	not available
60	41530.012	WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014)	£1.60
61	64290.015	WEBER Pump Demand Valve	£18.23
62	77201.190	WEBER CARBURETTOR AIR CORRECTOR JET	£3.04
63	77201.185	WEBER CARBURETTOR AIR CORRECTOR JET	£3.04
64	61440.365	WEBER CARBURETTOR EMULSION TUBE	£17
65	61440.365	WEBER CARBURETTOR EMULSION TUBE	£17
66	76227.050	Pump jet	not available
67	52000.015	WEBER CARBURETTOR FUEL FLOAT PIN	£1.51
68	79510.175	WEBER CARBURETTOR NEEDLE VALVE ASSEMBLY	£12.22
69	83102.070	WEBER CARBURETTOR NEEDLE VALVE WASHER	£1.02
70	52570.009	WEBER IDLE JET HOLDER	£6.85
71	41565.019	WEBER ICT CARBURETTOR O-RING SEAL	£1.12
72	74409.042	WEBER CARBURETTOR IDLE JET	£3.28
73	47670.008	Spring	not available
74	61280.130	Unloader control link rod	not available
75	45129.021	Depressione unloader control lever	not available
76	12750.107	Choke spindle support bush	not available
77	55510.110	Link rod washer	not available
78	32610.003	Link rod split pin	£0.91
79	61002.019	WEBER PLUG INTAKE FILTER COVER	£5.57
80	37022.004	Internal fuel filter for Weber ADF & DRT Carburettors	£8.07
81	64700.001	Carburettor cover fixing screw (now 64695.021W)	£2.10
82	55510.034	Washer for Weber DGAS, DGES & DGMS Carburettors	£1.23

Hello,

This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.

You will receive the link to download the PDF sheet, as soon as you have completed your order.

You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.

You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.

We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).

The diagram is mostly in English, but some variations might be in Italian or French.

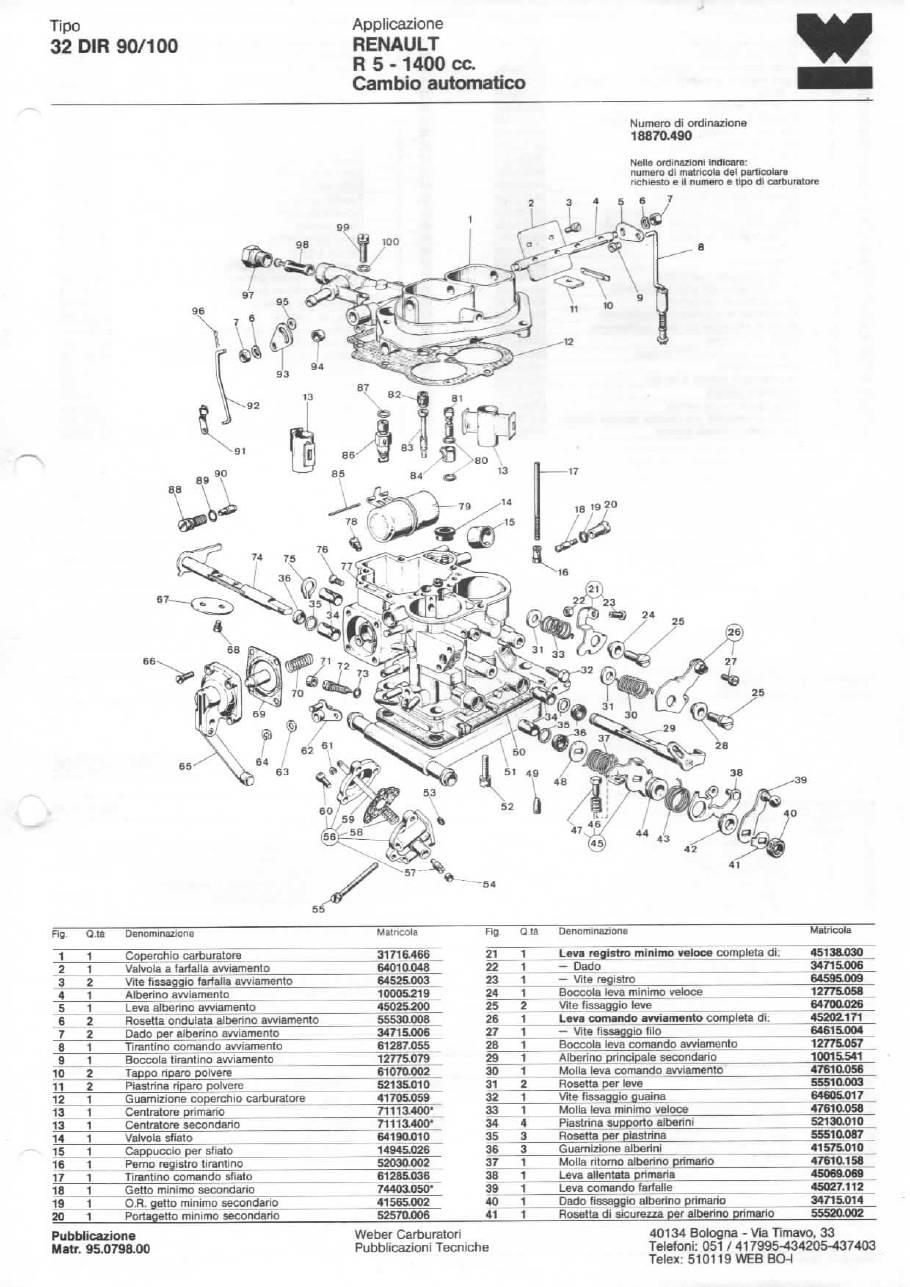

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.

The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).

This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.

This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!

Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.

If you need any assistance, email us at [email protected]

Thanks,

Emmanuel
Classic Carbs UK
