Carburettor parts list in below table — click on available parts to view them or order them in the shop.

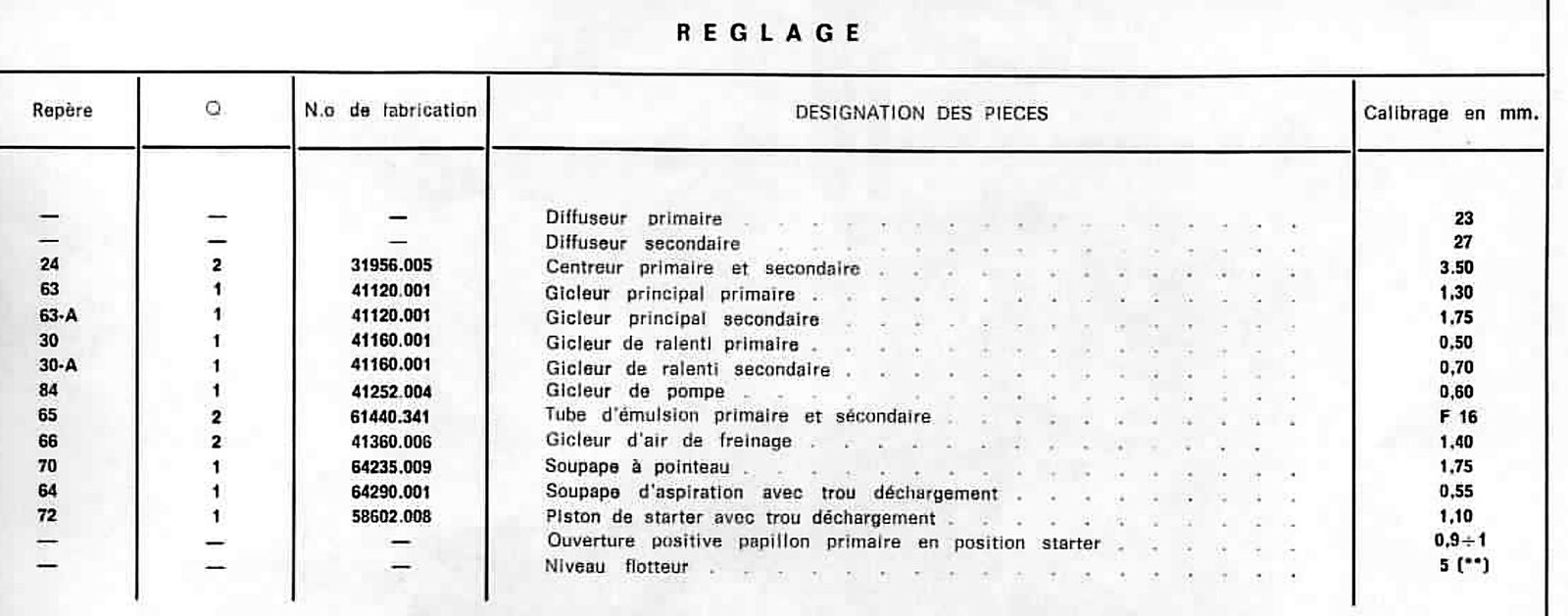

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.057 | Carburettor cover (top) | not available |
| 2 | 64700.005 | Cover fixing screw (now 64695.005) | £3.74 |
| 3 | 55530.005 | WEBER CARBURETTOR WAVE / CURVED Locking WASHER | £5.10 |
| 4 | 10015.207 | Choke (starter) valve spindle | not available |
| 5 | 47605.006 | Choke valve spring | £4.17 |
| 6 | 64570.007 | Choke valve fixing screw | not available |
| 7 | 64610.002 | Choke butterfly valve | not available |
| 8 | 55510.002 | Choke Lever Mounting Washer | £1.23 |
| 9 | 64700.012 | WEBER ICT RETURN SPRING BRACKET SCREW (now 64695022) | £2.90 |
| 10 | 45202.023 | Choke control lever assembly | not available |
| 11 | 45202.022 | Control lever | not available |
| 12 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 13 | 47610.003 | WEBER carburettor Choke Lever Return Spring | £4.17 |
| 14 | 58702.001 | Cable sheath bracket assembly | not available |
| 15 | 58700.003 | Cable sheath bracket | not available |
| 16 | 52145.001 | CHOKE CABLE ANCHOR BRACKET SECURING CLIP CLASP | £3.65 |
| 17 | 64615.007 | Clamp plate screw | not available |
| 18 | 64700.012 | WEBER ICT RETURN SPRING BRACKET SCREW (now 64695022) | £2.90 |
| 19 | 41705.022 | Carburettor cover gasket | not available |
| 20 | 10400.012 | Pump control rod | not available |
| 21 | 52140.007 | WEBER CARBURETTOR PUMP ROD SPRING RETAINER PLATE | £4.12 |
| 22 | 47600.029 | Pump piston spring | not available |
| 23 | 58602.009 | Pump plunger for Weber DLE 28/36 Carburettor | New Old Stock | £18.11 |
| 24 | 31956.005 | Primary and secondary auxiliary venturi (calibrated part, size varies) | not available |
| 25 | 61280.035 | Fast idle rod | not available |
| 26 | 12775.008 | Link rod bush | not available |
| 27 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 28 | 47670.003 | Link rod spring | not available |
| 29 | 52570.003 | WEBER DLEA / DRT / DCZ / DMA CARBURETTOR IDLE JET HOLDER | £9.86 |
| 30 | 41160.001 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 30A | 41160.001 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 31 | 64585.005 | Throttle adjusting screw | not available |
| 32 | 34720.004 | Adjusting screw locknut | not available |
| 33 | 61015.004 | Idle hole inspection screw | not available |
| 34 | 10000.448 | Primary throttle spindle | not available |
| 34 | 10001.448 | Primary throttle spindle, oversize repair | not available |
| 35 | 45129.005 | Primary stop sector | not available |
| 36 | 12775.027 | Fast idle lever bush | not available |
| 37 | 45027.019 | Fast idle control lever | not available |
| 38 | 55530.002 | WEBER CARBURETTOR WASHER | £1.53 |
| 39 | 55555.016 | Throttle shaft shim | £1.66 |
| 40 | 45089.004 | Throttle control lever | not available |
| 41 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 42 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 43 | 32610.006 | WEBER CARBURETTOR SPLIT PIN (now 32610.005) | £0.91 |
| 44 | 55510.056 | Link rod washer | not available |
| 45 | 64005.094 | Primary throttle butterfly | not available |
| 46 | 64520.023 | WEBER DGV / DGAV / DGEV / IDA3C CARBURETTOR THROTTLE VALVE / BUTTERFLY SCREW (now S57392032) | £2.26 |
| 47 | 47610.068 | Primary spindle return spring | not available |
| 48 | 61280.022 | Connecting link rod | not available |
| 49 | 10015.451 | Secondary throttle spindle | not available |
| 49 | 10016.429 | Secondary throttle spindle, oversize repair | not available |
| 50 | 64005.095 | Secondary throttle butterfly | not available |
| 51 | 47610.003 | WEBER carburettor Choke Lever Return Spring | £4.17 |
| 52 | 64750.012 | Adjusting screw | not available |
| 53 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 54 | — | Carburettor body (not supplied) | not available |
| 55 | 61015.009 | WEBER DCOE / IDA & IDA3C CARBURETTOR PROGRESSION HOLE COVER SCREW | £6.68 |
| 56 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 57 | 14850.017 | Pump control cam | not available |
| 58 | 10140.301 | Circlip | not available |
| 59 | 34720.009 | Cam fixing nut | not available |
| 60 | 45136.043 | Control lever | not available |
| 61 | 12750.010 | Spacer bush | not available |
| 62 | 45067.004 | Free pump control lever | not available |
| 63 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 63A | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 64 | 64290.001 | Pump inlet and delivery valve (calibrated part, size varies) | not available |
| 65 | 61440.341 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 66 | 41360.006 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 67 | 41015.010 | Float | not available |
| 68 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 69 | 47620.003 | Needle valve hook | not available |
| 70 | 64235.009 | Needle valve (calibrated part, size varies) | not available |
| 71 | 41535.015 | WEBER CARBURETTOR NEEDLE VALVE WASHER (now 83102.070) | £1.02 |
| 72 | 58602.008 | Choke (starter) piston (calibrated part, size varies) | not available |
| 73 | 55510.009 | Lever spindle washer | not available |
| 74 | 64570.009 | WEBER CARBURETTOR COVER PLATE SCREW | £3.04 |
| 75 | 52135.011 | Plate | not available |
| 76 | 41640.034 | Plate gasket | not available |
| 77 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 78 | 55510.046 | Choke spindle washer | not available |
| 79 | 52000.004 | Washer pivot | not available |
| 80 | 45027.024 | Choke piston lever | not available |
| 81 | 61002.013 | Filter inspection plug | not available |
| 82 | 61060.001 | Filter gauze plug | not available |
| 83 | 37020.002 | WEBER CARBURETTOR INTERNAL FUEL STRAINER / FUEL FILTER (now 37022.010) | £4.49 |
| 84 | 41252.004 | Pump jet (calibrated part, size varies) | not available |
| 85 | 64290.005 | WEBER CARBURETTOR PUMP JET DEMAND VALVE | £18.23 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

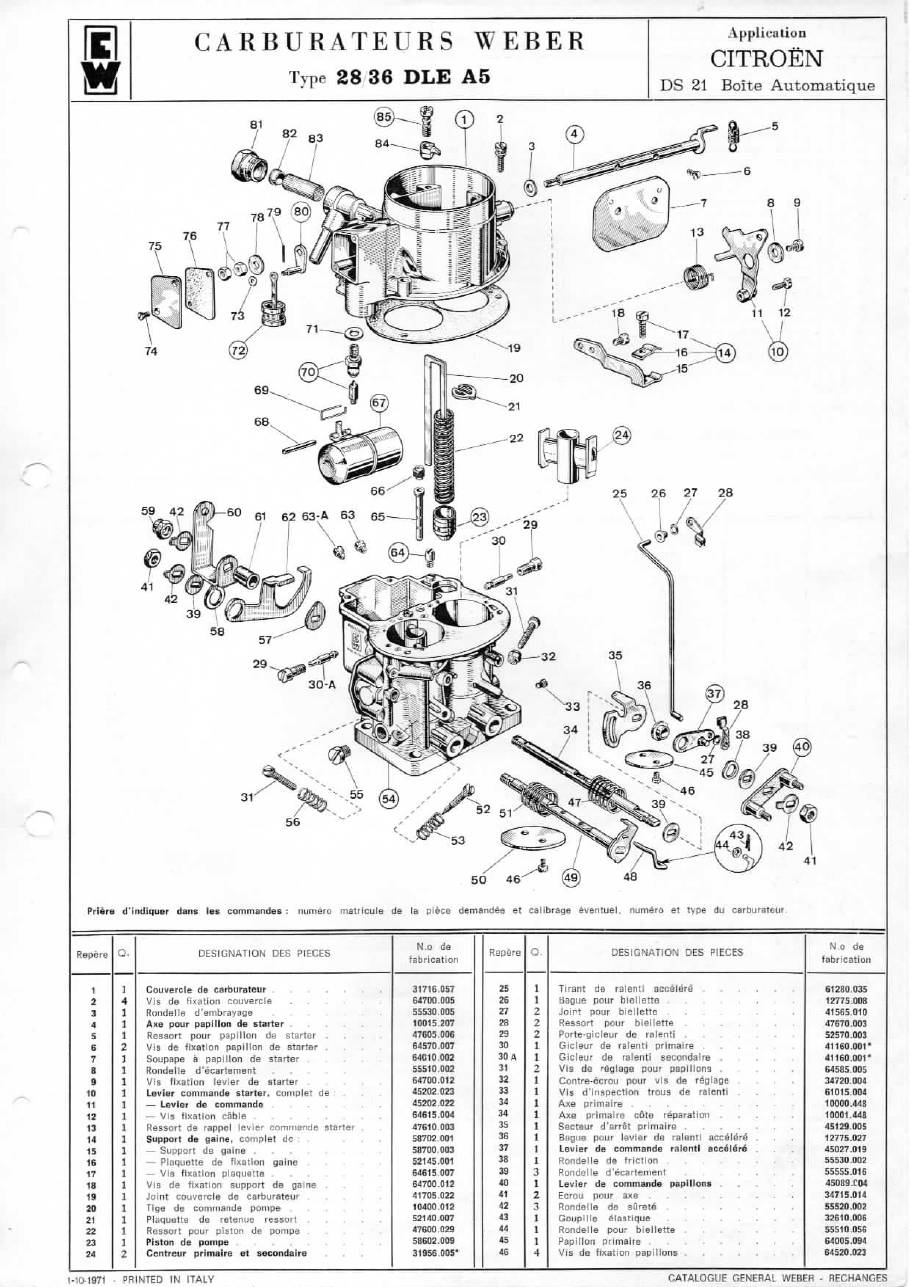

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
