Description
Parts on this drawing
Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 32/36 DGAV Service Kit — £33.72
Original factory settings for this carburettor

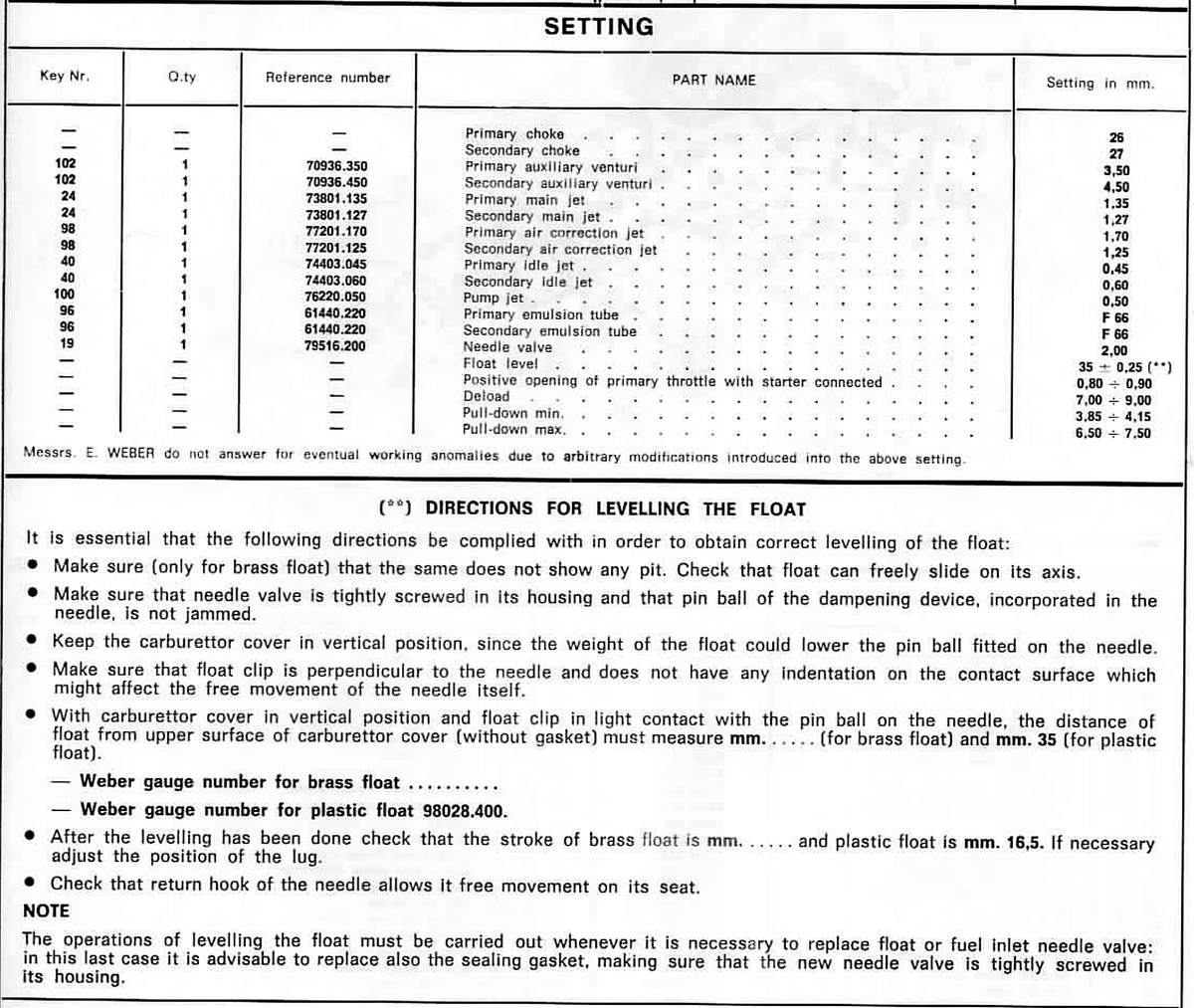

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item |
Weber no. |
Part |
Price |
| 1 |
73801.135 |
WEBER CARBURETTOR MAIN JET |
£2.69 |
| 1 |
73801.127 |
WEBER CARBURETTOR MAIN JET |
£2.69 |
| 2 |
12750.085 |
WEBER Carburettor throttle spindle / shaft bush |
£3.06 |
| 2 |
47600.027 |
WEBER CARBURETTOR MAIN SHAFT RETAINING SPRING |
£3.75 |
| 3 |
64005.034 |
WEBER DGAV, DGV, DFAV, DFV, DFEV Carburettor Throttle Valve / Butterfly 78°36 mm |
£17.16 |
| 4 |
10015.492 |
1001549200 WEBER 32 DGR & 32/36 DGV / DGAV Carburettor Secondary Throttle shaft spindle |
£33.27 |
| 5 |
10015.493 |
WEBER DGAV / DGV & DGEV carburettor Primary spindle throttle shaft |
£34.79 |
| 6 |
64005.090 |
WEBER 32/36 DGV / DGAV CARBURETTOR PRIMARY THROTTLE VALVE / BUTTERFLY 32mm |
£18.67 |
| 7 |
64520.023 |
WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW |
£1.3 |
| 8 |
47610.079 |
Power valve fixing screw . . . 64700.007 32 1 Shaft return spring. |
not available |
| 9 |
12765.047 |
Washer |
not available |
| 10 |
32486.037 |
WEBER DGAV, DGV, DGR, DGEV, DGAS, DGMS, DGES CARBURETTOR PUMP COVER (now 32486.076) |
£28.69 |
| 11 |
64700.006 |
Choke shaft lock ring . 10140.506 35 4 Pump cover fixing screw |
not available |
| 12 |
47407.048 |
WEBER CARBURETTOR PUMP DIAPHRAGM (now 47407.249) |
£24.78 |
| 13 |
47600.092 |
WEBER CARBURETTOR PUMP DIAPHRAGM SPRING |
£9.05 |
| 14 |
52570.006 |
WEBER IDLE JET HOLDER |
£6.85 |
| 15 |
41565.002 |
WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) |
£2.13 |
| 16 |
74403.045 |
WEBER CARBURETTOR IDLE JET |
£3.21 |
| 17 |
74403.060 |
WEBER CARBURETTOR IDLE JET |
£3.21 |
| 18 |
57804.133 |
WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN |
£47.95 |
| 19 |
10085.045 |
Needle valve. a fe 79516.200 * 41 1 Choke shaft |
not available |
| 20 |
52130.012 |
Float ee Om 41030.020 42 1 Choke shaft bearing plate |
not available |
| 21 |
64235.016 |
WEBER CARBURETTOR POWER VALVE |
£37.03 |
| 22 |
41530.013 |
Full power valve gasket |
not available |
| 23 |
47600.141 |
WEBER CARBURETTOR PUMP DIAPHRAGM SPRING |
£3.75 |
| 24 |
32384.020 |
Diaphragm cover |
not available |
| 25 |
64700.007 |
Diaphragm cover fixing screw |
not available |
| 26 |
61015.003 |
Screw |
not available |
| 27 |
64595.005 |
WEBER CARBURETTOR ADJUSTING GRUB SCREW |
£5.91 |
| 28 |
55510.003 |
Washer for free lever |
not available |
| 29 |
12765.042 |
Bush for free lever |
not available |
| 30 |
64700.014 |
FREE LEVER FIXING SCREW FOR WEBER 38 DGAS (now 6469502300) |
£2.16 |
| 31 |
55530.005 |
WEBER CARBURETTOR WAVE / CURVED Locking WASHER |
£5.10 |
| 32 |
45041.053 |
WEBER DGAV / DGEV Carburettor Fast Idle Loose Lever Kit |
£38.49 |
| 33 |
47600.007 |
WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING |
£1.51 |
| 34 |
64590.004 |
Screw |
not available |
| 35 |
41565.008 |
WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL |
£2.13 |
| 36 |
34715.016 |
Choke shaft fixing |
not available |
| 37 |
55525.003 |
Washer spring |
not available |
| 38 |
45034.099 |
Choke plate operation lever |
not available |
| 39 |
47610.080 |
Fast idle cam spring |
not available |
| 40 |
58000.018 |
Cover retaining spring |
not available |
| 41 |
55555.029 |
Shaft washer |
not available |
| 42 |
64700.008 |
WEBER carburettor Top cover / Auto-Choke Body / Anti-Flood | Screw |
£4.06 |
| 43 |
64615.005 |
Plate fixing screw |
not available |
| 44 |
41530.002 |
WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 |
£0.84 |
| 45 |
64610.014 |
WEBER DGAS / DGAV / DARA / DATRA CARBURETTOR AUTO-CHOKE / WATER HOUSING SCREW |
£4.74 |
| 46 |
— |
Auto-choke water cover |
not available |
| 47 |
41555.001 |
WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET |
£3.36 |
| 48 |
52135.006 |
52135.006 WEBER DGAV / DGAS / DFAV / DCA / DAR Carburettor Choke housing retaining ring |
£12.72 |
| 49 |
57804.138 |
WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN |
£47.95 |
| 50 |
41640.005 |
Heat sealing gasket |
not available |
| 51 |
32610.005 |
WEBER CARBURETTOR SPLIT PIN |
£0.91 |
| 52 |
61280.082 |
WEBER DGAV / DGEV / DGES / DGAS / DGMS CARBURETTOR CHOKE CONTROL ROD |
£19.46 |
| 53 |
41565.010 |
WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) |
£5.64 |
| 54 |
64750.051 |
WEBER CARBURETTOR INTERNAL MIXTURE SCREW |
£8.77 |
| 55 |
61075.013 |
WEBER CARBURETTOR GALLERY / CORE PLUG / PROGRESSION PLUG |
£5.08 |
| 56 |
45136.029 |
WEBER DGV, DGAV, DGMS, DGAS, ICH, DFE, DFM, OEM Ford Carburettor throttle Lever |
£7.53 |
| 57 |
55510.061 |
WEBER DIC / DFE-DFM / DGV / DFAV / DARA / DGAV / DAF / DIR Etc.. |
£1.66 |
| 58 |
12765.002 |
Bush for free lever |
not available |
| 59 |
45046.016 |
Primary Throttle Control Lever 32/36 DGAV |
£16.94 |
| 60 |
64595.005 |
WEBER CARBURETTOR ADJUSTING GRUB SCREW |
£5.91 |
| 61 |
61075.013 |
WEBER CARBURETTOR GALLERY / CORE PLUG / PROGRESSION PLUG |
£5.08 |
| 62 |
64595.016 |
Screw adjusting throttle primary |
not available |
| 63 |
34715.014 |
WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm |
£1.04 |
| 64 |
55520.002 |
WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER |
£0.84 |
| 65 |
47605.010 |
WEBER DGV / DFV / DFAV / DGAV / DGR / DMS / DIF CARBURETTOR THROTTLE RETURN SPRING |
£4.17 |
| 66 |
45069.011 |
PRIMARY SPINDLE LOOSE LEVER ASSEMBLY TO FIT THE WEBER 28/30 DGV | 35 DG | 32 DGV | 32/36 DGV | 32/36 DGAV CARBURETTOR |
£14.19 |
| 67 |
34705.004 |
WEBER CARBURETTOR TRUMPET STUD NUT (SLIM TYPE) (now 99901.165S) |
£0.57 |
| 68 |
55525.001 |
WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer |
£1.04 |
| 69 |
55510.046 |
Washer |
not available |
| 70 |
45032.124 |
Lever control throttle secondary |
£6.76 |
| 71 |
— |
Carburetor body. . . . . . Not supplied |
not available |
| 72 |
64750.045 |
Idle by-pass adjusting screw |
not available |
| 73 |
41565.001 |
WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) |
£6.20 |
| 74 |
61440.220 |
WEBER CARBURETTOR EMULSION TUBE |
£17 |
| 75 |
61440.220 |
WEBER CARBURETTOR EMULSION TUBE |
£17 |
| 76 |
52000.015 |
WEBER CARBURETTOR FUEL FLOAT PIN |
£1.51 |
| 77 |
77201.170 |
WEBER CARBURETTOR AIR CORRECTOR JET |
£3.04 |
| 78 |
77201.125 |
WEBER CARBURETTOR AIR CORRECTOR JET |
£3.04 |
| 79 |
41530.012 |
WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) |
£1.60 |
| 80 |
76220.050 |
WEBER DGV, DGEV & DGAV CARBURETTOR PUMP JET |
£15.44 |
| 81 |
64290.017 |
WEBER DGAV / DGR / DGEV / DGV CARBURETTOR PUMP DEMAND VALVE (now 64290.024) |
£18.23 |
| 82 |
70936.350 |
Primary auxiliary venturi |
not available |
| 83 |
70936.450 |
WEBER DGV, DGAV & DGEV CARBURETTOR AUXILIARY VENTURI | SIZE 4.5 |
£38.37 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

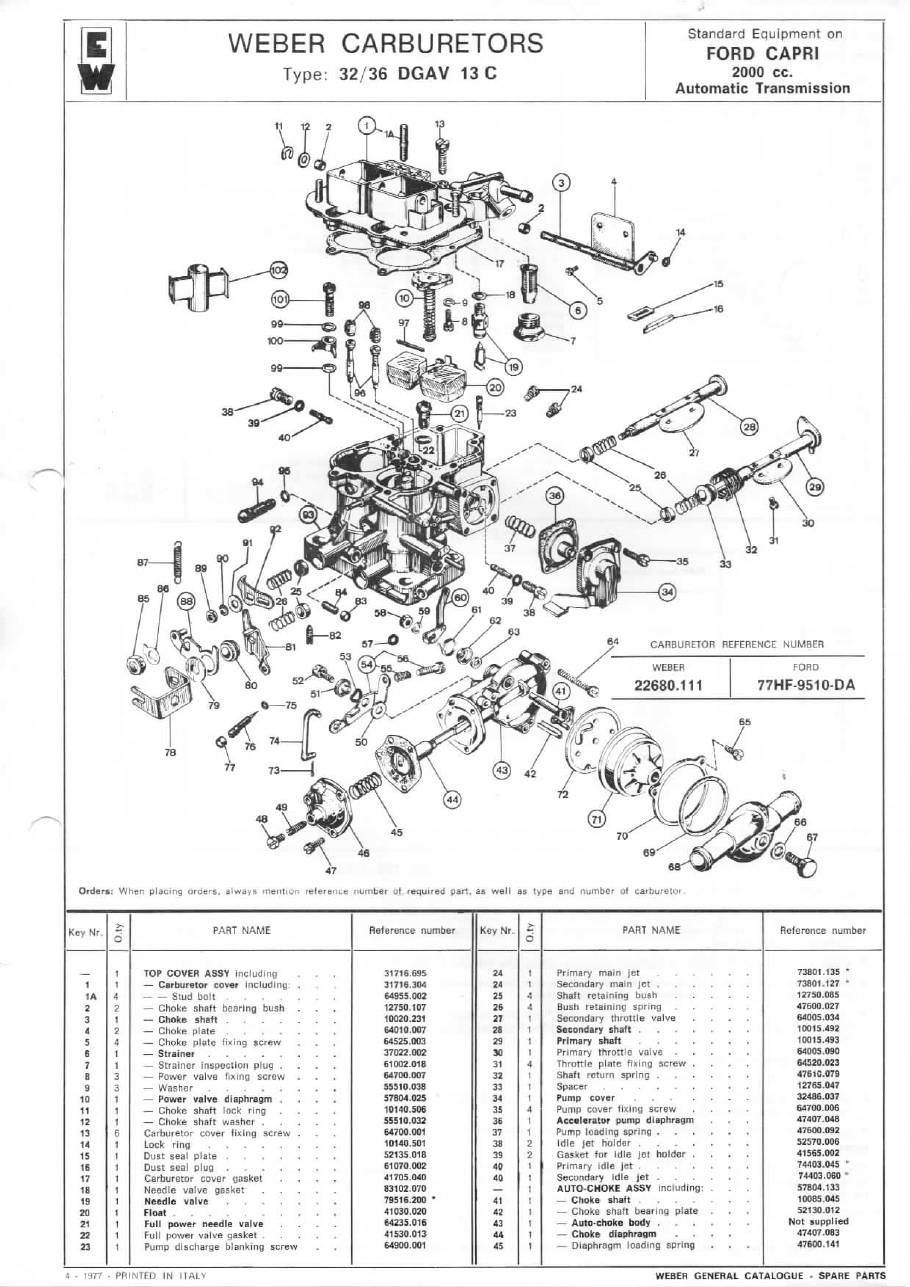

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
