Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 32/36 DGAV Service Kit — £33.72

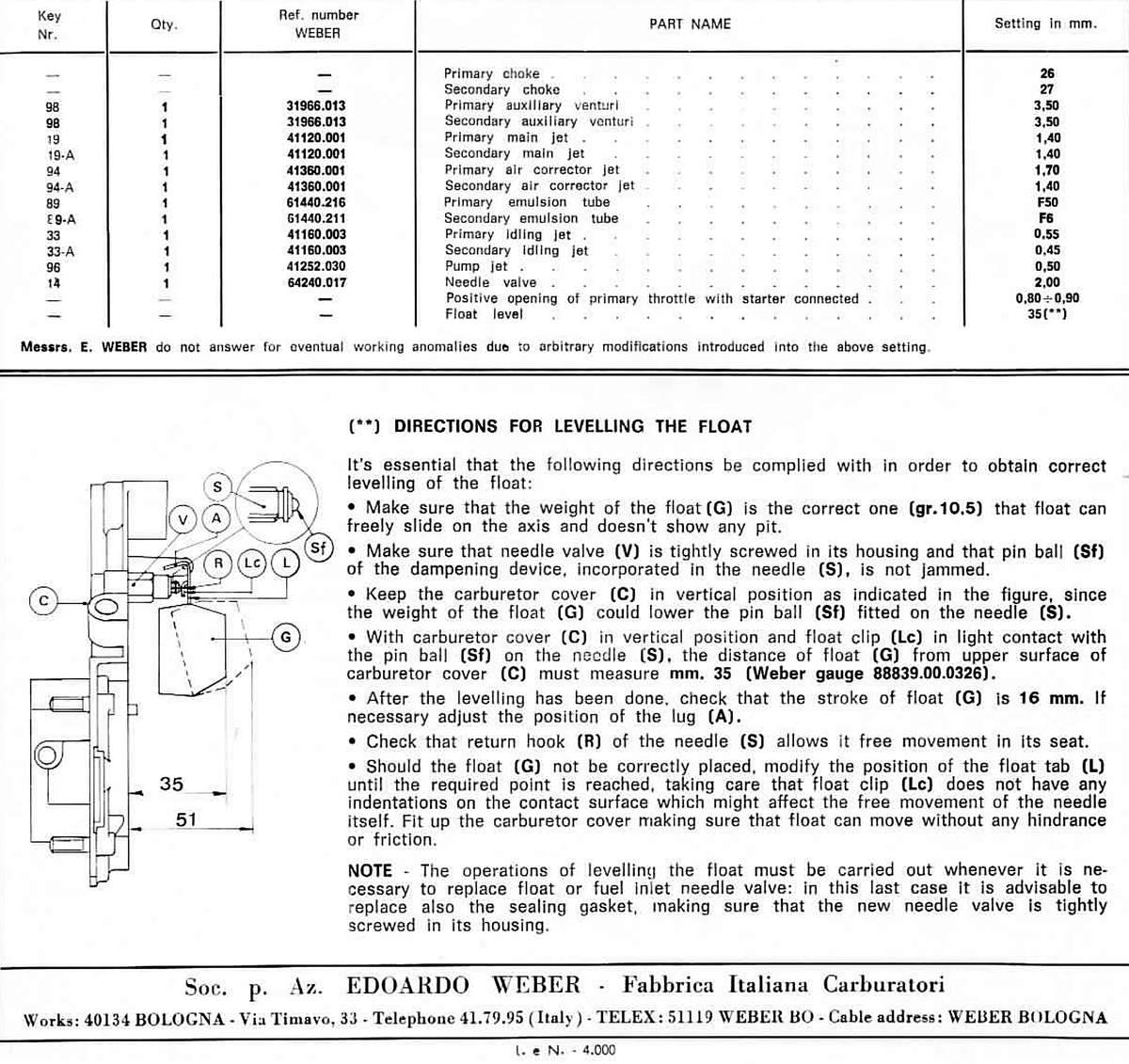

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.165 | Carburetor cover Assy, including: | not available |
| 2 | 64955.111 | 4]—Stud bolt . . , | not available |
| 3 | 64700.001 | WEBER CARBURETTOR TOP COVER SCREW | M5 x 22mm (now 64695.021W) | £2.10 |
| 4 | 10020.221 | Choke Shaft DGV / DGAV (now 1002022200) | £35.92 |
| 5 | 64010.007 | WEBER CARBURETTOR CHOKE FLAP | £15.56 |
| 6 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 7 | 52135.018 | WEBER CARBURETTOR CHOKE FLAP LEVER DUST COVER | £4.17 |
| 8 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 9 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 10 | 37022.003 | Strainer | not available |
| 11 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 12 | 41705.035 | Carb. cover gasket | not available |
| 13 | 41535.015 | WEBER CARBURETTOR NEEDLE VALVE WASHER (now 83102.070) | £1.02 |
| 14 | 64240.017 | WEBER CARBURETTOR NEEDLE VALVE (now 79507) | £16.16 |
| 15 | 41030.020 | Float | not available |
| 16 | 64235.016 | WEBER CARBURETTOR POWER VALVE | £37.03 |
| 17 | 41530.013 | Power valve gasket | not available |
| 18 | 64900.001 | WEBER CARBURETTOR PUMP DISCHARGE BLANKING NEEDLE. | £4.46 |
| 19 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 20 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 20 | 12750.085 | WEBER Carburettor throttle spindle / shaft bush | £3.06 |
| 21 | 47600.027 | WEBER CARBURETTOR MAIN SHAFT RETAINING SPRING | £3.75 |
| 22 | 64005.034 | Valve throttle secondary | £17.16 |
| 23 | 10015.492 | 1001549200 WEBER 32 DGR & 32/36 DGV / DGAV Carburettor Secondary Throttle shaft spindle | £33.27 |
| 24 | 10016.477 | Secondary shaft Assy oversize | not available |
| 24 | 10015.493 | WEBER DGAV / DGV & DGEV carburettor Primary spindle throttle shaft | £34.79 |
| 25 | 10016.476 | Primary shaft Assy oversize | not available |
| 25 | 64005.090 | Valve throttle primary | £18.67 |
| 26 | 64520.023 | WEBER DGV / DGAV / DGEV / IDA3C CARBURETTOR THROTTLE VALVE / BUTTERFLY SCREW (now S57392032) | £2.26 |
| 27 | 47610.079 | Shaft return spring | not available |
| 28 | 12765.047 | Spacer | not available |
| 29 | 32486.037 | WEBER DGAV, DGV, DGR, DGEV, DGAS, DGMS, DGES CARBURETTOR PUMP COVER (now 32486.076) | £28.69 |
| 30 | 64700.006 | Screw fixing cover pump | not available |
| 31 | 47407.048 | WEBER CARBURETTOR PUMP DIAPHRAGM (now 47407.249) | £24.78 |
| 32 | 47600.082 | Spring loading pump | not available |
| 33 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 34 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 34 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 35 | 52570.006 | WEBER IDLE JET HOLDER | £6.85 |
| 36 | 45034.090 | Lever control choke | not available |
| 37 | 47610.080 | Spring | not available |
| 38 | 58000.018 | Cover retaining spring | not available |
| 39 | 55555.029 | Washer for sheft | not available |
| 40 | 64700.008 | WEBER carburettor Top cover / Auto-Choke Body / Anti-Flood | Screw | £4.06 |
| 41 | 10085.033 | Auto-choke shaft & lever | not available |
| 42 | 64615.005 | Plate screw | not available |
| 43 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 44 | 64610.006 | Water cover fixing screw | not available |
| 45 | 32444.005 | WEBER DGAS / DGAV CARBURETTOR AUTO-CHOKE / WATER HOUSING | £36.70 |
| 46 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 47 | 52135.006 | Thermostat assy locking | not available |
| 48 | 57804.079 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 49 | 41640.005 | Gasket | not available |
| 50 | 52130.012 | Plate for choke shaft | not available |
| 51 | 57804.074 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 52 | 47407.056 | WEBER DGAV & DGAS CARBURETTOR CHOKE PULL-OFF DIAPHRAGM (now 47407.093) | £36.87 |
| 53 | 47600.141 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £3.75 |
| 54 | 32384.020 | Auto-choke cover | not available |
| 55 | — | Auto-choke cover fixing screw | not available |
| 56 | 61015.003 | 1 |Screw plug | not available |
| 57 | 64595.005 | Diaphragm adjusting screw | not available |
| 58 | 64750.025 | WEBER DGAV, DGV & DGR IDLE MIXTURE SCREW | £8.77 |
| 59 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 60 | 32610.005 | WEBER CARBURETTOR SPLIT PIN | £0.91 |
| 61 | 61280.082 | WEBER DGAV / DGEV / DGES / DGAS / DGMS CARBURETTOR CHOKE CONTROL ROD | £19.46 |
| 62 | 55510.003 | Washer for loose lever | not available |
| 63 | 45041.053 | Fast idling loose lever | not available |
| 64 | 45039.056 | Lever | not available |
| 65 | 64590.004 | Screw | not available |
| 66 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 67 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 68 | 55525.003 | Washer spring | not available |
| 69 | 34715.016 | Throttle shaft fixing | not available |
| 70 | 64625.017 | Screw adjusting throttle primary | not available |
| 71 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 72 | 64595.005 | Screw adjusting throttle secondary | not available |
| 73 | 55530.005 | WEBER CARBURETTOR WAVE / CURVED Locking WASHER | £5.10 |
| 74 | 12765.042 | Bushing for loose lever | not available |
| 75 | 64700.014 | Loose lever fixing screw | not available |
| 76 | 45046.016 | Lever contro! throttle primary | not available |
| 77 | 12765.002 | Bushing for loose fever | not available |
| 78 | 55510.061 | WEBER DIC / DFE-DFM / DGV / DFAV / DARA / DGAV / DAF / DIR Etc.. | £1.66 |
| 79 | 45136.029 | WEBER DGV, DGAV, DGMS, DGAS, ICH, DFE, DFM, OEM Ford Carburettor throttle Lever | £7.53 |
| 80 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 81 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 82 | 45069.011 | Loose lever | not available |
| 83 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 85 | 55510.046 | Washer for loose lever | not available |
| 86 | 45032.124 | Lever control throttle secondary | £6.76 |
| 87 | 47605.010 | WEBER DGV / DFV / DFAV / DGAV / DGR / DMS / DIF CARBURETTOR THROTTLE RETURN SPRING | £4.17 |
| 89 | 61440.216 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 90 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 91 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 92 | 64700.007 | Power valve retaining screw | not available |
| 92 | 55510.038 | Screw valve power for washer | not available |
| 93 | 57804.097 | WEBER DGAS / DGMS / DGV / DGAV / DGEV CARBURETTOR POWER VALVE DIAPHRAGM | £40.97 |
| 94 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 95 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 95 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 96 | 41252.030 | WEBER DGV / DGAV PUMP JET (now 76226) | £15.45 |
| 97 | 64290.017 | WEBER DGAV / DGR / DGEV / DGV CARBURETTOR PUMP DEMAND VALVE (now 64290.024) | £18.23 |
| 98 | 31966.013 | Auxiliary Venturi | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

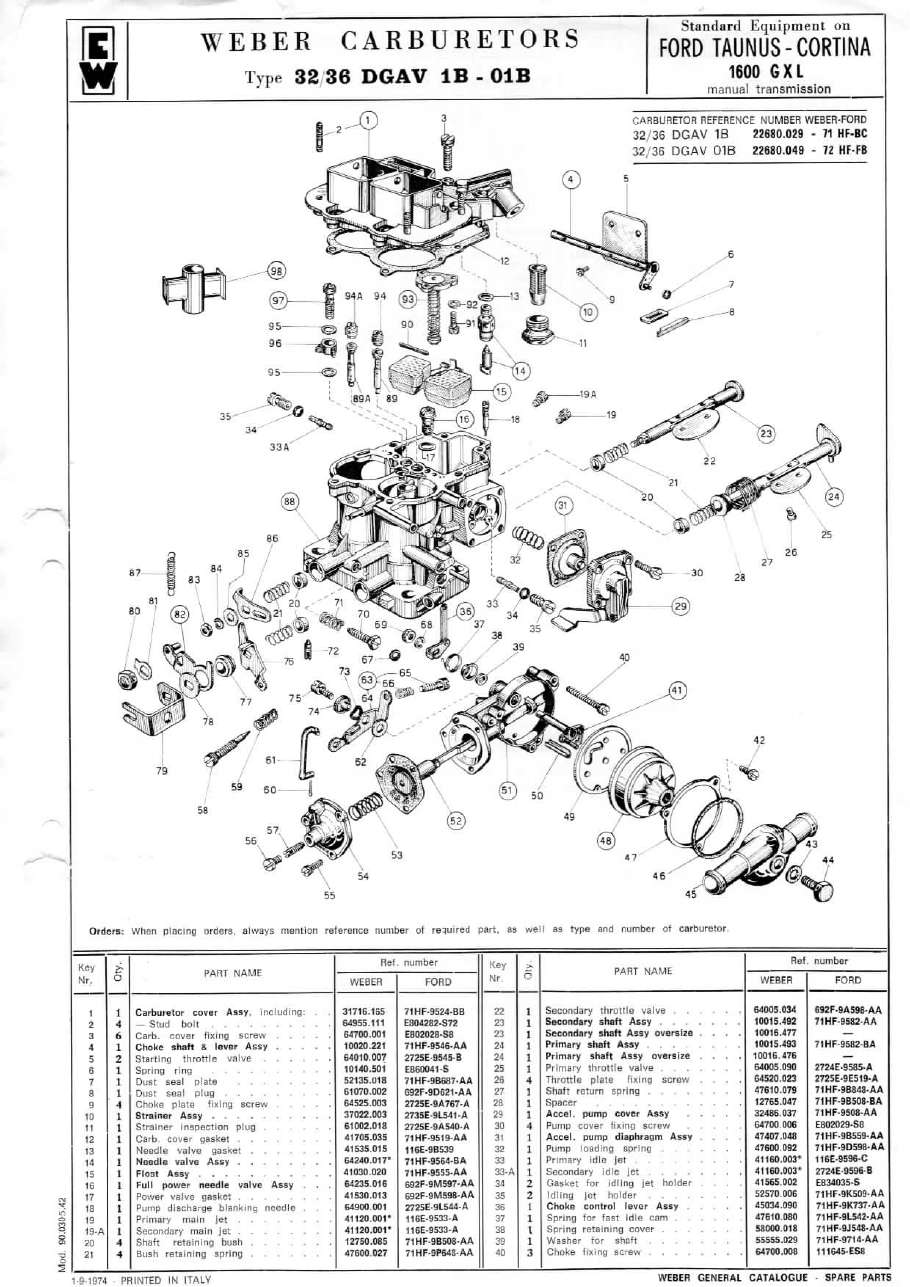

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
