Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 32DARA Service Kit — £26.65 — the kit number printed on this sheet
Original factory jetting: item 13 — 1.30. These are the sizes this carburettor left the factory with.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.377 | Coperchi | not available |
| 2 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 3 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 4 | 45138.005 | Idle idle speed adjusting lever 1 22 10020.233 choke spindle | not available |
| 5 | 64625.009 | Farfalle avvi to 64525.003 23 1 vite di registro fixing screw | not available |
| 6 | 47600.073 | Adjusting screw spring 1 24 41705.026 carburettor cover gasket | not available |
| 7 | 10015.546 | Riparo polvere 52135.035 25 1 alberino principal dario plate | not available |
| 8 | 47610.127 | Loose lever spring 79507.200* apiiio valve | £8.48 |
| 9 | 45069.044 | Centratore primario 71120.350° 27 1 Leva ailentat | not available |
| 10 | 12765.084 | dari 71113.400° 28 1 Boccola per leva allentata | not available |
| 10 | 12750.097 | Valvola mandeta pompe 64290.015 29 1 Distanziale per leve | not available |
| 11 | 47610.146 | Primary spindle return spring 1 30 61440.154" primary emulsion tube | not available |
| 12 | 55555.016 | Throttle shaft shim | £1.66 |
| 12 | 39166.011 | Getto pompa 76227.060° 32 1 Flangia di riscaidamento | not available |
| 13 | 64700.001 | WEBER CARBURETTOR TOP COVER SCREW | M5 x 22mm (now 64695.021W) | £2.10 |
| 14 | 61292.001 | Getto principale secondario 73801.132* 4 1 Tirantino per glunto sferi | not available |
| 14 | 45048.065 | Vite bioccaggio intercettatore 64600.001 35 1 Leva do farfalle | not available |
| 15 | 45041.175 | Getto pompa 41530.012 36 1 leva cambio automatico gasket | not available |
| 16 | 55525.004 | Primary spindle nut spring washer 1 37 41565.002 secondary idle jet holder gasket | not available |
| 17 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 18 | 57804.300 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 19 | 47605.015 | Unloader lever spring | not available |
| 20 | 64595.018 | Adjusting screw | not available |
| 21 | 34715.018 | Nut M5 fine thread | £1.49 |
| 22 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 23 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 24 | 64595.020 | Diaphragm adjusting screw | not available |
| 25 | 32384.039 | Diaphragm cover | £24.46 |
| 26 | 47600.149 | Diaphragm spring | not available |
| 27 | 47407.160 | Diaphragm Choke WEBER DARA | £30.82 |
| 28 | — | Gruppo dispositivo avviamento autom. | not available |
| 29 | 57804.300 | Choke device | £47.95 |
| 30 | 64615.001 | Screw – Choke Cover for WEBER DFTH (now 6461001800) | £2.90 |
| 31 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 32 | 32446.002 | Heating water cover | not available |
| 33 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 34 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 35 | 52135.029 | Choke Retaining Plate ring | £7.01 |
| 36 | 57804.194 | Thermostatic coil housing | £43.40 |
| 37 | 41640.055 | Heat insulating gasket | not available |
| 38 | 64700.020 | Choke fixing screw | not available |
| 39 | 64700.023 | Choke device fixing screw | not available |
| 40 | 55510.038 | WEBER Carburettor Choke Housing & Power Valve Mounting Screw Washer | M4 | £1.66 |
| 41 | 61075.011 | WEBER CARBURETTOR GALLERY / CORE PLUG / PROGRESSION PLUG | £5.08 |
| 42 | 39152.014 | Flange Gasket 32 DARA | £22.34 |
| 43 | 55526.003 | Stud screw spring washer | not available |
| 44 | 64750.071 | Idle mixture screw | not available |
| 45 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 46 | 61075.021 | Plug | £3.13 |
| 47 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 48 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 49 | 47407.131 | WEBER CARBURETTOR PUMP DIAPHRAGM | £28.00 |
| 50 | 32486.078 | Cover | not available |
| 51 | 64565.001 | Pump cover fixing screw | £1.82 |
| 52 | 43911.060 | Idle ttatore int | not available |
| 53 | — | Gasket | not available |
| 54 | 74409.060 | WEBER CARBURETTOR IDLE JET | £3.28 |
| 55 | 64005.090 | Throttle plate | £18.67 |
| 56 | 10015.530 | Primary throttle spindle | not available |
| 57 | 10016.497 | Oversize primary main | not available |
| 58 | 64610.007 | Cover fiss esagono stud screw | not available |
| 59 | 47600.244 | Power full valve spring | not available |
| 60 | 47407.182 | Power valvols | not available |
| 61 | 32384.046 | FULL POWER COVER | WEBER ICH & DFT CARBURETTORS | £24.46 |
| 62 | 64565.002 | Power full valve cover fixing screw | not available |
| 63 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 64 | 45027.125 | Leva do alberino avviam | not available |
| 65 | — | Float pivot pemo | not available |
| 66 | 41015.004 | Float | not available |
| 67 | 77201.155 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 68 | 77201.145 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 69 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 70 | 83102.070 | WEBER CARBURETTOR NEEDLE VALVE WASHER | £1.02 |
| 71 | 12750.107 | Choke spindle support bush | not available |
| 72 | 55530.008 | Choke spindle spring washer | £3.05 |
| 73 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 74 | 61002.019 | WEBER PLUG INTAKE FILTER COVER | £5.57 |
| 75 | 37022.004 | Internal fuel filter for Weber ADF & DRT Carburettors | £8.07 |
| 76 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 77 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 78 | 31800.044 | Fast idle capsule | not available |
| 79 | 64700.011 | Fast idle capsule fixing screw | not available |
| 80 | 32610.003 | Link rod split pin | £0.91 |
| 81 | 55510.056 | Link rod washer | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

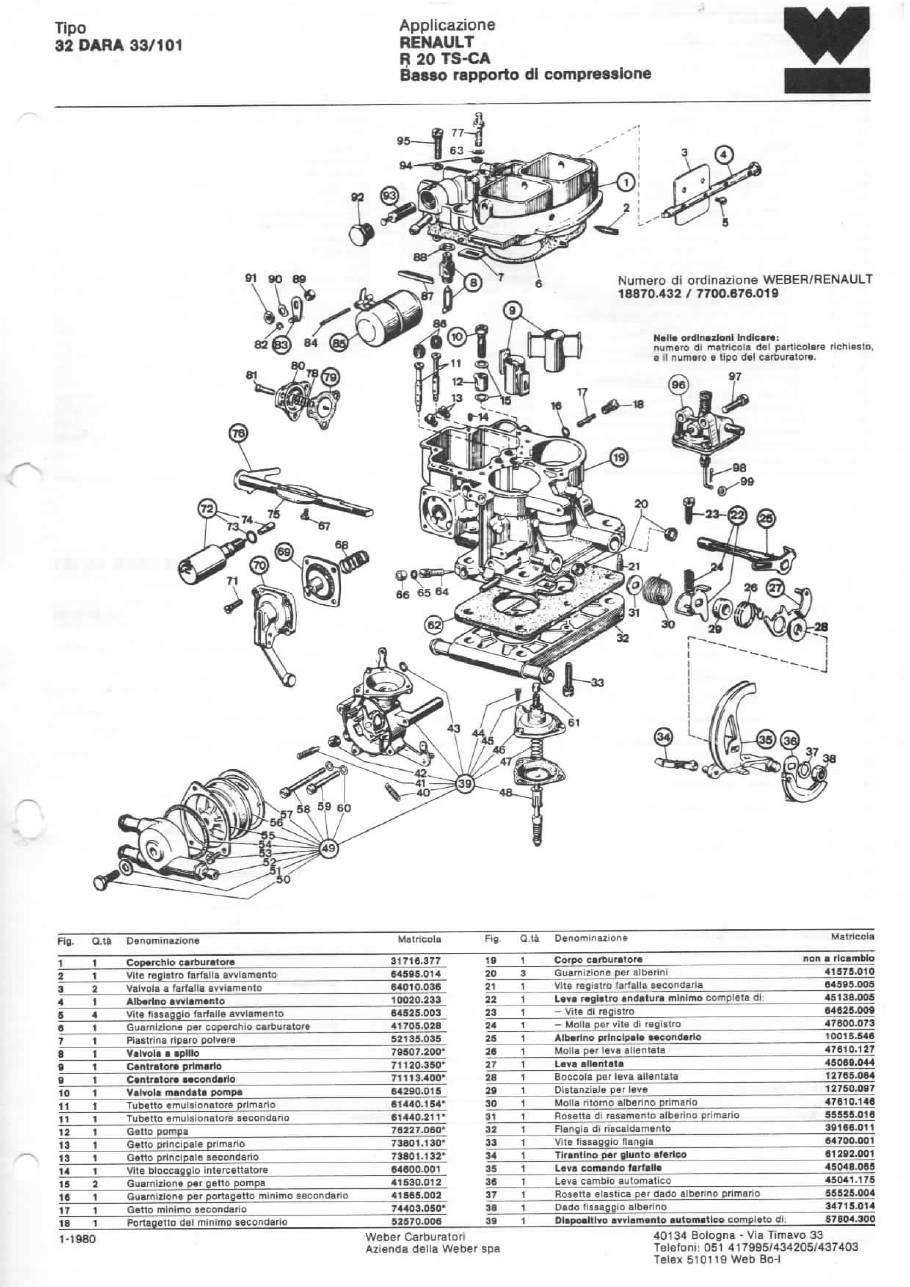

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
