Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 32DARA Service Kit — £22.44 — the kit number printed on this sheet
Original factory jetting: item 11 — 0.45, item 77 — 1.32. These are the sizes this carburettor left the factory with.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.445 | Carburettor cover | not available |
| 2 | 64010.048 | Choke butterfly valve | not available |
| 3 | 10020.233 | Choke spindle | not available |
| 4 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 5 | 64595.014 | Choke butterfly chiusura adjusting screw | not available |
| 6 | 41705.059 | Carburettor cover gasket | £6.16 |
| 7 | 71120.350 | Primary auxiliary venturi | £36.83 |
| 8 | 71113.400 | Centratore dario | not available |
| 8 | 76227.060 | Pump jet | not available |
| 9 | 64600.001 | WEBER CARBURETTOR GRUB SCREW M4 X 6MM | £5.85 |
| 10 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 11 | 74403.045 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 12 | 52570.006 | WEBER IDLE JET HOLDER | £6.85 |
| 13 | 47600.097 | Min. in derivazione adjusting screw spring | not available |
| 14 | 64585.022 | Bypass in idle adjusting screw | not available |
| 15 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 16 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 17 | 45138.039 | Idle speed adjusting lever 17_—=1 | not available |
| 18 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 19 | 64590.014 | Adjusting screw | not available |
| 20 | 61075.021 | Plug | £3.13 |
| 21 | 10015.537 | Secondary throttle spindle | not available |
| 22 | 45069.044 | Loose lever | not available |
| 23 | 12765.084 | Loose lever bush | not available |
| 24 | 47610.127 | Loose lever spring | £8.48 |
| 25 | 12750.097 | Spacer bush | not available |
| 26 | 47610.165 | Primary spindle return spring | not available |
| 27 | 55555.016 | Throttle shaft shim | £1.66 |
| 28 | 39164.015 | Flangia di riscalaamento | not available |
| 29 | 64700.001 | Heating flangia fixing screw (now 64695.021W) | £2.10 |
| 30 | 61075.011 | WEBER CARBURETTOR GALLERY / CORE PLUG / PROGRESSION PLUG | £5.08 |
| 31 | 61292.001 | Tirante per giunto sferico | not available |
| 32 | 45048.065 | Valve control lever 32.01 | not available |
| 33 | 45041.175 | Cambio automatico control lever | not available |
| 34 | 55525.004 | Primary spindle nut spring washer | not available |
| 35 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 36 | 57804.429 | Choke device | £47.95 |
| 37 | 47407.160 | Diaphragm Choke WEBER DARA | £30.82 |
| 38 | 47600.227 | Diaphragm spring | not available |
| 39 | 32384.039 | Diaphragm cover | £24.46 |
| 40 | 64595.020 | Diaphragm adjusting screw | not available |
| 41 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 42 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 43 | 47600.228 | not available | |
| 44 | 34715.018 | Nut M5 fine thread | £1.49 |
| 45 | 64595.018 | Adjusting screw | not available |
| 46 | 47605.015 | Unloader lever spring | not available |
| 47 | 57804.445 | Choke device gruppo | £47.95 |
| 48 | 57804.429 | Choke device | £47.95 |
| 48 | 55510.038 | WEBER Carburettor Choke Housing & Power Valve Mounting Screw Washer | M4 | £1.66 |
| 49 | 64700.020 | Choke device fixing screw | not available |
| 50 | 64700.029 | Choke device fixing screw | not available |
| 51 | 41640.055 | Heat insulating gasket | not available |
| 52 | 57804.194 | Thermostatic coil housing | £43.40 |
| 53 | 52135.029 | Choke Retaining Plate ring | £7.01 |
| 54 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 55 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 56 | 32446.003 | Heating water cover | not available |
| 57 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 58 | 64610.018 | Screw – Choke Cover for WEBER DFTH | £2.90 |
| 59 | 39152.024 | Flangia isolant | not available |
| 60 | 64750.071 | Idle mixture screw | not available |
| 61 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 62 | 61075.021 | Plug | £3.13 |
| 63 | 64565.001 | Pump cover fixing screw | £1.82 |
| 64 | 32486.078 | Pump cover | not available |
| 65 | 47407.131 | WEBER CARBURETTOR PUMP DIAPHRAGM | £28.00 |
| 66 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 67 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 68 | 64005.090 | Valve | £18.67 |
| 69 | 43911.050 | Idle cut-off valve | not available |
| 70 | 41565.019 | WEBER ICT CARBURETTOR O-RING SEAL | £1.12 |
| 71 | 74409.050 | WEBER CARBURETTOR IDLE JET | £3.28 |
| 72 | 10015.562 | Primary main | not available |
| 73 | 10016.513 | Oversize primary spindle | not available |
| 73 | 64565.002 | Power full diaphragm cover screw | not available |
| 74 | 32384.046 | FULL POWER COVER | WEBER ICH & DFT CARBURETTORS | £24.46 |
| 75 | 47600.244 | Power full valve spring | not available |
| 76 | 47407.182 | Power pi valve diaphragm | not available |
| 77 | 73801.132 | WEBER CARBURETTOR MAIN JET | £2.69 |
| 78 | 73801.135 | WEBER CARBURETTOR MAIN JET | £2.69 |
| 78 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 79 | 61440.154 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 79 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 80 | 64290.015 | WEBER Pump Demand Valve | £18.23 |
| 81 | 77201.160 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 81 | 77201.140 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 82 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 83 | 52135.018 | WEBER CARBURETTOR CHOKE FLAP LEVER DUST COVER | £4.17 |
| 84 | 41015.004 | Float | not available |
| 85 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 86 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 87 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 88 | 55530.008 | Choke spindle spring washer 6s | £3.05 |
| 89 | 45027.125 | Choke spindle control lever | not available |
| 90 | 12750.107 | Choke spindle support | not available |
| 91 | 37022.004 | Internal fuel filter for Weber ADF & DRT Carburettors | £8.07 |
| 92 | 61002.019 | WEBER PLUG INTAKE FILTER COVER | £5.57 |
| 93 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 94 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 95 | — | Carburettor body — not supplied separately | not available |
| 96 | 79510.225 | WEBER CARBURETTOR NEEDLE VALVE ASSEMBLY | £12.22 |
| 97 | 83102.070 | WEBER CARBURETTOR NEEDLE VALVE WASHER | £1.02 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

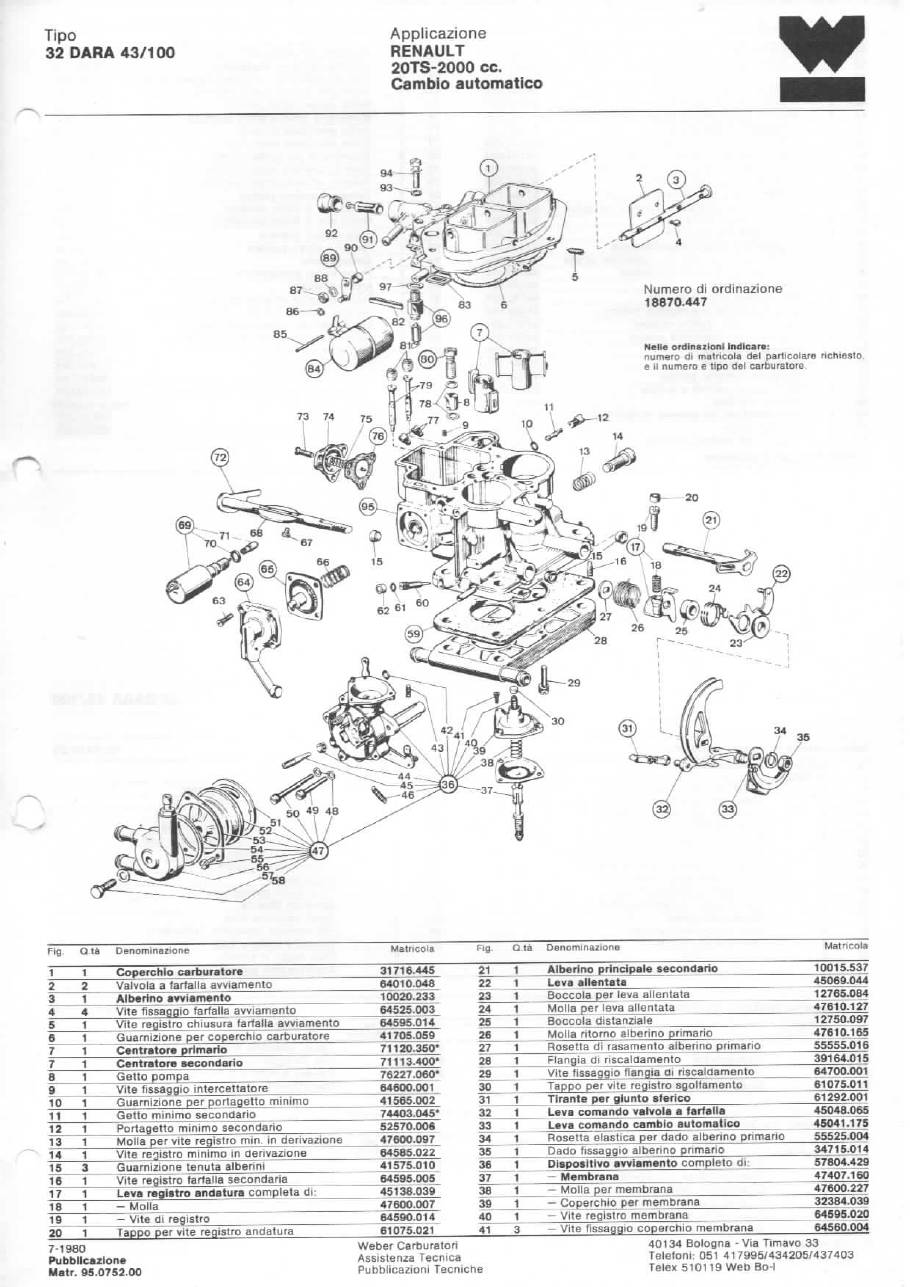

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
