Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 32 DIR CARBURETTOR Service Kit — £42.90

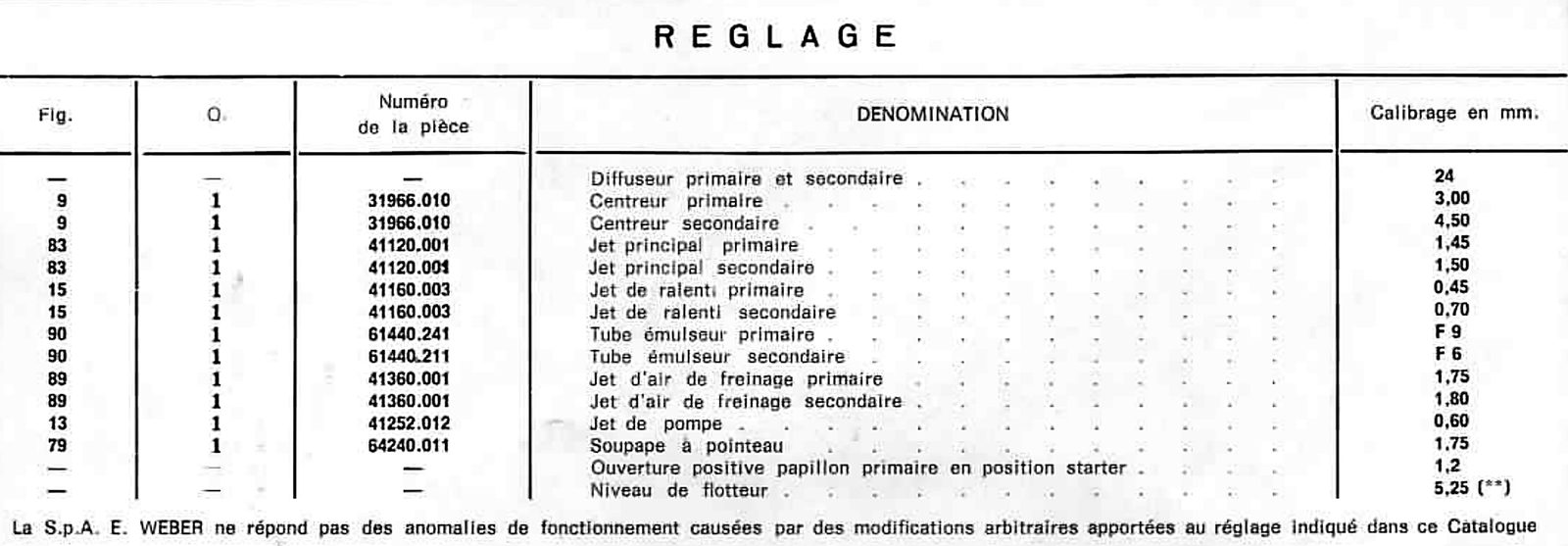

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.184 | Carburettor cover | not available |
| 2 | 64700.005 | Fixing screw (now 64695.005) | £3.74 |
| 3 | 64010.006 | Choke butterfly | not available |
| 4 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 5 | 61280.093 | Choke lever control link rod | not available |
| 6 | 47670.009 | Link rod retenue plaque | not available |
| 7 | 10020.215 | Choke butterfly spindle | not available |
| 8 | 41705.028 | TOP COVER GASKET TO SUIT WEBER CARBURETTORS: 26/34 DHSA, 28/36 DHSA, 32 DAR, 32 DARA, 32 DFB, 32 DHSA, 32 DIR, 32 DMSA, 34 DHS | £5.94 |
| 9 | 31966.010 | Primary auxiliary venturi | not available |
| 10 | 31966.010 | Secondary auxiliary venturi | not available |
| 10 | 52135.010 | Plaquette cache poussiére | not available |
| 11 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 12 | 64290.015 | WEBER Pump Demand Valve | £18.23 |
| 13 | 41252.012 | Pump jet | not available |
| 14 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 15 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 16 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 16 | 52570.005 | WEBER CARBURETTOR IDLE JET HOLDER | £4.15 |
| 17 | 47605.029 | Choke butterfly ouverture setting spring | not available |
| 18 | 45034.035 | Choke spindle control lever | not available |
| 19 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 20 | 47610.056 | Choke lever return spring | not available |
| 21 | 45202.057 | Choke control lever | not available |
| 22 | 45202.056 | Lever | not available |
| 23 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 24 | 55510.002 | Choke Lever Mounting Washer | £1.23 |
| 25 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 26 | 64605.017 | WEBER CARBURETTOR CHOKE CABLE CLAMP SCREW | LOCKS THE OUTER CABLE SHEATH | £2.90 |
| 27 | 10140.502 | WEBER DMTE, DIR, DMTL, DRTC, DMTR, DGS, DCNVA, IDA, IDA3C Carburettor Circlip / clip 'e – clip' | £1.36 |
| 28 | 45032.013 | Secondary butterfly control lever | not available |
| 29 | 55510.046 | Lever washer | not available |
| 30 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 31 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 32 | 61280.063 | Fast idle control link rod | not available |
| 33 | 47670.008 | Link rod spring | not available |
| 35 | 47605.028 | Free lever spring | not available |
| 36 | 45069.018 | Primary free lever | not available |
| 37 | 45027.100 | Primary butterfly control lever | not available |
| 38 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 39 | — | Rondelle frein | not available |
| 40 | 55510.061 | WEBER DIC / DFE-DFM / DGV / DFAV / DARA / DGAV / DAF / DIR Etc.. | £1.66 |
| 41 | 12775.006 | Throttle shaft bush for loose lever For WEBEr Carburettors | £10.27 |
| 42 | 55530.002 | WEBER CARBURETTOR WASHER | £1.53 |
| 43 | 45067.013 | Fast idle free lever | not available |
| 44 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 45 | 45138.004 | Primary spindle frein lever | not available |
| 46 | 45136.026 | Lever | not available |
| 47 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 48 | 64625.006 | Screw | not available |
| 49 | 47610.012 | Primary spindle return spring | not available |
| 50 | 55555.001 | Rondelle butee | not available |
| 51 | 41655.001 | WEBER 32 DIR CARBURETTOR MANIFOLD BASE PLATE GASKET / SPACER / INSULATOR | £10.88 |
| 52 | — | Bride de réchauffage | not available |
| 53 | 64700.005 | Bride de rechauffage fixing screw (now 64695.005) | £3.74 |
| 54 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 55 | 64700.020 | Boitier de deegorgement fixing screw | not available |
| 56 | 57804.065 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 57 | 61015.003 | Screw plug | not available |
| 58 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 59 | 57804.023 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 60 | 47600.003 | WEBER Carburettor Choke Diaphragm Spring 47600.003 | £4.71 |
| 61 | 47407.065 | Diaphragm | not available |
| 62 | 32382.011 | Cover | not available |
| 63 | 64700.004 | WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012) | £2.90 |
| 64 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 65 | 45027.099 | Degorgement control lever | not available |
| 66 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 67 | 64750.001 | WEBER CARBURETTOR IDLE MIXTURE SCREW (Short Type) | £8.12 |
| 68 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 69 | 47407.016 | WEBER CARBURETTOR PUMP DIAPHRAGM & CHOKE PULL DOWN DIAPHRAGM (now 47407.261) | £22.25 |
| 70 | 32486.044 | Pump cover | not available |
| 71 | 64570.013 | Pump cover fixing screw | not available |
| 72 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 73 | 64005.090 | Butterfly | £18.67 |
| 74 | 10015.496 | Axe primalre | not available |
| 75 | 10016.472 | Repair cete primary spindle | not available |
| 75 | 10015.479 | Secondary spindle | not available |
| 76 | 10016.473 | Repair cdete secondary spindle | not available |
| 76 | 64900.001 | WEBER CARBURETTOR PUMP DISCHARGE BLANKING NEEDLE. | £4.46 |
| 77 | — | Float | not available |
| 78 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 79 | 64240.011 | WEBER CARBURETTOR NEEDLE VALVE (now 79507) | £16.16 |
| 80 | 41535.015 | WEBER CARBURETTOR NEEDLE VALVE WASHER (now 83102.070) | £1.02 |
| 81 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 82 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 83 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 84 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 84 | 61280.094 | Control Rod DIR | £23.00 |
| 85 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 86 | 55530.008 | Choke lever spring washer 40 DFI | £3.05 |
| 87 | 45129.012 | Degorgement et depression control lever | not available |
| 89 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 90 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 90 | 61440.241 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 91 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 91 | 64372.004 | Soupape mise @ I'air libre | not available |
| 92 | 55510.044 | Link rod washer | not available |
| 93 | 47670.007 | Spring Clip 32 DIR | £3.75 |
| 94 | 61280.095 | Valve link rod | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

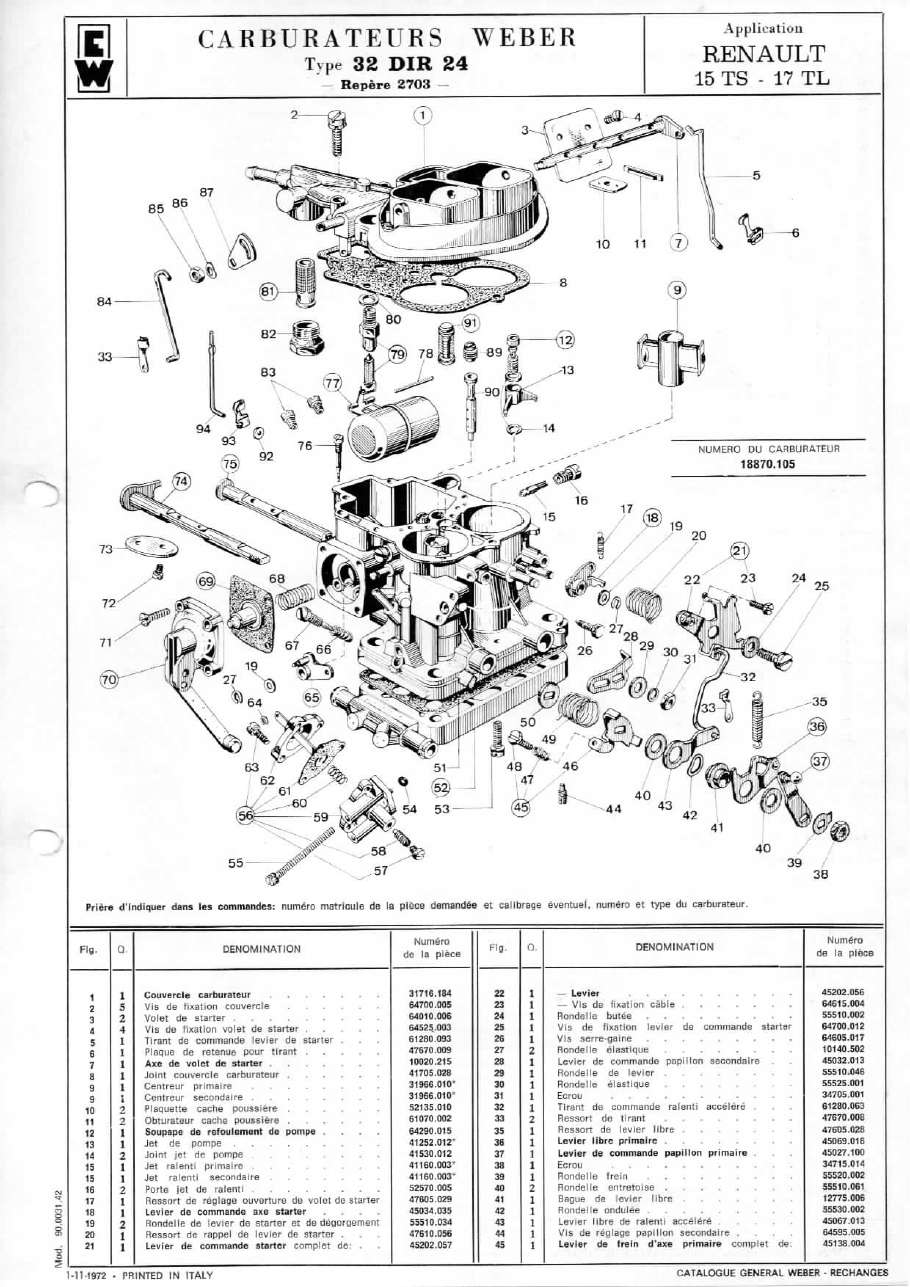

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
