Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 32 DIR CARBURETTOR Service Kit — £42.90

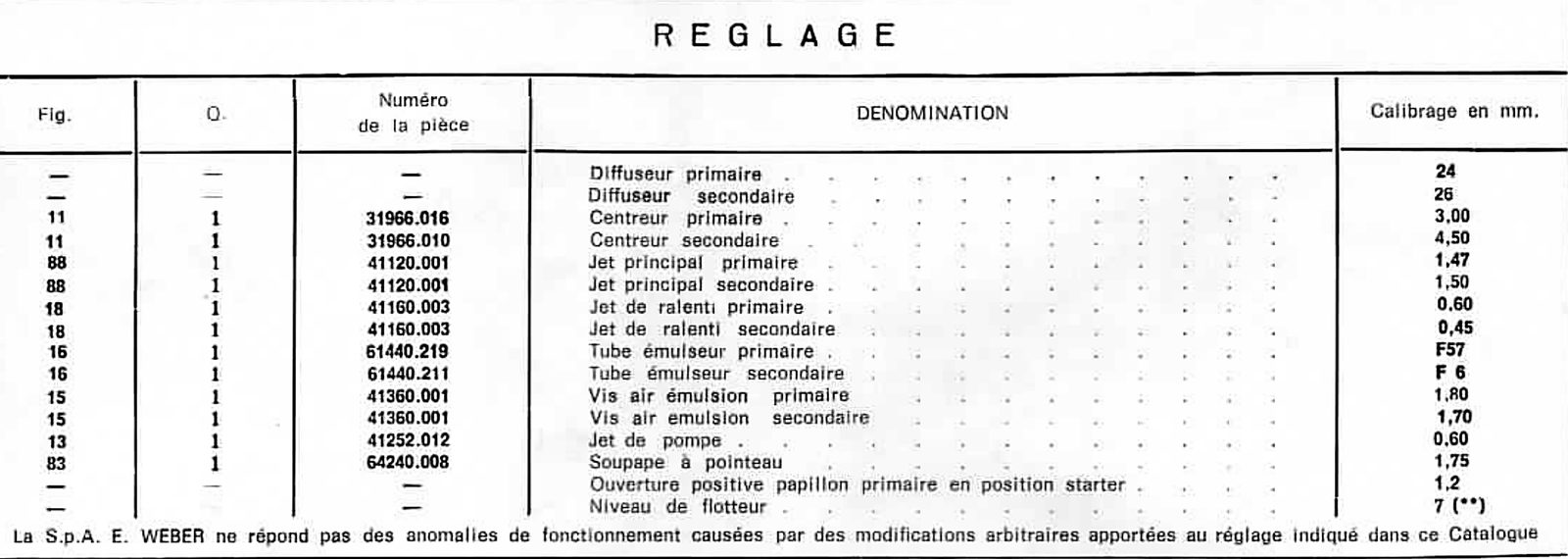

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.153 | Carburettor cover | not available |
| 2 | 64700.005 | Cover fixing screw (now 64695.005) | £3.74 |
| 3 | 64610.007 | Goujon avec ecron | not available |
| 4 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 5 | 64010.006 | Choke butterfly | not available |
| 6 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 7 | 61287.011 | Choke control link rod | not available |
| 8 | 10020.215 | Choke butterfly spindle | not available |
| 9 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 10 | 52135.010 | Plaquette cache poussiére | not available |
| 11 | 31966.016 | Primary auxiliary venturi | not available |
| 12 | 31966.010 | Secondary auxiliary venturi | not available |
| 12 | 64290.015 | WEBER Pump Demand Valve | £18.23 |
| 13 | 41252.012 | Pump jet | not available |
| 14 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 15 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 16 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 16 | 61440.219 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 17 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 18 | 52570.005 | WEBER CARBURETTOR IDLE JET HOLDER | £4.15 |
| 18 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 19 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 19 | 47610.056 | Setting lever spring | not available |
| 20 | 45138.012 | Fast idle setting lever | not available |
| 21 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 22 | 45136.056 | Lever | not available |
| 23 | 64595.009 | WEBER CARBURETTOR FAST IDLE ADJUSTMENT SCREW | £10.02 |
| 24 | 12775.058 | Lever bush | not available |
| 25 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 26 | 47610.056 | Choke lever return spring | not available |
| 27 | 45202.081 | Choke control lever | not available |
| 28 | 45202.080 | Lever | not available |
| 29 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 30 | 12775.057 | Choke control lever bush | not available |
| 31 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 32 | 47605.034 | Free lever spring | not available |
| 33 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 34 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 35 | 55510.046 | Washer | not available |
| 36 | 45032.013 | Secondary butterfly cammande lever | not available |
| 37 | 64605.017 | WEBER CARBURETTOR CHOKE CABLE CLAMP SCREW | LOCKS THE OUTER CABLE SHEATH | £2.90 |
| 38 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 39 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 40 | 45027.095 | Control lever | not available |
| 41 | 55510.064 | Washer | not available |
| 42 | 45069.021 | Primary free lever | not available |
| 43 | 12765.002 | Free lever bush | not available |
| 44 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 45 | 45138.011 | Primary spindle frein lever | not available |
| 46 | 45136.055 | Lever | not available |
| 47 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 48 | — | Screw | not available |
| 49 | 47610.012 | Primary spindle spring | not available |
| 50 | 55555.001 | Rondelle butée | not available |
| 51 | 41655.001 | WEBER 32 DIR CARBURETTOR MANIFOLD BASE PLATE GASKET / SPACER / INSULATOR | £10.88 |
| 52 | 39166.007 | Bride de réchauffage | not available |
| 53 | 64700.005 | Bride de rechaoffage fixing screw (now 64695.005) | £3.74 |
| 54 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 55 | 64700.020 | Weakener dispositif screw | not available |
| 56 | 57804.065 | Choke weakener dispositif, comprising: | £47.95 |
| 57 | 61015.003 | Screw @ plug | not available |
| 58 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 59 | 57804.023 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 60 | 47600.003 | WEBER Carburettor Choke Diaphragm Spring 47600.003 | £4.71 |
| 61 | 47407.065 | Diaphragm | not available |
| 62 | 32382.011 | Cover | not available |
| 63 | 64700.004 | WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012) | £2.90 |
| 64 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 65 | 45027.099 | Renvoi commande. sppauvrisseur | not available |
| 66 | 55510.055 | Lever washer | not available |
| 67 | 10140.502 | WEBER DMTE, DIR, DMTL, DRTC, DMTR, DGS, DCNVA, IDA, IDA3C Carburettor Circlip / clip 'e – clip' | £1.36 |
| 68 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 69 | 58000.006 | WEBER CARBURETTOR IDLE MIXTURE SCREW CUP WASHER | £2.95 |
| 70 | — | Idle mixture regiage screw spring | not available |
| 71 | 64750.042 | Idle mixture adjusting screw | not available |
| 72 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 73 | 47407.016 | WEBER CARBURETTOR PUMP DIAPHRAGM & CHOKE PULL DOWN DIAPHRAGM (now 47407.261) | £22.25 |
| 74 | 32486.019 | Pump cover | not available |
| 75 | 64700.004 | WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012) | £2.90 |
| 76 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 77 | 64005.090 | Butterfly | £18.67 |
| 78 | 10015.496 | Primary spindle | not available |
| 79 | 10016.472 | Repair cote primary spindle | not available |
| 80 | 10015.479 | Secondary spindle | not available |
| 81 | 10016.473 | Repair cete secondary spindle | not available |
| 80 | 64900.001 | WEBER CARBURETTOR PUMP DISCHARGE BLANKING NEEDLE. | £4.46 |
| 81 | 41015.004 | Float | not available |
| 82 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 83 | 64240.008 | WEBER CARBURETTOR NEEDLE VALVE (now 79507) | £16.16 |
| 84 | 41535.015 | WEBER CARBURETTOR NEEDLE VALVE WASHER (now 83102.070) | £1.02 |
| 85 | 64372.004 | Free mise valve | not available |
| 86 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 87 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 88 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 89 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 90 | 47670.008 | Link rod spring | not available |
| 91 | 61280.094 | Control Rod DIR | £23.00 |
| 92 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 93 | 55530.008 | Fixing washer | £3.05 |
| 94 | — | Weakener control lever | not available |
| 95 | 41705.028 | TOP COVER GASKET TO SUIT WEBER CARBURETTORS: 26/34 DHSA, 28/36 DHSA, 32 DAR, 32 DARA, 32 DFB, 32 DHSA, 32 DIR, 32 DMSA, 34 DHS | £5.94 |
| 96 | 55510.044 | Link rod washer | not available |
| 97 | 47670.007 | Spring Clip 32 DIR | £3.75 |
| 98 | 61280.095 | Valve link rod | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

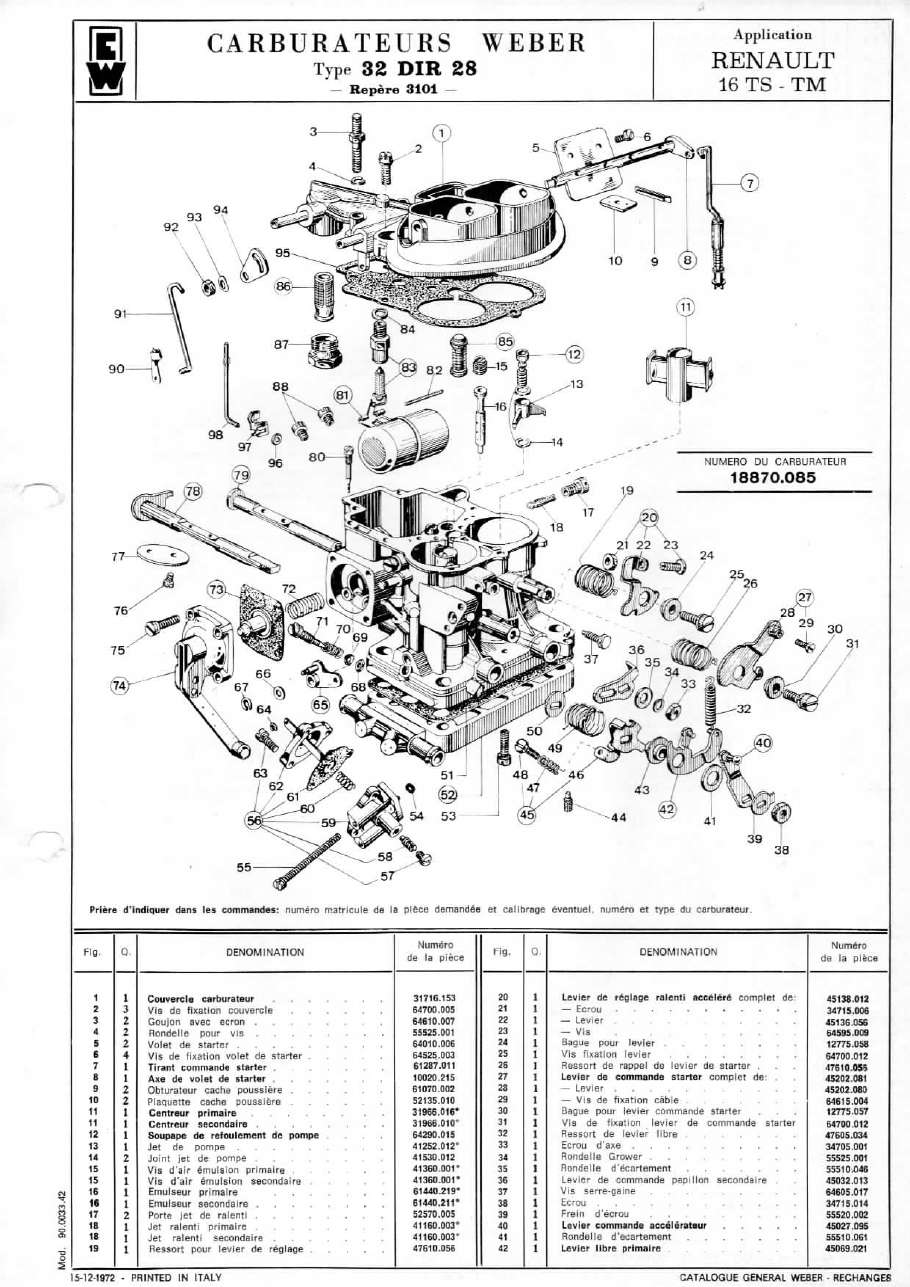

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
