Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 32 DIR CARBURETTOR Service Kit — £42.90

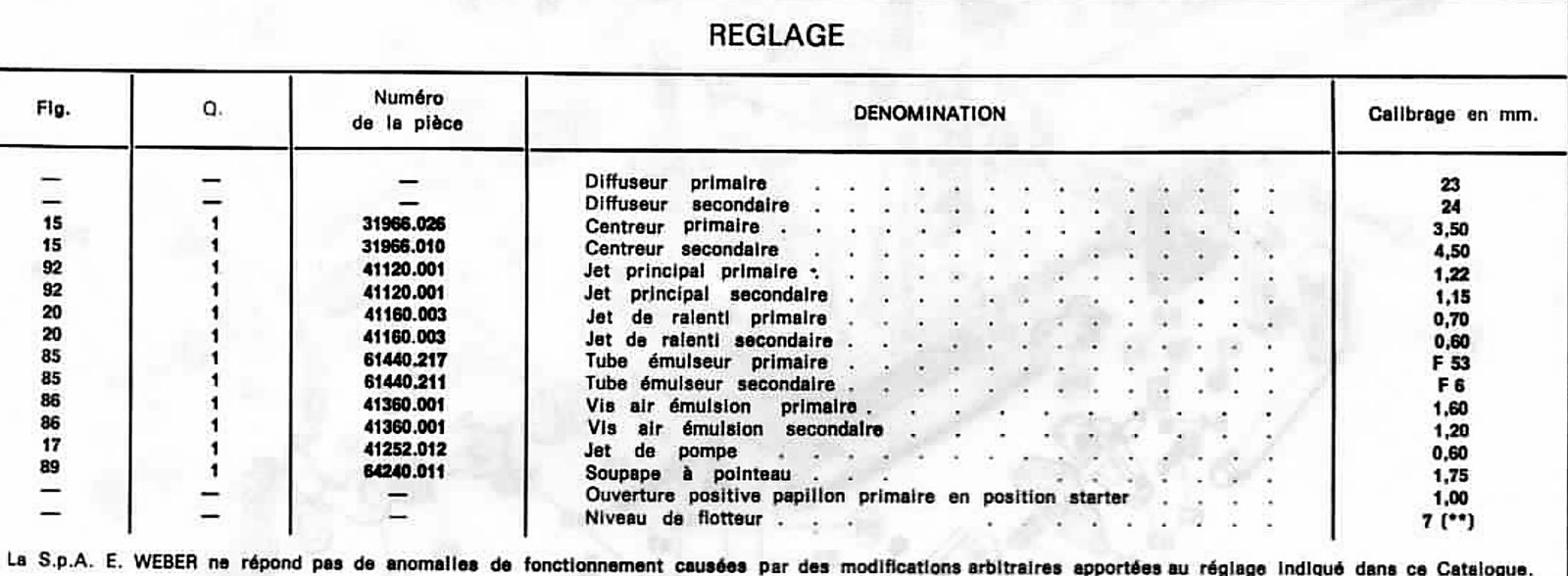

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.226 | Carburettor cover | not available |
| 2 | 64372.009 | Soupape mise 4 I'air libre | not available |
| 3 | 41705.028 | TOP COVER GASKET TO SUIT WEBER CARBURETTORS: 26/34 DHSA, 28/36 DHSA, 32 DAR, 32 DARA, 32 DFB, 32 DHSA, 32 DIR, 32 DMSA, 34 DHS | £5.94 |
| 4 | 64010.006 | Choke butterfly | not available |
| 5 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 6 | 61287.020 | Choke control link rod | not available |
| 7 | 10005.219 | Choke butterfly spindle | not available |
| 8 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 9 | 52135.010 | Dust cover plate | not available |
| 10 | 61285.025 | Valve link rod | not available |
| 11 | 34705.002 | Nut M4 | £0.97 |
| 12 | 45025.139 | Link rod control lever | not available |
| 13 | 55530.008 | Fixing washer | £3.05 |
| 14 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 15 | 31966.026 | Primary auxiliary venturi | not available |
| 16 | 31966.010 | Secondary auxiliary venturi | not available |
| 16 | 64290.015 | WEBER Pump Demand Valve | £18.23 |
| 17 | 41252.012 | Pump jet | not available |
| 18 | 55510.090 | Washer | not available |
| 19 | 52570.005 | WEBER CARBURETTOR IDLE JET HOLDER | £4.15 |
| 20 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 21 | 41160.003 | WEBER CARBURETTOR IDLE JET (now 74401) | £4.96 |
| 21 | 47610.056 | GO a | not available |
| 22 | 45138.012 | Fast idle setting lever | not available |
| 23 | 12775.058 | Lever bush | not available |
| 24 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 25 | 45202.081 | Choke renvoi lever | not available |
| 26 | 12775.057 | Choke control lever bush | not available |
| 27 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 28 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 29 | 45041.096 | Commands lever | not available |
| 30 | 64700.020 | Weakener dispositif screw | not available |
| 31 | 64905.001 | WEBER DIR / ICEV CARBURETTOR PUMP ROD SCREW NUT | £10.15 |
| 32 | 47605.034 | Free lever spring | not available |
| 33 | 24705.001 | Nut | not available |
| 34 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 35 | 55510.046 | Rondelie | not available |
| 36 | 45032.013 | Secondary butterfly control lever | not available |
| 37 | 64605.017 | WEBER CARBURETTOR CHOKE CABLE CLAMP SCREW | LOCKS THE OUTER CABLE SHEATH | £2.90 |
| 38 | 45027.005 | Throttle lever TLP | £29.62 |
| 39 | 55510.061 | WEBER DIC / DFE-DFM / DGV / DFAV / DARA / DGAV / DAF / DIR Etc.. | £1.66 |
| 42 | 45069.021 | Primary free lever | not available |
| 43 | 12765.002 | Free lever bush | not available |
| 44 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 45 | 45138.014 | Primalre spindle stop lever | not available |
| 46 | 45136.055 | Levler | not available |
| 47 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 48 | 64625.006 | Screw | not available |
| 49 | 47610.012 | Primary spindle return spring | not available |
| 50 | 55555.001 | Washer | not available |
| 51 | 39152.014 | Flange Gasket 32 DARA | £22.34 |
| 52 | 39166.011 | Bride de réchauffage | not available |
| 53 | 64700.001 | Rechauffage bride screw (now 64695.021W) | £2.10 |
| 54 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 55 | 57804.122 | Choke weakener dispositif, comprising: | £47.95 |
| 56 | 61015.013 | Plug | not available |
| 57 | 55530.013 | Fixing washer | not available |
| 58 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 59 | 57804.113 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 60 | 47600.005 | WEBER DCOE CARBURETTOR | PUMP ROD SPRING | STRONG | £7.86 |
| 61 | 47407.122 | WEBER 32 DIR CHOKE PULL OFF DIAPHRAGM | £52.87 |
| 62 | 32384.038 | Weakener cover | not available |
| 63 | 64570.013 | Weakener cover screw | not available |
| 64 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 65 | 45027.114 | Weakener control renvol | not available |
| 66 | 55510.055 | Lever rondellie | not available |
| 67 | 10140.502 | WEBER DMTE, DIR, DMTL, DRTC, DMTR, DGS, DCNVA, IDA, IDA3C Carburettor Circlip / clip 'e – clip' | £1.36 |
| 68 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 69 | 58000.006 | WEBER CARBURETTOR IDLE MIXTURE SCREW CUP WASHER | £2.95 |
| 70 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 71 | 64750.042 | Idle mixture screw | not available |
| 72 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 73 | — | Pump diaphragm | not available |
| 74 | 32486.019 | Pump cover | not available |
| 75 | 64700.004 | WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012) | £2.90 |
| 76 | 52135.019 | Dust cover plate | not available |
| 77 | 10015.508 | Primary papilion spindle | not available |
| 78 | 10016.482 | Repair cite primary spindle | not available |
| 78 | 10015.479 | Secondary butterfly spindle | not available |
| 79 | 10016.473 | Repair secondary butterfly spindle | not available |
| 80 | 64005.090 | Butterfly | £18.67 |
| 80 | 64900.001 | WEBER CARBURETTOR PUMP DISCHARGE BLANKING NEEDLE. | £4.46 |
| 81 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 82 | 41015.004 | i. en | not available |
| 83 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 84 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 85 | 61440.217 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 85 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 86 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 87 | 41360.001 | WEBER CARBURETTOR AIR CORRECTOR JET (now 77201) | £3.04 |
| 87 | — | Livrable carburettor body | not available |
| 88 | 41535.015 | WEBER CARBURETTOR NEEDLE VALVE WASHER (now 83102.070) | £1.02 |
| 89 | 64240.011 | WEBER CARBURETTOR NEEDLE VALVE (now 79507) | £16.16 |
| 90 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 91 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 92 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 92 | 41120.001 | WEBER CARBURETTOR MAIN JET (now 73801) | £2.69 |
| 93 | 45129.010 | Weakener control lever | not available |
| 94 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 95 | 64700.005 | Couvercie fixing screw (now 64695.005) | £3.74 |
| 96 | 47670.008 | Link rod frein | not available |
| 97 | 61280.094 | Control Rod DIR | £23.00 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

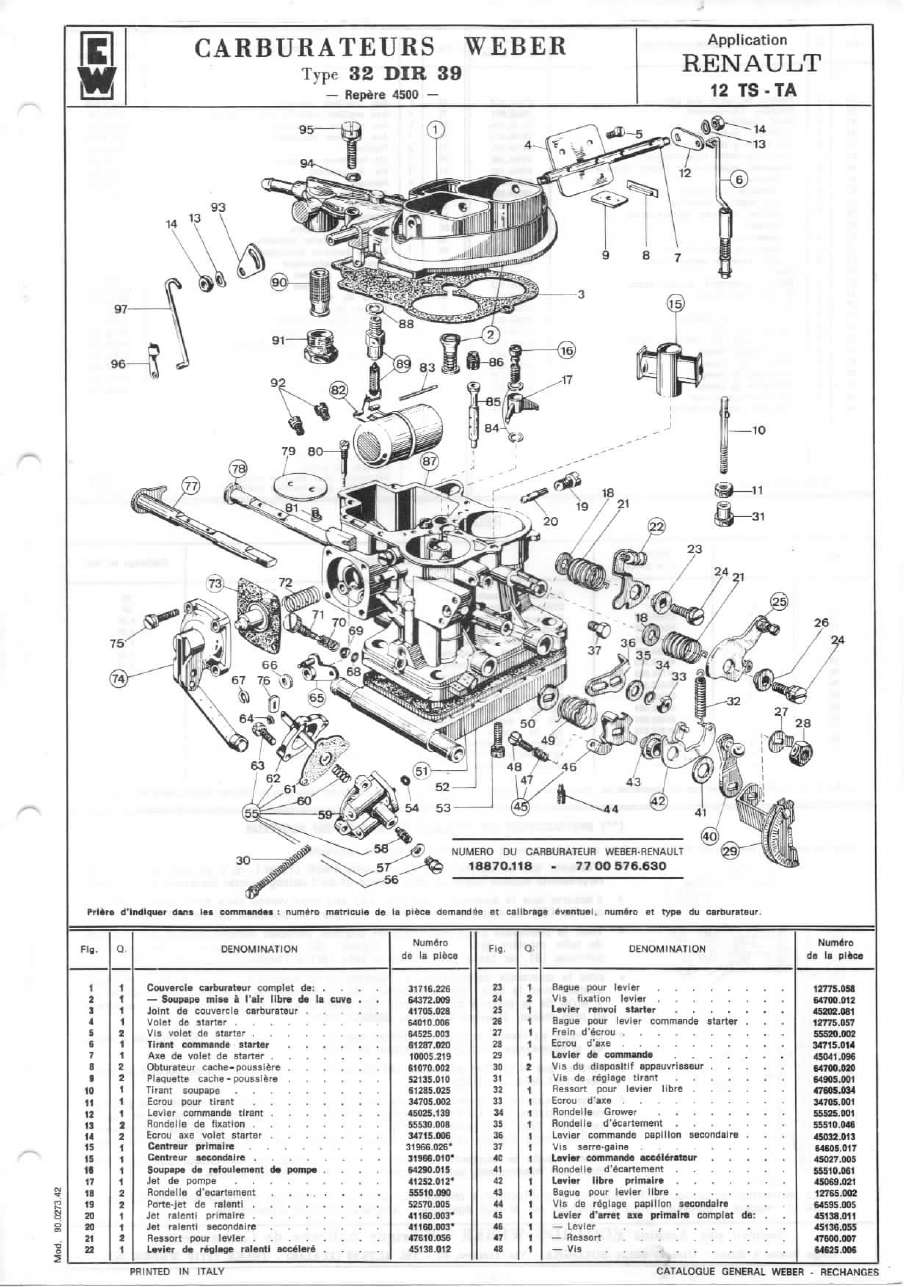

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
