Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 32 DIR CARBURETTOR Service Kit — £42.90
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 11 | 31716.291 | Carburatore compieto cover | not available |
| 12 | 64372.009 | Vent valve | not available |
| 13 | 64010.006 | Choke butterfly valve | not available |
| 14 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 15 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 16 | 55530.008 | Choke spindle wave washer | £3.05 |
| 17 | 61287.070 | Choke control link rod | not available |
| 18 | 45025.200 | Choke spindle lever | not available |
| 19 | 12775.079 | Choke link rod bush | £11.38 |
| 20 | 10005.219 | Choke spindle | not available |
| 21 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 22 | 52135.010 | Dust shield plate 2 12 | not available |
| 13 | 71120.350 | Primary auxiliary venturi | £36.83 |
| 14 | 71109.450 | AUXILIARY VENTURI 32 DIR | £36.83 |
| 14 | 77201.190 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 15 | 77201.160 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 15 | 61440.241 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 16 | 61440.211 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 17 | 76211.060 | Pump jet | not available |
| 18 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 19 | — | Primary idle jet | not available |
| 20 | 74403.080 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 20 | 52570.005 | WEBER CARBURETTOR IDLE JET HOLDER | £4.15 |
| 21 | 55510.003 | Fast idle avy com lever washer | not available |
| 22 | 47610.056 | ae: 2 Molla per leva com. avy. e minimo veloce | not available |
| 23 | 45138.030 | Fast idle adjusting lever | not available |
| 24 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 25 | 64595.009 | WEBER CARBURETTOR FAST IDLE ADJUSTMENT SCREW | £10.02 |
| 26 | 12775.058 | Fast idle adjusting lever bush | not available |
| 27 | 64700.026 | Levers fixing screw (now 64695.024) | £2.90 |
| 28 | 45202.144 | Choke control lever | not available |
| 29 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 30 | 12775.057 | Choke control lever bush | not available |
| 31 | 64605.017 | WEBER CARBURETTOR CHOKE CABLE CLAMP SCREW | LOCKS THE OUTER CABLE SHEATH | £2.90 |
| 32 | 10015.541 | Secondary throttle spindle | not available |
| 33 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 34 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 35 | 45041.159 | Butterfly control lever | not available |
| 36 | 55510.061 | WEBER DIC / DFE-DFM / DGV / DFAV / DARA / DGAV / DAF / DIR Etc.. | £1.66 |
| 37 | 45069.048 | Loose lever | not available |
| 38 | 47610.127 | Loose lever spring | £8.48 |
| 39 | 12765.002 | Loose lever occola | not available |
| 40 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 41 | 45138.011 | Primary spindle stop lever | not available |
| 42 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 43 | 64625.006 | Screw | not available |
| 44 | 47610.158 | Primary spindle return spring | not available |
| 45 | 55555.001 | Primary spindle shim washer 1 ass | not available |
| 46 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 47 | 61075.002 | Sgolfatore cover plug | £6.79 |
| 48 | 64575.003 | Unloader housing fixing screw | not available |
| 49 | 57804.450 | Unloader control housing | £47.95 |
| 50 | 64595.005 | WEBER CARBURETTOR ADJUSTING GRUB SCREW | £5.91 |
| 51 | 47600.191 | SPRING | £2.04 |
| 52 | 47407.084 | DIAPHRAGM WEBER DIR | £18.66 |
| 53 | 64565.002 | Cover fixing screw | not available |
| 54 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 55 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 56 | 45027.114 | Unloader control lever | not available |
| 57 | 10140.502 | WEBER DMTE, DIR, DMTL, DRTC, DMTR, DGS, DCNVA, IDA, IDA3C Carburettor Circlip / clip 'e – clip' | £1.36 |
| 58 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 59 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 60 | 58000.006 | WEBER CARBURETTOR IDLE MIXTURE SCREW CUP WASHER | £2.95 |
| 61 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 62 | 64750.066 | Idle mixture screw | not available |
| 63 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 64 | 47407.131 | WEBER CARBURETTOR PUMP DIAPHRAGM | £28.00 |
| 65 | 32486.078 | Pump cover | not available |
| 66 | 64565.001 | Pump cover fixing screw | £1.82 |
| 67 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 68 | 64005.090 | Throttle plate | £18.67 |
| 69 | 10015.496 | Primary throttle spindle | not available |
| 69 | 10016.472 | Oversize primary spindle | not available |
| 70 | 10140.307 | DRLA Choke cable bolt | £3.86 |
| 71 | 64900.001 | WEBER CARBURETTOR PUMP DISCHARGE BLANKING NEEDLE. | £4.46 |
| 72 | — | Carburettor body — not supplied separately | not available |
| 73 | 41015.004 | Float | not available |
| 74 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 75 | 79507.175 | WEBER CARBURETTOR NEEDLE VALVE | £16.16 |
| 76 | 83102.070 | WEBER CARBURETTOR NEEDLE VALVE WASHER | £1.02 |
| 77 | 41705.028 | TOP COVER GASKET TO SUIT WEBER CARBURETTORS: 26/34 DHSA, 28/36 DHSA, 32 DAR, 32 DARA, 32 DFB, 32 DHSA, 32 DIR, 32 DMSA, 34 DHS | £5.94 |
| 78 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 79 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 80 | 73801.135 | WEBER CARBURETTOR MAIN JET | £2.69 |
| 81 | 73801.140 | WEBER CARBURETTOR MAIN JET | £2.69 |
| 81 | 34705.002 | Nut M4 | £0.97 |
| 82 | 64905.001 | WEBER DIR / ICEV CARBURETTOR PUMP ROD SCREW NUT | £10.15 |
| 83 | 61285.037 | Vent control link rod | not available |
| 84 | 47670.008 | Link rod | not available |
| 85 | 61280.124 | Unloader control link rod | not available |
| 86 | 32610.003 | Link rod split pin | £0.91 |
| 87 | 45129.012 | Unloader control lever | not available |
| 88 | 55510.110 | Link rod washer | not available |
| 89 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

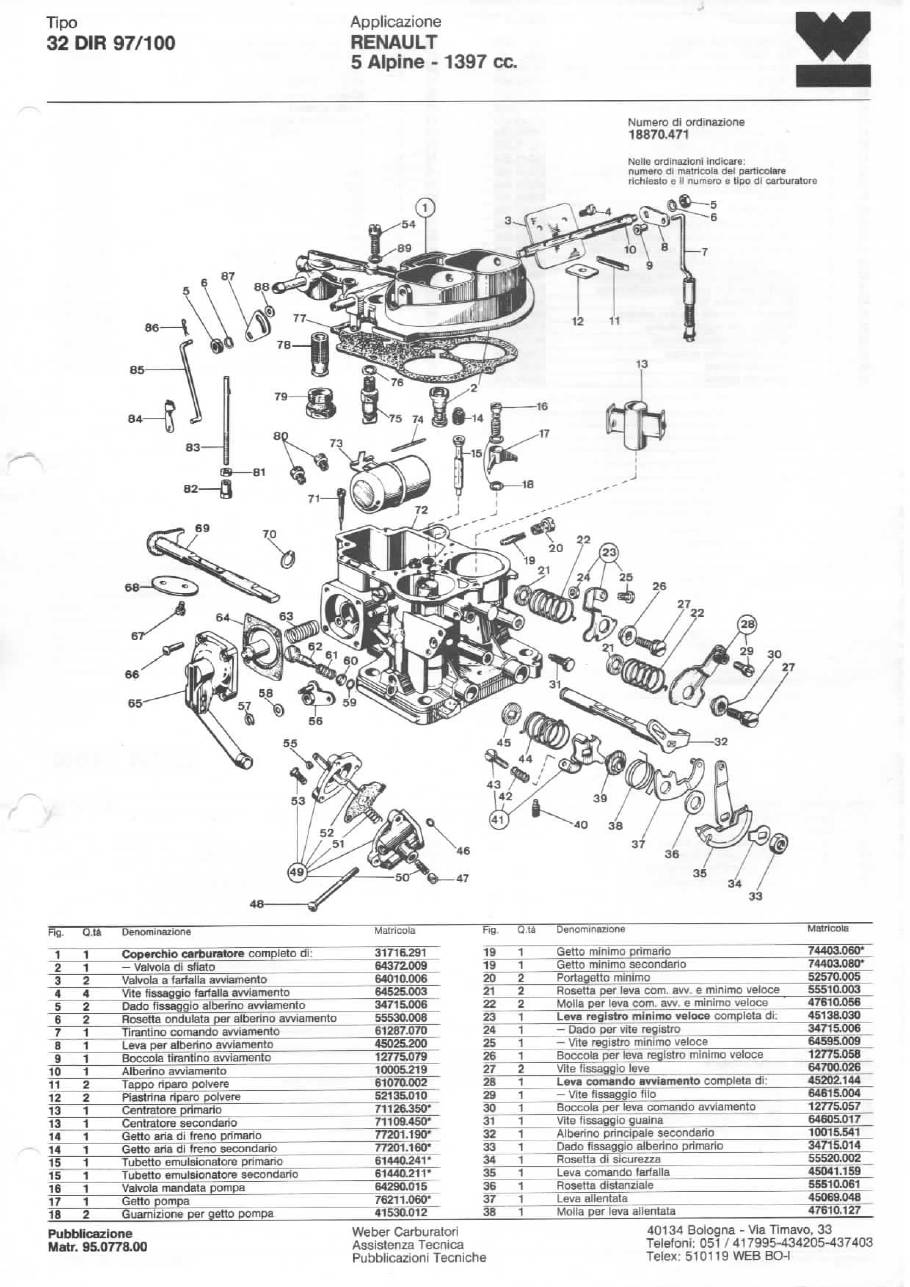

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
