Carburettor parts list in below table — click on available parts to view them or order them in the shop.

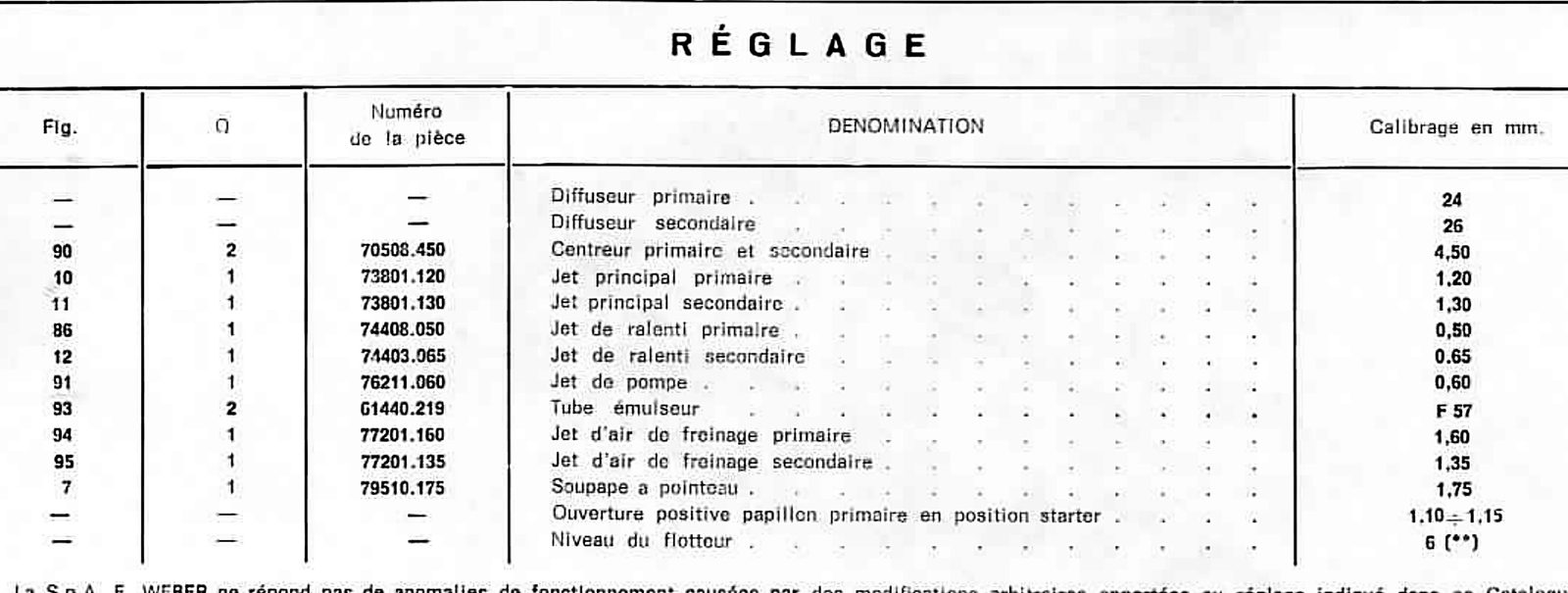

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.174 | Carburettor cover | not available |
| 2 | 64700.005 | Cuouvercle screw (now 64695.005) | £3.74 |
| 3 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 4 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 5 | 41705.036 | Carburettor cover gasket | not available |
| 6 | — | Needle valve gasket | not available |
| 7 | 79510.175 | WEBER CARBURETTOR NEEDLE VALVE ASSEMBLY | £12.22 |
| 8 | 41015.004 | Float | not available |
| 9 | 52000.015 | WEBER CARBURETTOR FUEL FLOAT PIN | £1.51 |
| 10 | — | Primary main jet | not available |
| 11 | 73801.130 | WEBER CARBURETTOR MAIN JET | £2.69 |
| 12 | — | Idle jet | not available |
| 13 | 41565.002 | WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045) | £2.13 |
| 14 | 52570.006 | WEBER IDLE JET HOLDER | £6.85 |
| 15 | — | Corps de carburateur . . . . . . . non livrable | not available |
| 16 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 17 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 18 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 19 | 55510.081 | WEBER CARBURETTOR SECONDARY THROTTLE SHAFT SPINDLE WASHER | £1.66 |
| 20 | 67016.010 | Carburettor embase | not available |
| 21 | — | 0328.42 90 | not available |
| 21 | 64005.048 | Butterfly | £12.98 |
| 22 | 64520.027 | WEBER CARBURETTOR BUTTERFLY / THROTTLE VALVE SCREW (now S57392022) | £2.26 |
| 23 | 10015.261 | Primary main spindle | not available |
| 24 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 25 | 10015.262 | Secondary main spindle | not available |
| 26 | 64700.027 | M5 x 37 Carburettor Base Screw & Washer 34 ADSDÂ & ADSDA | £1.69 |
| 27 | 55510.018 | Washer | not available |
| 28 | 64595.013 | SCREW FOR WEBER DMTL / DFT CARBURETTORS | £5.07 |
| 29 | 55555.019 | Throttle shaft shim (now 5555501600) | £1.66 |
| 30 | 47610.003 | WEBER carburettor Choke Lever Return Spring | £4.17 |
| 31 | 12750.087 | Bush Throttle shaft DFT / DMTR / DMTL | £8.04 |
| 32 | 47610.092 | Lever return spring | not available |
| 33 | 45069.024 | Free lever | not available |
| 34 | 12765.055 | Free lever bush | not available |
| 35 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 36 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 37 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 38 | 47610.081 | Return spring | £10.60 |
| 39 | 14857.005 | Came avec levier | not available |
| 40 | 64615.005 | Plate screw | not available |
| 41 | 10140.508 | DRLA Choke cable bolt | £3.86 |
| 42 | 61280.121 | Fast ralent| control link rod | not available |
| 43 | 64700.008 | WEBER carburettor Top cover / Auto-Choke Body / Anti-Flood | Screw | £4.06 |
| 44 | 45041.084 | Lever | not available |
| 45 | 45039.082 | Lever | not available |
| 46 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 47 | 64625.018 | Setting screw | not available |
| 48 | 55510.003 | Washer | not available |
| 49 | 47600.141 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £3.75 |
| 50 | 45039.060 | Free lever | not available |
| 51 | 64700.004 | WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012) | £2.90 |
| 52 | 47407.016 | WEBER CARBURETTOR PUMP DIAPHRAGM & CHOKE PULL DOWN DIAPHRAGM (now 47407.261) | £22.25 |
| 53 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 54 | 64750.031 | Idle mixture setting screw 1 83 12765.042 free lever bush | not available |
| 55 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 56 | 43902.050 | Bride isolante 39152.011 BS 1 Intercepteur de ralenti comprenant: | not available |
| 57 | 74408.050 | WEBER CARBURETTOR IDLE JET | £3.25 |
| 58 | 58352.001 | Rondelle 55525.003 87 1 Pointeau conique | not available |
| 59 | 45025.140 | Link rod lever | not available |
| 60 | 43846.001 | IDLE CUT-OFF 38 ADS | £81.88 |
| 61 | 70508.450 | Came ralenti accelere 47610.093 90 2 centreur spring | not available |
| 62 | 76211.060 | Retenue du ressort 53000,014 91 1 jet de pompe cover | not available |
| 63 | 41530.012 | WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014) | £1.60 |
| 64 | 61440.219 | WEBER CARBURETTOR EMULSION TUBE | £17 |
| 65 | 57804.101 | WEBER 30 DGS CARBURETTOR CHOKE PULL-OFF VALVE CAPSULE / DIAPHRAGM | CITROEN | £47.95 |
| 66 | 77201.135 | WEBER CARBURETTOR AIR CORRECTOR JET | £3.04 |
| 67 | 64290.015 | WEBER Pump Demand Valve | £18.23 |
| 68 | 52135.010 | Diaphragme isolante . . . . . 41640.00S 97 1 Plaquette cache poussiére | not available |
| 69 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 70 | 61280.120 | Collier blocage boitier 52135.006 99 1 Tirant commande starter | not available |
| 71 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 72 | 64010.025 | Choke butterfly 1 101 32444008 water circulation cover | not available |
| 73 | 10015.263 | Primary choke butterfly spindle 102 64615.001 cover fixing screw | not available |
| 74 | 64700.007 | Diaphragm cover fixing screw | not available |
| 75 | 64595.014 | Bouchon soe 8 61015.003 104 1 Vis réglage volet starter | not available |
| 76 | 47670.011 | Diaphragm adjusting screw | not available |
| 77 | — | Diaphragm cover | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

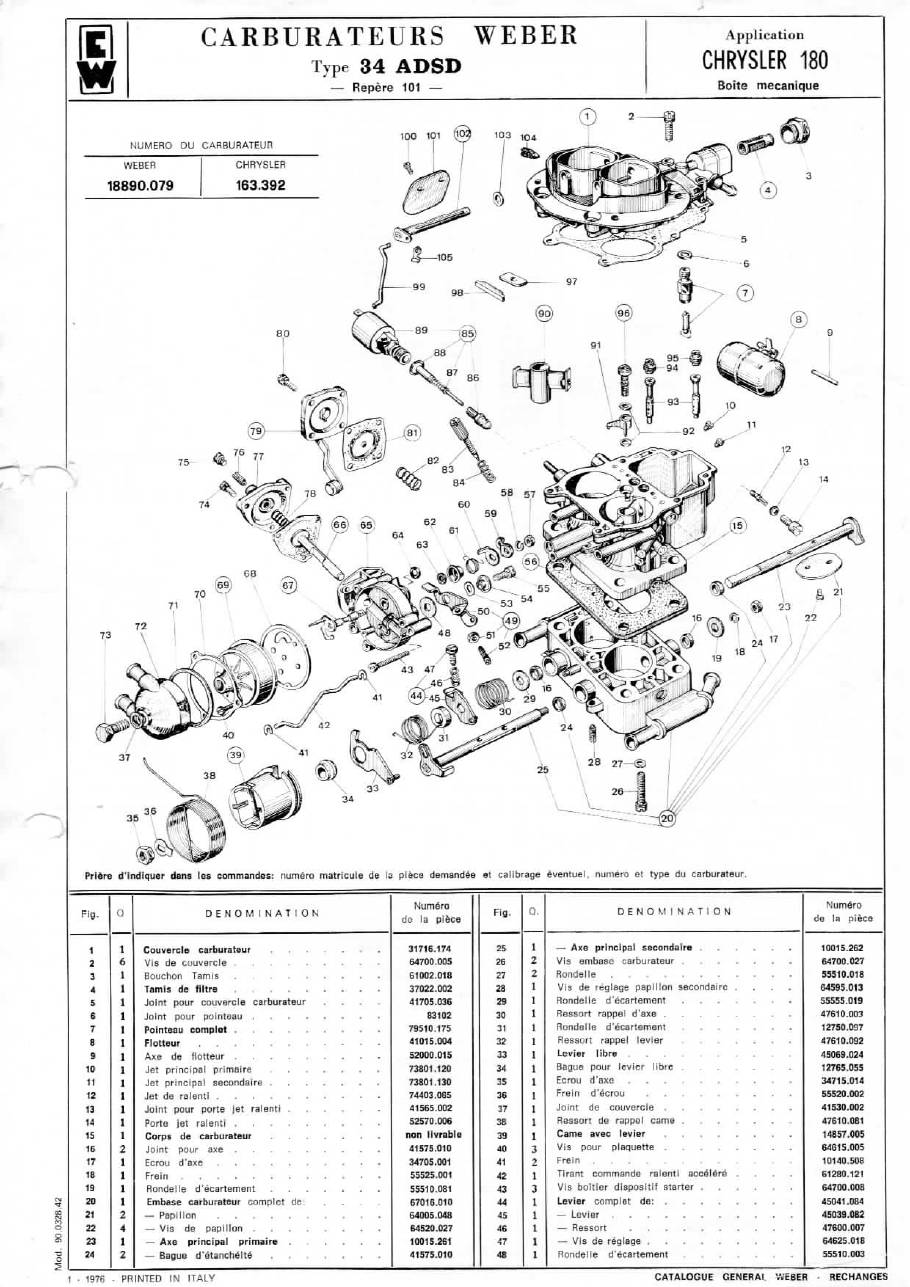

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
