Carburettor parts list in below table — click on available parts to view them or order them in the shop.

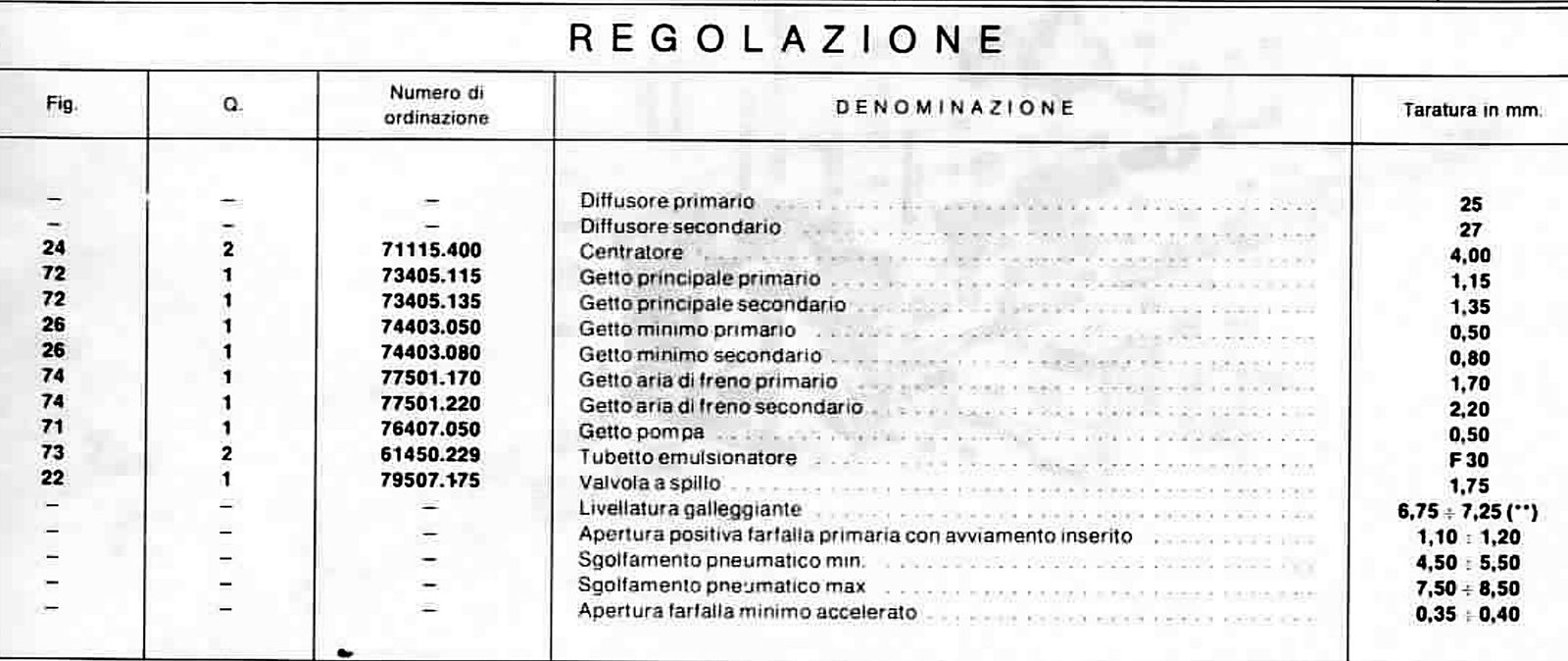

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.
Tap the table to open it full size.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | — | Carburettor cover | not available |
| 2 | 64955.004 | Stud | not available |
| 3 | 64372.009 | Vent valve | not available |
| 4 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 5 | 52135.010 | Dust shield plate | not available |
| 6 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 7 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 8 | 10015.276 | Choke spindle | not available |
| 9 | 32610.005 | WEBER CARBURETTOR SPLIT PIN | £0.91 |
| 10 | 61280.114 | Choke control link rod | not available |
| 11 | 64010.033 | Choke Plate DMTL | £10.19 |
| 12 | 41640.052 | WEBER WATER-CHOKE CHOKE HOUSING PLATE SEAL | £4.22 |
| 13 | 57804.190 | Thermostatic coil housing | £47.95 |
| 14 | 52135.029 | WEBER ADF CARBURETTOR WATER CHOKE COIL AND HOUSING REPLACEMENT / REPAIR KIT (now CRK004EU) | £40.39 |
| 15 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 16 | 32444.011 | WEBER ADF, ADFA, ADHA, DAT, DATA, DATR CARBURETTOR CHOKE COVER | £31.22 |
| 17 | 64610.008 | Water cover issaggio screw | not available |
| 18 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 19 | 64615.005 | Plate fissaqgio screw | not available |
| 20 | 52000.036 | WEBER Float pin | £2.88 |
| 21 | 41030.012 | Float | not available |
| 22 | 79507.175 | WEBER CARBURETTOR NEEDLE VALVE | £16.16 |
| 23 | — | PRINTED IN ITALY | not available |
| 23 | 83102.070 | WEBER CARBURETTOR NEEDLE VALVE WASHER | £1.02 |
| 24 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 25 | 52570.004 | WEBER CARBURETTOR IDLE JET HOLDER | £9.86 |
| 26 | 74403.050 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 27 | 74403.080 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 27 | — | Aricambio carburettor body | not available |
| 28 | 64595.013 | Secondary butterfly adjusting screw | not available |
| 29 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 30 | 12750.085 | WEBER Carburettor throttle spindle / shaft bush | £3.06 |
| 31 | 10015.511 | Secondary throttle spindle | not available |
| 32 | 64005.113 | Throttle plate (now 64005.018) | £15.67 |
| 33 | 64520.023 | WEBER DGV / DGAV / DGEV / IDA3C CARBURETTOR THROTTLE VALVE / BUTTERFLY SCREW (now S57392032) | £2.26 |
| 34 | 45048.063 | Butterflies control lever | not available |
| 35 | 34715.018 | Nut M5 fine thread | £1.49 |
| 36 | 64595.025 | Fast idle adjusting screw | £8.35 |
| 37 | 64625.025 | Vite registrofarfalla | not available |
| 38 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 39 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 40 | 12775.053 | BUSH LOOSE LEVER DFT , DFTA | £7.13 |
| 41 | 45069.015 | Loose Lever DFT / DFTA / DMTR / DMTL | £15.26 |
| 42 | 12750.087 | Bush Throttle shaft DFT / DMTR / DMTL | £8.04 |
| 43 | 47610.109 | Spring Throttle Return Outer | £4.66 |
| 44 | 45136.052 | Lever Throttle shaft DAT, DFT / DFTA / DMTR / DMTL | £6.73 |
| 45 | 55555.019 | Throttle shaft shim (now 5555501600) | £1.66 |
| 46 | 47610.091 | Spindles return spring | not available |
| 47 | 55510.087 | Spindles support piastrine retaining washer | not available |
| 48 | 52130.010 | WEBER CARBURETTOR SPINDLE BUSH / STRIP / SLEEVE | | £4.81 |
| 49 | 41535.003 | WEBER CARBURETTOR FUEL INLET UNION WASHER | £1.14 |
| 50 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 51 | 64750.052 | WEBER Idle Mixture Screw | £9.26 |
| 52 | 43840.014 | Idle de! cut-off valve | not available |
| 53 | 10000.500 | Primary throttle spindle | not available |
| 54 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 55 | 47407.048 | WEBER CARBURETTOR PUMP DIAPHRAGM (now 47407.249) | £24.78 |
| 56 | 32486.070 | Pump cover | not available |
| 57 | 64565.001 | Pump cover fixing screw | £1.82 |
| 58 | 34710.003 | WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT | M7 | £1.28 |
| 59 | 55520.004 | WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER | £1.66 |
| 60 | 12775.042 | Fast idle loose lever bush | not available |
| 61 | — | Friction washer | not available |
| 62 | 45067.062 | Fast idle control loose lever | not available |
| 63 | 14850.141 | Pump control cam | not available |
| 64 | 12750.118 | Cam spacer | not available |
| 65 | 47610.096 | Vent control loose lever spring | not available |
| 66 | 55525.001 | WEBER CARBURETTOR M5 SPRING WASHER (now 99900.024) | £0.30 |
| 67 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 68 | 55510.081 | Secondary spindle shim washer | not available |
| 69 | 47600.191 | SPRING | £2.04 |
| 70 | 41565.001 | WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) | £6.20 |
| 71 | 76407.050 | WEBER CARBURETTOR PUMP JET | £14.01 |
| 72 | 73405.115 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 73 | 73405.135 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 73 | 61450.229 | WEBER CARBURETTOR EMULSION TUBE | £18.29 |
| 74 | 77501.170 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 75 | 77501.220 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 75 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 76 | 61280.108 | Vent control link rod | not available |
| 77 | 47407.182 | Power full valve diaphragm | not available |
| 78 | 32384.050 | Power full valve cover | not available |
| 79 | 64565.001 | Power full valve cover fixing screw | £1.82 |
| 80 | 45067.075 | Vent control loose lever | not available |
| 81 | 12775.057 | Stiato control lever bush | not available |
| 82 | 64700.012 | WEBER ICT RETURN SPRING BRACKET SCREW (now 64695022) | £2.90 |
| 83 | 64700.011 | Fast idle device tissaqgio screw | not available |
| 84 | 31800.030 | Minimd accelerato device | not available |
| 85 | 57804.236 | Choke device | £47.95 |
| 86 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 87 | 64895.010 | Diaphragm adjusting screw | not available |
| 88 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 89 | 32384.047 | Diaphragm cover | not available |
| 90 | 47600.092 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £9.05 |
| 91 | 47407.133 | Diaphragm | £30.82 |
| 92 | 47605.005 | Spring | not available |
| 93 | 64700.006 | Choke fixing screw | not available |
| 94 | 55510.107 | Choke dispositive screws washer | not available |
| 95 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 96 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 97 | 41705.048 | Carburettor cover gasket | not available |
| 98 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

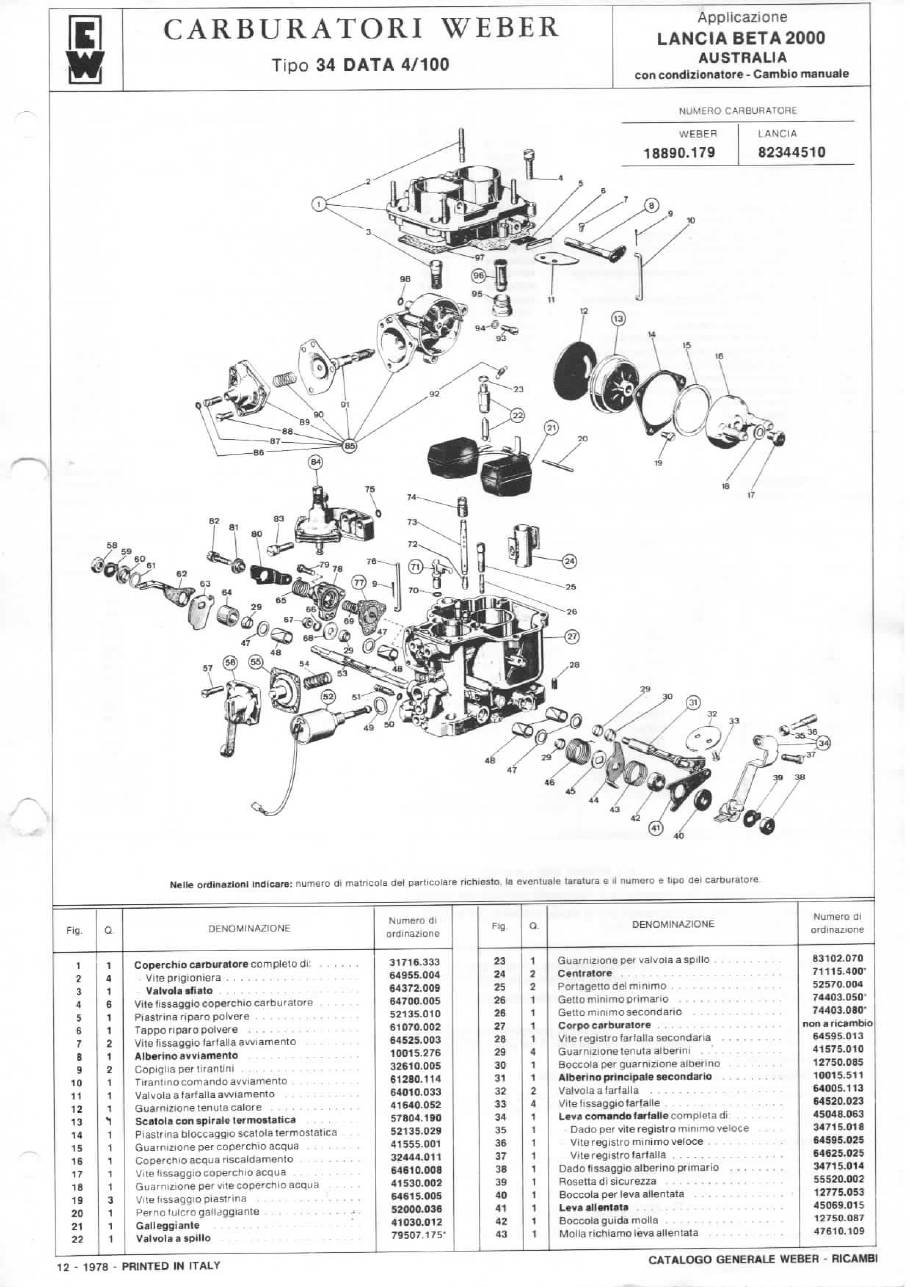

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
