Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 34 DAT Carburettor Service Kit — £21.02
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 83102.070 | WEBER CARBURETTOR NEEDLE VALVE WASHER | £1.02 |
| 2 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 3 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 4 | 52570.004 | WEBER CARBURETTOR IDLE JET HOLDER | £9.86 |
| 5 | 74403.050 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 6 | 74403.080 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 7 | 10015.276 | Choke spindle | not available |
| 8 | 64595.013 | SCREW FOR WEBER DMTL / DFT CARBURETTORS | £5.07 |
| 9 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 10 | 12750.085 | WEBER Carburettor throttle spindle / shaft bush | £3.06 |
| 11 | 10015.511 | Secondary main spindle 1 30 41640.052 heat sealing gasket | not available |
| 12 | 64005.113 | Butterfly valve 2 31 57804.190 thermostatic coil housing (now 64005.018) | £15.67 |
| 13 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 14 | 45048.063 | Butterfly control lever 1 33 41555.001 water cover guamnizione | not available |
| 15 | 34715.018 | Nut M5 fine thread | £1.49 |
| 16 | 64595.025 | Fast idle adjusting screw 35.1 64610.008 water cover fixing screw | £8.35 |
| 17 | 64625.025 | Butterfly adjusting screw 1 36 41530.002 water cover screw gasket | not available |
| 18 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 19 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 20 | 12775.053 | BUSH LOOSE LEVER DFT , DFTA | £7.13 |
| 21 | 45069.015 | Loose Lever DFT / DFTA / DMTR / DMTL | £15.26 |
| 22 | 12750.087 | Bush Throttle shaft DFT / DMTR / DMTL | £8.04 |
| 23 | 47610.109 | Spring Throttle Return Outer | £4.66 |
| 24 | 45136.052 | Lever Throttle shaft DAT, DFT / DFTA / DMTR / DMTL | £6.73 |
| 25 | 55555.019 | Throttle shaft shim (now 5555501600) | £1.66 |
| 26 | 47610.091 | Spindles return spring | not available |
| 27 | 55510.087 | WASHER | £1.66 |
| 28 | — | Spindles support plate | not available |
| 29 | 41535.003 | WEBER CARBURETTOR FUEL INLET UNION WASHER | £1.14 |
| 30 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 31 | 64750.051 | WEBER CARBURETTOR INTERNAL MIXTURE SCREW | £8.77 |
| 32 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 33 | 43840.014 | Idle cut-off valve 52.01 | not available |
| 34 | 10000.500 | Primary throttle spindle | not available |
| 35 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 36 | 47407.048 | WEBER CARBURETTOR PUMP DIAPHRAGM (now 47407.249) | £24.78 |
| 37 | 32486.070 | Pump cover | not available |
| 38 | 64565.001 | Pump cover fixing screw s74 | £1.82 |
| 39 | 34710.003 | WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT | M7 | £1.28 |
| 40 | 55520.004 | WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER | £1.66 |
| 41 | 12775.042 | Fast idle loose lever bush | not available |
| 42 | 55530.002 | WEBER CARBURETTOR WASHER | £1.53 |
| 43 | 45067.062 | Fast idle control loose lever | not available |
| 44 | 14850.141 | Pump control cam | not available |
| 45 | 12750.118 | Cam spacer | not available |
| 46 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 47 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 48 | — | Secondary spindle shim washer | not available |
| 49 | 47600.191 | SPRING | £2.04 |
| 50 | 41565.001 | WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) | £6.20 |
| 51 | 76407.050 | WEBER CARBURETTOR PUMP JET | £14.01 |
| 52 | 73405.115 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 53 | 73405.135 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 54 | 61450.229 | WEBER CARBURETTOR EMULSION TUBE | £18.29 |
| 55 | 61450.229 | WEBER CARBURETTOR EMULSION TUBE | £18.29 |
| 56 | 77501.170 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 57 | 77501.220 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 58 | 31800.030 | Fast idle capsule | not available |
| 59 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 60 | 32384.046 | FULL POWER COVER | WEBER ICH & DFT CARBURETTORS | £24.46 |
| 61 | 64565.001 | Power full valve cover fixing screw | £1.82 |
| 62 | 64700.011 | Fast idle capsule fixing screw | not available |
| 63 | 47407.182 | Power full valve diaphragm | not available |
| 64 | 57804.437 | Choke device | £47.95 |
| 65 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 66 | 64895.010 | WEBER DHTA | DATR VACUUM UNIT SCREW | £4.46 |
| 67 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 68 | 32384.047 | Diaphragm cover | £24.46 |
| 69 | 47600.092 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £9.05 |
| 70 | 47407.224 | Diaphragm | not available |
| 71 | 47605.005 | Choke spring | not available |
| 72 | 64700.006 | Choke device fixing screw | not available |
| 73 | 55510.038 | WEBER Carburettor Choke Housing & Power Valve Mounting Screw Washer | M4 | £1.66 |
| 74 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 75 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 76 | 41705.041 | Carburettor cover gasket | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

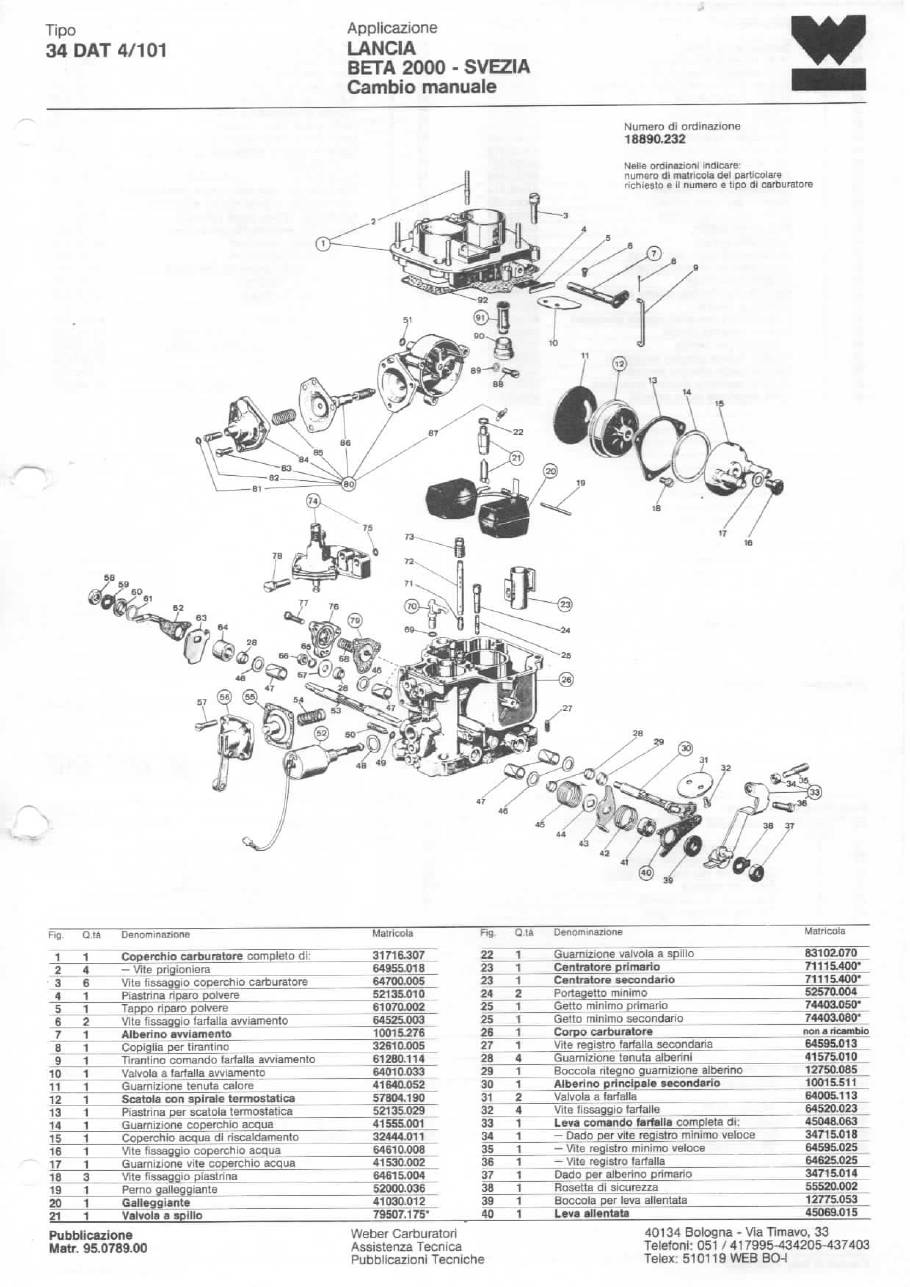

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
