Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 34 DAT Carburettor Service Kit — £21.02
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 31716.387 | Carburettor cover | not available |
| 2 | 64955.030 | WEBER CARBURETTOR STUD | £4.42 |
| 3 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 4 | 52135.010 | Dust shield plate | not available |
| 5 | 12750.111 | Choke spindles bush | not available |
| 6 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 7 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 8 | 32610.003 | Link rods split pin | £0.91 |
| 9 | 10015.283 | Secondary choke spindle | not available |
| 10 | 64010.029 | Choke butterfly | not available |
| 11 | 61280.129 | Levers collegamento link rod | not available |
| 12 | 61280.114 | Choke control link rod | £13.58 |
| 13 | 10015.282 | Primary choke spindle | not available |
| 14 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 15 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 16 | 55510.038 | WEBER Carburettor Choke Housing & Power Valve Mounting Screw Washer | M4 | £1.66 |
| 17 | 64700.006 | Choke device fixing screw | not available |
| 18 | 52000.036 | WEBER Float pin | £2.88 |
| 19 | 41640.052 | WEBER WATER-CHOKE CHOKE HOUSING PLATE SEAL | £4.22 |
| 20 | 57804.309 | Thermostatic coil housing | £47.95 |
| 21 | 52135.029 | Choke Retaining Plate ring | £7.01 |
| 22 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 23 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 24 | 32444.011 | WEBER ADF, ADFA, ADHA, DAT, DATA, DATR CARBURETTOR CHOKE COVER | £31.22 |
| 25 | 41530.002 | WEBER WATER CHOKE HOUSING SCREW ALUMINIUM WASHER M7 | £0.84 |
| 26 | 64610.008 | WEBER CARBURETTOR CHOKE HOUSING FIXING SCREW | £2.90 |
| 27 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 28 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 28 | 52570.004 | WEBER CARBURETTOR IDLE JET HOLDER | £9.86 |
| 29 | 74403.050 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 29 | 74403.050 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 30 | 64595.013 | SCREW FOR WEBER DMTL / DFT CARBURETTORS | £5.07 |
| 31 | 52130.010 | WEBER CARBURETTOR SPINDLE BUSH / STRIP / SLEEVE | | £4.81 |
| 32 | 55510.087 | WASHER | £1.66 |
| 33 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 34 | 12750.085 | WEBER Carburettor throttle spindle / shaft bush | £3.06 |
| 35 | 10015.511 | Secondary throttle spindle | not available |
| 36 | 64005.113 | Throttle plate (now 64005.018) | £15.67 |
| 37 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 38 | 45041.210 | Farfalle compieta control lever | not available |
| 39 | 34715.018 | Nut M5 fine thread | £1.49 |
| 40 | 64595.025 | Fast idle adjusting screw | £8.35 |
| 41 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 42 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 43 | 12775.053 | BUSH LOOSE LEVER DFT , DFTA | £7.13 |
| 44 | 45069.015 | Loose Lever DFT / DFTA / DMTR / DMTL | £15.26 |
| 45 | 12750.087 | Bush Throttle shaft DFT / DMTR / DMTL | £8.04 |
| 46 | 47610.109 | Spring Throttle Return Outer | £4.66 |
| 47 | 45136.052 | Lever Throttle shaft DAT, DFT / DFTA / DMTR / DMTL | £6.73 |
| 48 | 55555.019 | Throttle shaft shim (now 5555501600) | £1.66 |
| 49 | 57610.118 | Spindles return spring | not available |
| 50 | — | Carburettor body — not supplied separately | not available |
| 51 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 52 | 64625.017 | Throttle stop screw | £6.38 |
| 53 | 41535.003 | WEBER CARBURETTOR FUEL INLET UNION WASHER | £1.14 |
| 54 | 61015.015 | Cut-off valve drilling chiusura plug | not available |
| 55 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 56 | 47407.048 | WEBER CARBURETTOR PUMP DIAPHRAGM (now 47407.249) | £24.78 |
| 57 | 32486.070 | Pump cover | not available |
| 58 | 64565.001 | Pump cover fixing screw | £1.82 |
| 59 | 12750.118 | Spindle spacer | not available |
| 60 | 61075.014 | WEBER Carburettor Screw Plug / Bung | Tamper proof | £7.96 |
| 61 | 64750.051 | WEBER CARBURETTOR INTERNAL MIXTURE SCREW | £8.77 |
| 62 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 63 | 55510.081 | WEBER CARBURETTOR SECONDARY THROTTLE SHAFT SPINDLE WASHER | £1.66 |
| 64 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 65 | — | Secondary spindle fixing nut | not available |
| 66 | 10000.500 | Main spindle | not available |
| 67 | 64565.001 | Power full valve cover fixing screw | £1.82 |
| 68 | 32384.046 | FULL POWER COVER | WEBER ICH & DFT CARBURETTORS | £24.46 |
| 69 | 47600.183 | Power full valve spring | not available |
| 70 | — | Power full valve diaphragm 861 | not available |
| 71 | 41565.001 | WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) | £6.20 |
| 72 | 76407.050 | WEBER CARBURETTOR PUMP JET | £14.01 |
| 73 | 73405.110 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 73 | 73405.125 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 74 | 61450.229 | WEBER CARBURETTOR EMULSION TUBE | £18.29 |
| 75 | 61450.229 | WEBER CARBURETTOR EMULSION TUBE | £18.29 |
| 75 | 77501.175 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 76 | 77501.210 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 77 | 41030.012 | Float | not available |
| 77 | 79518.175 | WEBER CARBURETTOR NEEDLE VALVE & SEAT ASSEMBLY | £13.87 |
| 78 | 83102.070 | WEBER CARBURETTOR NEEDLE VALVE WASHER | £1.02 |
| 79 | 31800.030 | Fast idle capsule | not available |
| 80 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 81 | 64700.011 | Fast idle capsule fixing screws | not available |
| 82 | 14850.148 | Pump control cam | not available |
| 83 | 45067.062 | Fast idle control loose lever | not available |
| 84 | 55530.002 | WEBER CARBURETTOR WASHER | £1.53 |
| 85 | 12775.042 | Leva allentata com. min. acceler bush | not available |
| 86 | 55520.004 | WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER | £1.66 |
| 87 | 34710.003 | WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT | M7 | £1.28 |
| 88 | 57804.311 | Choke device | £47.95 |
| 89 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 90 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 91 | 64895.010 | WEBER DHTA | DATR VACUUM UNIT SCREW | £4.46 |
| 92 | 32384.047 | Diaphragm cover | £24.46 |
| 93 | 47600.092 | WEBER CARBURETTOR PUMP DIAPHRAGM SPRING | £9.05 |
| 94 | 47407.183 | Diaphragm 34 DATRA & 32 DRTA | £40.14 |
| 95 | 41565.008 | WEBER CARBURETTOR AUTO-CHOKE & VACUUM TAKE-OFF O-RING SEAL | £2.13 |
| 96 | 47605.025 | CHOKE LEVER SPRING | £4.66 |
| 97 | 41705.041 | Carburettor cover gasket | not available |
| 98 | 12750.112 | Choke spindles bush | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

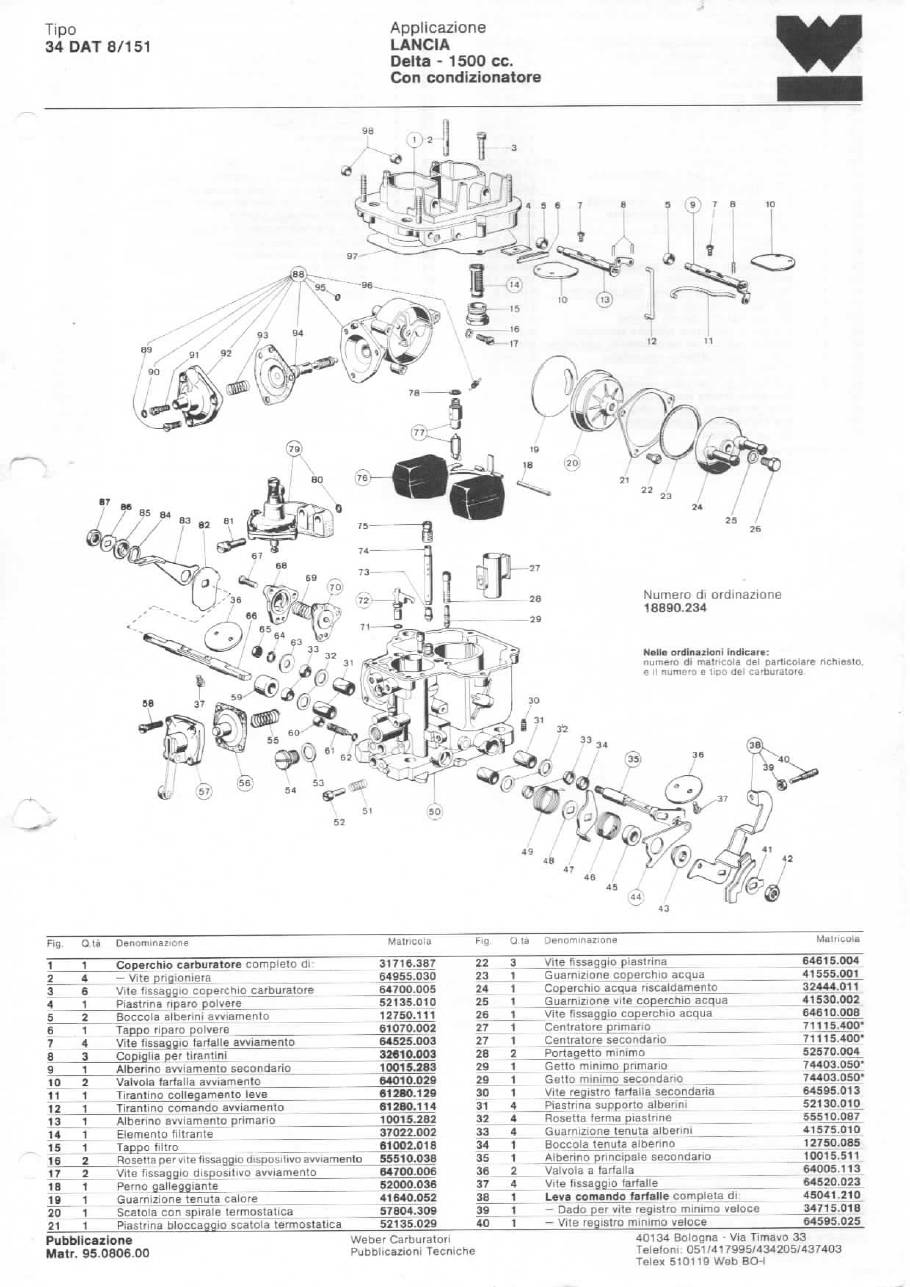

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
