£5.99 ex VAT£7.19 inc VAT
Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: WEBER 34 DAT Carburettor Service Kit — £21.02
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | — | Carburettor cover | not available |
| 2 | 64955.030 | WEBER CARBURETTOR STUD | £4.42 |
| 3 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 4 | 12750.111 | Choke spindles bush | not available |
| 5 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 6 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 7 | 32610.003 | Split pin | £0.91 |
| 8 | 10015.282 | Secondary choke spindle | not available |
| 9 | 64010.029 | Choke valve | not available |
| 10 | 12750.085 | WEBER Carburettor throttle spindle / shaft bush | £3.06 |
| 11 | 10015.282 | Primary choke spindle | not available |
| 12 | 37022.002 | WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT | £5.03 |
| 13 | 61002.018 | WEBER CARBURETTOR BRASS FUEL FILTER COVER | £6.85 |
| 14 | 64700.006 | Choke device fixing screw | not available |
| 15 | 41640.052 | WEBER WATER-CHOKE CHOKE HOUSING PLATE SEAL | £4.22 |
| 16 | 52000.036 | WEBER Float pin | £2.88 |
| 17 | 57804.309 | Thermostatic coil housing | £47.95 |
| 18 | 52135.029 | Choke Retaining Plate ring | £7.01 |
| 19 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 20 | 41555.001 | WEBER DGAV & DGAS CARBURETTOR AUTO-CHOKE / WATER HOUSING GASKET | £3.36 |
| 21 | 32444.020 | Choke Cover | £75.92 |
| 22 | 41535.043 | WEBER CARBURETTOR M7 WASHER | £2.77 |
| 23 | 64610.008 | WEBER CARBURETTOR CHOKE HOUSING FIXING SCREW | £2.90 |
| 24 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 25 | 71115.400 | WEBER DMTL / DAT / DFT, DRT / DST Etc.. Auxilliary Venturi | £36.83 |
| 26 | 52570.004 | WEBER CARBURETTOR IDLE JET HOLDER | £9.86 |
| 26 | 74403.050 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 27 | 74403.050 | WEBER CARBURETTOR IDLE JET | £3.21 |
| 28 | 64595.013 | SCREW FOR WEBER DMTL / DFT CARBURETTORS | £5.07 |
| 28 | 52130.010 | WEBER CARBURETTOR SPINDLE BUSH / STRIP / SLEEVE | | £4.81 |
| 29 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 30 | 10015.511 | Secondary throttle spindle | not available |
| 31 | 64005.113 | Butterfly valve (now 64005.018) | £15.67 |
| 32 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 33 | 45041.239 | Butterflies control lever | not available |
| 34 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 35 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 36 | 47610.118 | Spring Throttle shaft return | £5.23 |
| 37 | 10104.003 | Ammortizzatore | not available |
| 38 | 34715.008 | Fixing nut | not available |
| 39 | 64700.026 | Fixing screw (now 64695.024) | £2.90 |
| 40 | 47600.007 | WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING | £1.51 |
| 41 | 76407.050 | WEBER CARBURETTOR PUMP JET | £14.01 |
| 42 | 73405.112 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 43 | 73405.125 | WEBER CARBURETTOR MAIN JET | £3.11 |
| 44 | 61450.229 | WEBER CARBURETTOR EMULSION TUBE | £18.29 |
| 45 | — | Secondary emulsion tube | not available |
| 46 | 77501.175 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 47 | 77501.210 | WEBER CARBURETTOR AIR CORRECTOR JET | £4.15 |
| 48 | 31800.030 | Fast idle capsule | not available |
| 49 | — | Sealing o.r | not available |
| 50 | 41030.012 | Float | not available |
| 51 | 79518.175 | WEBER CARBURETTOR NEEDLE VALVE & SEAT ASSEMBLY | £13.87 |
| 52 | 83102.120 | WEBER DCOE & DCO/SP CARBURETTOR NEEDLE VALVE WASHER | £1.75 |
| 53 | 57804.533 | Choke device | £47.95 |
| 54 | 64560.004 | WEBER CARBURETTOR DIAPHRAGM COVER FIXING SCREW | £1.23 |
| 55 | 64895.010 | WEBER DHTA | DATR VACUUM UNIT SCREW | £4.46 |
| 56 | 47600.189 | Diaphragm spring 74 secondary spindle | not available |
| 57 | 47407.224 | Diaphragm 4 16 secondary spindle | not available |
| 58 | 47605.025 | CHOKE LEVER SPRING | £4.66 |
| 59 | 12750.112 | Choke spindles bush | not available |
| 60 | 41565.001 | WEBER CARBURETTOR PUMP JET O-RING / SEAL (now 41565.039) | £6.20 |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

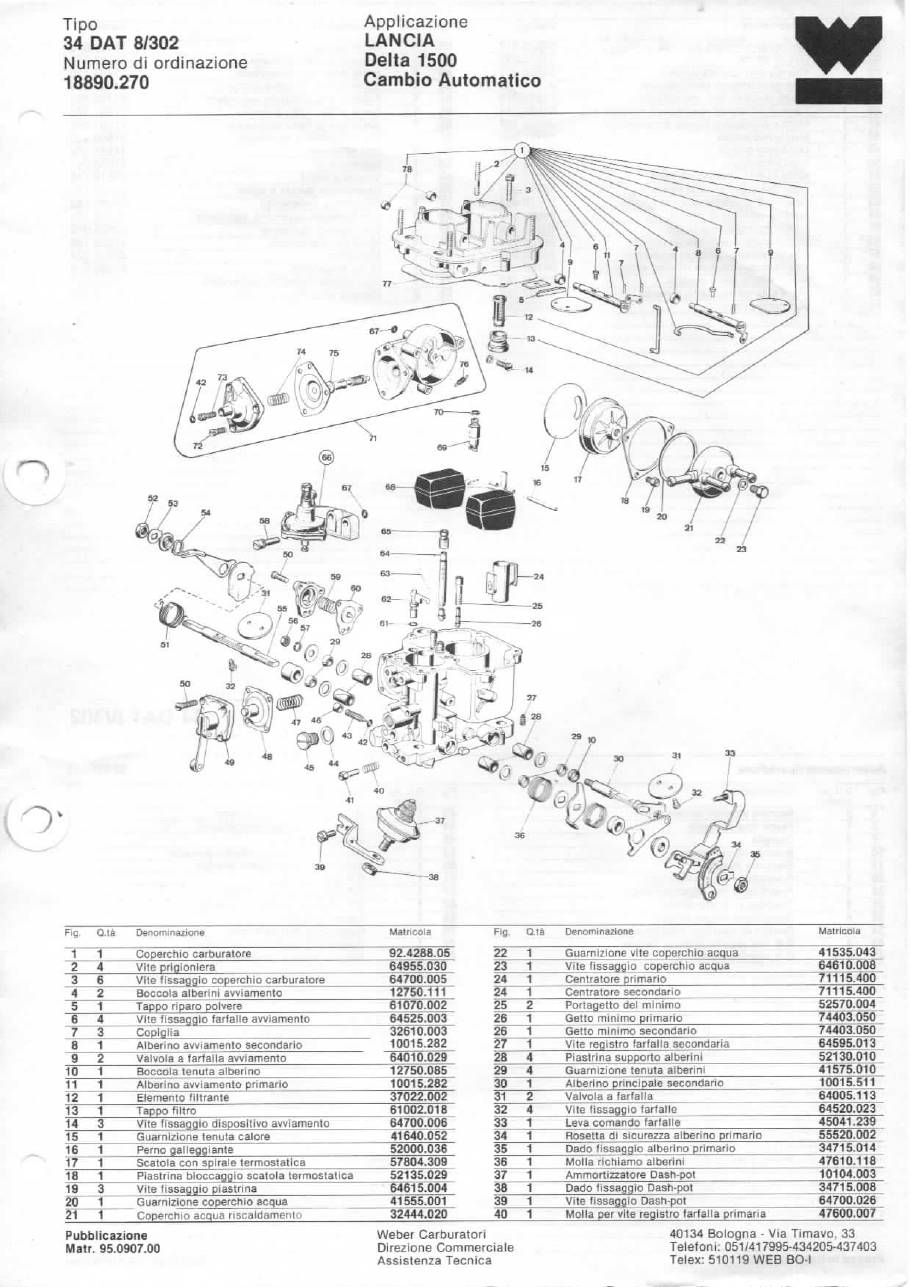

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
__________________________________________________________________________________________________________________
After purchase, you will be redirected to this page pictured below, where you can download the product.
