Carburettor parts list in below table — click on available parts to view them or order them in the shop.
Service kit for this carburettor: 32DMTR Service kit X19 — £39.09 — the kit number printed on this sheet
Original factory jetting: item 4 — 0.40, item 24 — 0.45, item 33 — 1.12, item 52 — 1.90, item 58 — 2.20, item 59 — 0.70, item 63 — 1.15. These are the sizes this carburettor left the factory with.
| Item | Weber no. | Part | Price |
|---|---|---|---|
| 1 | 64625.039 | Primary butterfly adjusting screw #1 31716.408 ai carburettor cover | not available |
| 2 | 58702.046 | Vite prigioniera 64960.008 20 «(1 Supporto guaina | not available |
| 4 | 64565.001 | WEBER DCNF PUMP COVER SCREW COUNTERSUNK | FITS WEBER ICH / ICEV 32/34 DFT / DGV & DGAV CARBURETTORS. | £1.82 |
| 5 | 32486.070 | Pump cover #1 22 61002.018 filter inspection plug | not available |
| 6 | 47407.050 | WEBER CARBURETTOR PUMP DIAPHRAGM | RIGID (now 47407.261L) | £28.45 |
| 6 | 47600.107 | WEBER CARBURETTOR PUMP DIAPHRAGM LOADING SPRING | £1.78 |
| 7 | 41565.010 | WEBER carburettor idle jet / mixture screw O-Ring Seal (now 41565.040) | £5.64 |
| 8 | 64750.051 | WEBER CARBURETTOR INTERNAL MIXTURE SCREW | £8.77 |
| 9 | 61075.013 | WEBER CARBURETTOR GALLERY / CORE PLUG / PROGRESSION PLUG | £5.08 |
| 9 | 10000.500 | Primary main spindle 1 28 77501.220° secondary correction air jet | not available |
| 10 | 10001.484 | Oversize primary main spindle 4 2 61450.229* emulsion tube | not available |
| 11 | 50002.008 | Getto principale primario 73405.115" 29 «1 Otturatore | not available |
| 12 | 14850.106 | oh] 1 Getto principale secondario 73405.112" 0 1 Camma comando pompa | not available |
| 12 | 55520.004 | WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER | £1.66 |
| 13 | 34710.003 | WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT | M7 | £1.28 |
| 13 | 47600.027 | WEBER CARBURETTOR MAIN SHAFT RETAINING SPRING | £3.75 |
| 14 | 34705.001 | WEBER CARBURETTOR M5 NUT | £1.04 |
| 15 | 55525.001 | WEBER DGMS DGAS DGES IMB DGS DIC DFE & DFM Carburettor secondary main shaft spring washer | £1.04 |
| 16 | 76407.040 | WEBER CARBURETTOR PUMP JET | £14.01 |
| 17 | 41575.010 | WEBER CARBURETTOR THROTTLE SPINDLE / SHAFT SEAL BUSH 'DUST COVER' | £5.12 |
| 18 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 19 | — | Weber Carburatori 40134 Bologna Via Timavo, | not available |
| 20 | 64595.013 | SCREW FOR WEBER DMTL / DFT CARBURETTORS | £5.07 |
| 21 | 61400.015 | Tubo comando depressione sgolfamento | not available |
| 22 | 12750.085 | WEBER Carburettor throttle spindle / shaft bush | £3.06 |
| 23 | 64005.113 | Throttle plate (now 64005.018) | £15.67 |
| 24 | 64520.023 | WEBER CARBURETTOR THROTTLE VALVE BUTTERFLY SCREW | £1.3 |
| 25 | 10015.511 | Secondary main allberino | not available |
| 26 | 10016.488 | Oversize secondary main spindle | not available |
| 27 | 45041.192 | Butterfly control lever | not available |
| 28 | 64595.009 | WEBER CARBURETTOR FAST IDLE ADJUSTMENT SCREW | £10.02 |
| 29 | 34715.006 | WEBER CARBURETTOR M5 NUT (now 34705.001) | £1.04 |
| 30 | 55520.002 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT LOCK TAB WASHER | £0.84 |
| 31 | 34715.014 | WEBER CARBURETTOR SPINDLE / THROTTLE SHAFT NUT | M8x1.0mm | £1.04 |
| 32 | 12775.053 | BUSH LOOSE LEVER DFT , DFTA | £7.13 |
| 33 | 45069.015 | Loose Lever DFT / DFTA / DMTR / DMTL | £15.26 |
| 34 | 47610.092 | Loose lever return spring | not available |
| 35 | 12750.087 | Bush Throttle shaft DFT / DMTR / DMTL | £8.04 |
| 36 | 45136.052 | Lever Throttle shaft DAT, DFT / DFTA / DMTR / DMTL | £6.73 |
| 37 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 38 | 55510.002 | Choke Lever Mounting Washer | £1.23 |
| 39 | 55555.019 | Throttle shaft shim (now 5555501600) | £1.66 |
| 40 | 47610.091 | Spindles return spring | not available |
| 41 | 47610.058 | Choke lever return spring | not available |
| 42 | 45202.091 | Choke control lever | not available |
| 43 | 64615.004 | WEBER Carburettor Screw | £2.90 |
| 44 | 61287.023 | Choke control link rod | not available |
| 45 | 32610.005 | WEBER CARBURETTOR SPLIT PIN | £0.91 |
| 46 | 57804.308 | Unloader device | £47.95 |
| 47 | 64700.012 | WEBER ICT & DCNF CARBURETTOR THROTTLE / CHOKE BRACKET SCREW | |
| 48 | 41705.039 | Carburettor cover gasket | not available |
| 49 | 64700.005 | Carburettor cover fixing screw (now 64695.005) | £3.74 |
| 50 | 10140.501 | WEBER DGAS,DGMS,DGAV,DGEV & DGV CARBURETTOR CIRCLIP | £1.02 |
| 51 | 10140.502 | WEBER DMTE, DIR, DMTL, DRTC, DMTR, DGS, DCNVA, IDA, IDA3C Carburettor Circlip / clip 'e – clip' | £1.36 |
| 52 | 55510.034 | Washer for Weber DGAS, DGES & DGMS Carburettors | £1.23 |
| 53 | 45069.026 | LEVER DMTL / DMTRA | £18.92 |
| 54 | 64525.003 | WEBER CARBURETTOR CHOKE FLAP MOUNTING SCREW (now S56801052) | £2.26 |
| 55 | 10015.271 | 73) 1 Alberino awiamento | not available |
| 56 | 64010.033 | Choke Plate DMTL | £10.19 |
| 57 | 61070.002 | WEBER CARBURETTOR CHOKE LINKAGE DUST COVER / DUST SEAL | £2.12 |
| 58 | 52135.010 | Dust shield plate | not available |
Hello,
This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.
You will receive the link to download the PDF sheet, as soon as you have completed your order.
You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.
You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.
We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.
But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).
The diagram is mostly in English, but some variations might be in Italian or French.

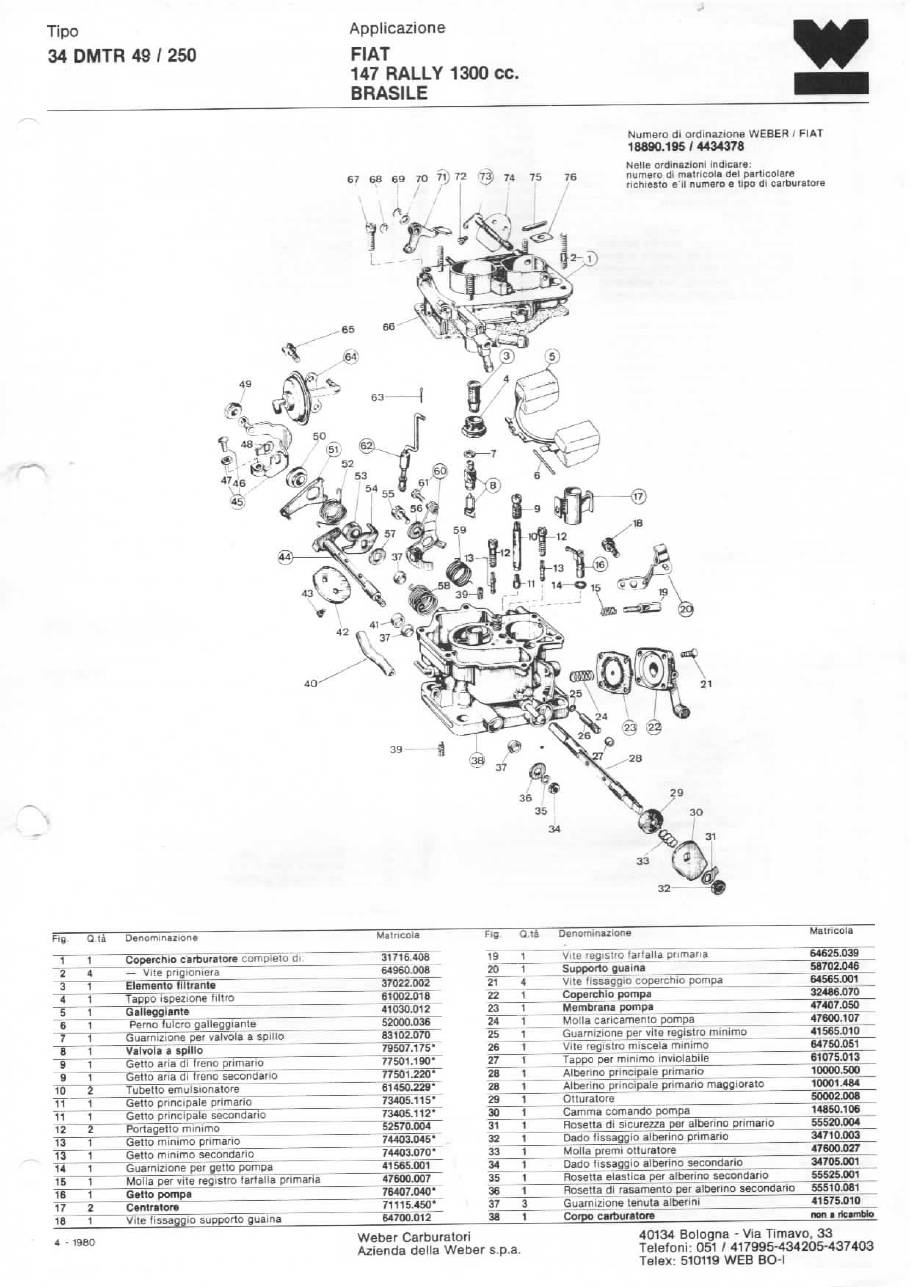

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.
The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).
This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.
This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!
Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.
If you need any assistance, email us at [email protected]
Thanks,
Emmanuel
Classic Carbs UK
