Name: WEBER CARBURETTOR 40 IDA 3C-3C1 PORSCHE TYPE 911 2000 CC diagram - Classic Carbs UK
Price: 5.99 GBP
Availability: InStock

Description

Parts on this drawing

Carburettor parts list in below table — click on available parts to view them or order them in the shop.

Service kit for this carburettor: 40/46mm Triple Weber Service Kit — £59.95

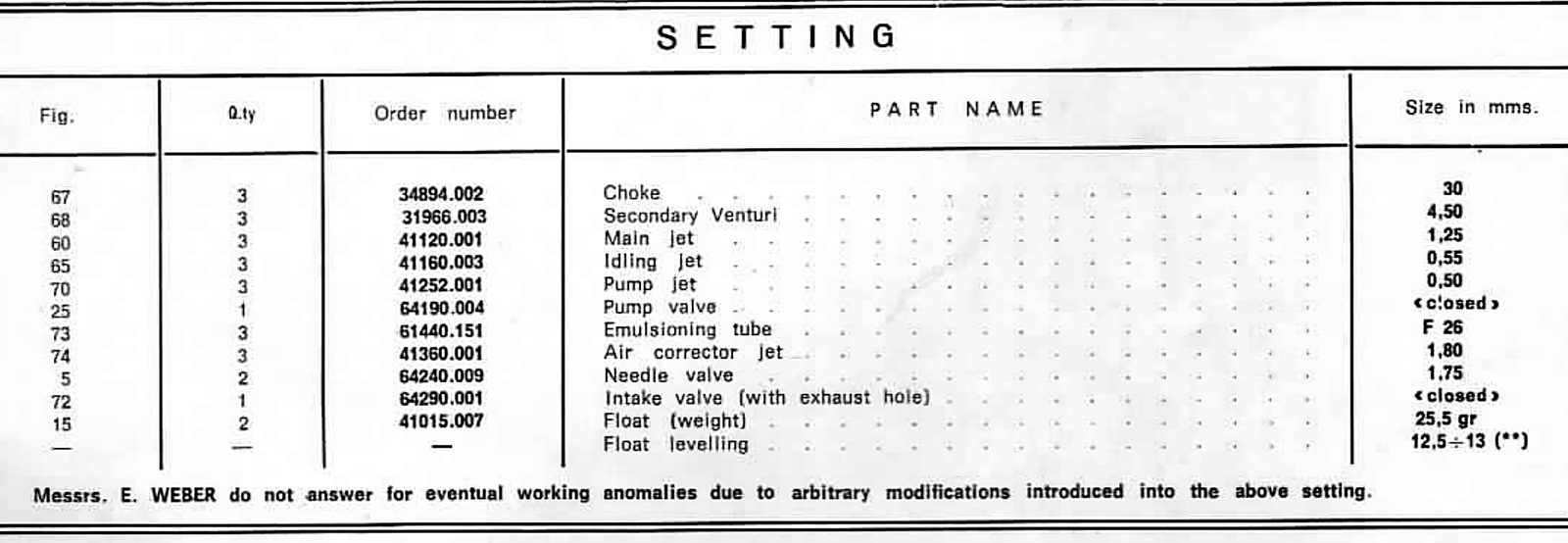

Original factory settings for this carburettor

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.

Tap the table to open it full size.

Item	Weber no.	Part	Price
1	10015.415	WEBER IDA3C CARBURETTOR SPINDLE / THROTTLE SHAFT – SHORT	£42.80
2	10016.443	Stud. 64970.002 21 1 Spindle oversize	not available
3	64955.011	WEBER Long Pump Housing Stud 64955.011	£16.15
4	64955.020	WEBER Short Pump Housing Stud 64955.020	£15.42
5	47600.128	WEBER TRIPLE-BARREL CARBURETTOR ACCELERATOR PUMP VALVE SPRING	£11.93
5	64190.004	WEBER IDA3C, IDL3C, IF3C, IDTP3C & IDS3C Carburettor Pump Valve	£7.73
6	47405.011	WEBER IDA3C CARBURETTOR PUMP HOUSING MEMBRANE GASKET SEAL	£23.86
7	39174.002	Pump Body IDA3C	£30.65
8	47600.012	WEBER 3-Barrel / TRIPLE-BARREL CARBURETTOR ACCELERATOR PUMP SPRING \| 47600.012	£4.66
9	47407.010	WEBER IDA3C CARBURETTOR PUMP DIAPHRAGM	£18.67
10	32486.009	WEBER TRIPLE-BARREL CARBURETTOR PUMP COVER CASTING ASSEMBLY	£82.80
11	32486.010	Pump Body Cover IDA3C	£82.80
12	55525.007	M4 Washer IDA3C Pump housing nut	£0.55
13	34705.003	Gasket.	not available
14	61287.002	WEBER 3-BARREL CARBURETTOR PUMP ROD ASSEMBLY	£42.34
15	32272.001	WEBER IDA3C / IDS / IDTP / IT / IF / IDL3C CARBURETTOR THROTTLE SHAFT COUPLING JOINT	£34.72
16	64600.001	WEBER CARBURETTOR GRUB SCREW M4 X 6MM	£5.85
17	55510.018	Gasket . 4 41530.017 37 3) Washer	not available
18	10005.407	WEBER 40 IDA3C CARBURETTOR THROTTLE SPINDLE / SHAFT (Long)	£40.50
19	10006.408	Spring. ‘ 47610.072 38 1 Spindle oversize	not available
20	32610.006	WEBER CARBURETTOR SPLIT PIN (now 32610.005)	£0.91
21	64895.003	Fulcrum Screw IDA3C	£10.54
22	45027.007	WEBER IDA3C / IF3C / IT / IDTP / IDL3C / IDS CARBURETTOR \| PUMP CAM	£18.48
23	61287.001	WEBER 3-BARREL CARBURETTOR PUMP ROD ASSEMBLY	£37.60
24	41565.002	WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045)	£2.13
25	58445.001	WEBER CARBURETTOR SPINDLE PUMP CAM ROLL PIN	£3.99
26	64005.087	Throttle	not available
27	64520.027	WEBER CARBURETTOR BUTTERFLY / THROTTLE VALVE SCREW (now S57392022)	£2.26
28	34715.007	Nut eee	not available
29	55520.008	Washer	not available
30	45034.028	Weber IDA3C Carburettor Spindle throttle lever \| Left hand ( L/H)	£22.86
31	45034.027	WEBER IDA3C CARBURETTOR SPINDLE THROTTLE LEVER (RIGHT-HAND)	£22.86
32	55555.019	Throttle shaft shim (now 5555501600)	£1.66
33	47610.071	WEBER CARBURETTOR THROTTLE RETURN SPRING	£15.64
34	47600.060	Spring	not available
35	47600.060	53-A] 3 Spring	not available
36	64590.005	Screw adjusting throttle	£6.26
37	61015.009	WEBER DCOE / IDA & IDA3C CARBURETTOR PROGRESSION HOLE COVER SCREW	£6.68
38	34705.006	WEBER IDA3C, IDF, IDS, IDL, IDT, IDTP, IF3C & IDAP CARBURETTOR NUT	£0.73
39	64750.002	WEBER CARBURETTOR AIR BY-PASS SCREW	£8.12
40	64840.002	Choke fixing screw	not available
41	41540.001	WEBER IDA3C / DCD / DCZ / IF3C / ICF CARBURETTOR MAIN JET HOLDER WASHER	£1.14
42	41120.001	WEBER CARBURETTOR MAIN JET (now 73801)	£2.69
43	52590.001	WEBER CARBURETTOR MAIN JET HOLDER	£12.58
44	64750.004	WEBER 3-BARREL CARBURETTOR IDLE MIXTURE SCREW	£11.47
45	41530.008	WEBER CARBURETTOR DRAIN PLUG COPPER WASHER (now 41540.013)	£3.20
46	61002.006	WEBER IDA & IDA3C CARBURETTOR FLOAT CHAMBER PLUG	£5.57
47	41160.003	WEBER CARBURETTOR IDLE JET (now 74401)	£4.96
48	52570.005	WEBER CARBURETTOR IDLE JET HOLDER	£4.15
49	34894.002	Choke	not available
50	31966.003	Sscondary Venturi	not available
51	41530.012	WEBER CARBURETTOR PUMP JET COPPER WASHER (now 41540.014)	£1.60
52	41252.001	WEBER 3-BARREL CARBURETTOR PUMP JET (now 76201)	£14.71
53	64290.005	WEBER CARBURETTOR PUMP JET DEMAND VALVE	£18.23
54	64290.001	Intake valve	not available
55	61440.151	WEBER CARBURETTOR EMULSION TUBE	£17
56	41360.001	WEBER CARBURETTOR AIR CORRECTOR JET (now 77201)	£3.04
57	41530.005	Gasket	not available
58	64955.005	WEBER CARBURETTOR STUD (now 64955.030)	£4.42
59	52150.006	RETURN SPRING ANCHOR PLATE 40 / 46 IDA3C	£4.17
60	52130.010	WEBER CARBURETTOR SPINDLE BUSH / STRIP / SLEEVE \|	£4.81

Hello,

This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.

You will receive the link to download the PDF sheet, as soon as you have completed your order.

You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.

You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.

We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.

But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).

The diagram is mostly in English, but some variations might be in Italian or French.

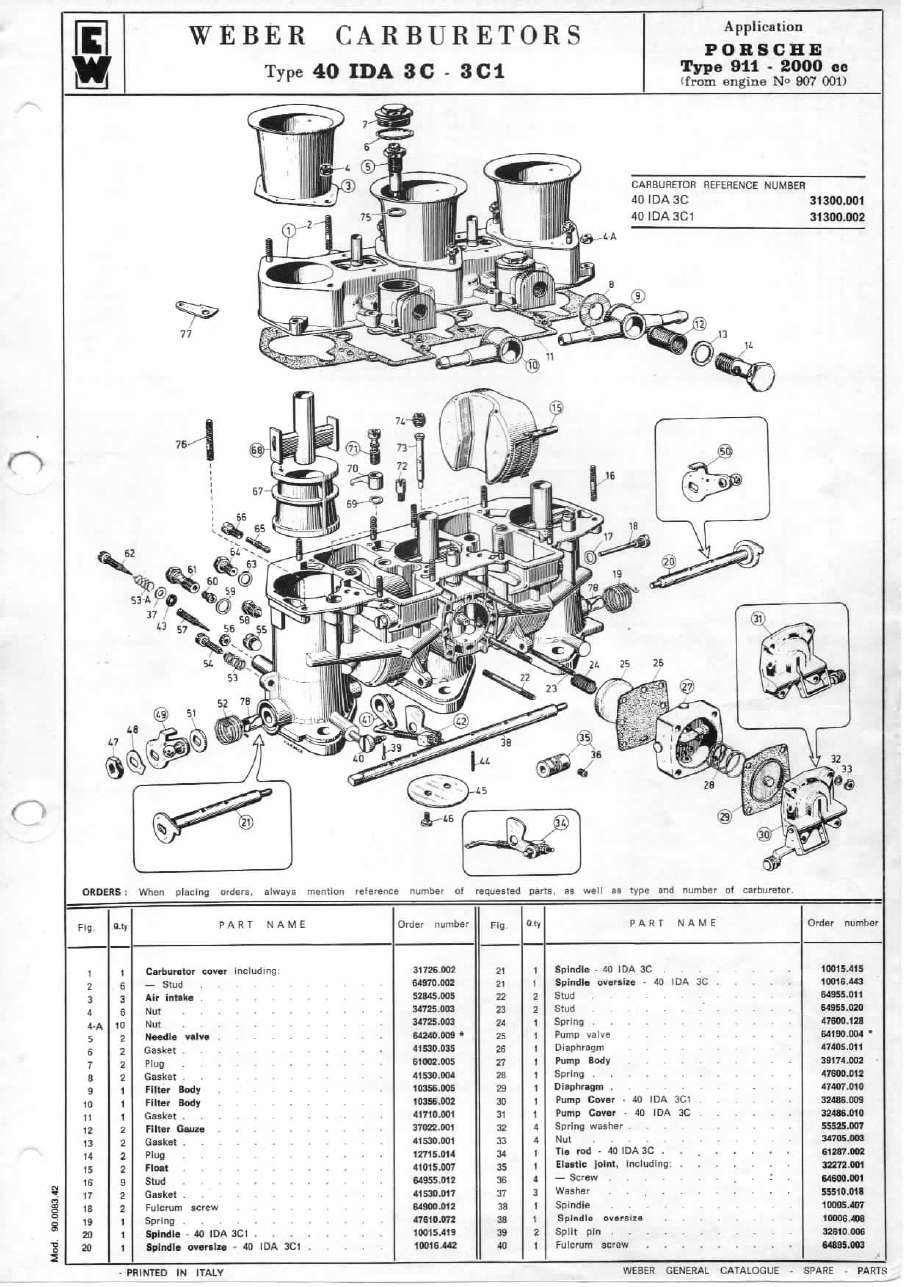

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.

The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).

This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.

This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!

Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.

If you need any assistance, email us at [email protected]

Thanks,

Emmanuel

Classic Carbs UK
