Name: WEBER CARBURETTOR 48 IDF 6 diagram - Classic Carbs UK
Price: 5.99 GBP
Availability: InStock

Description

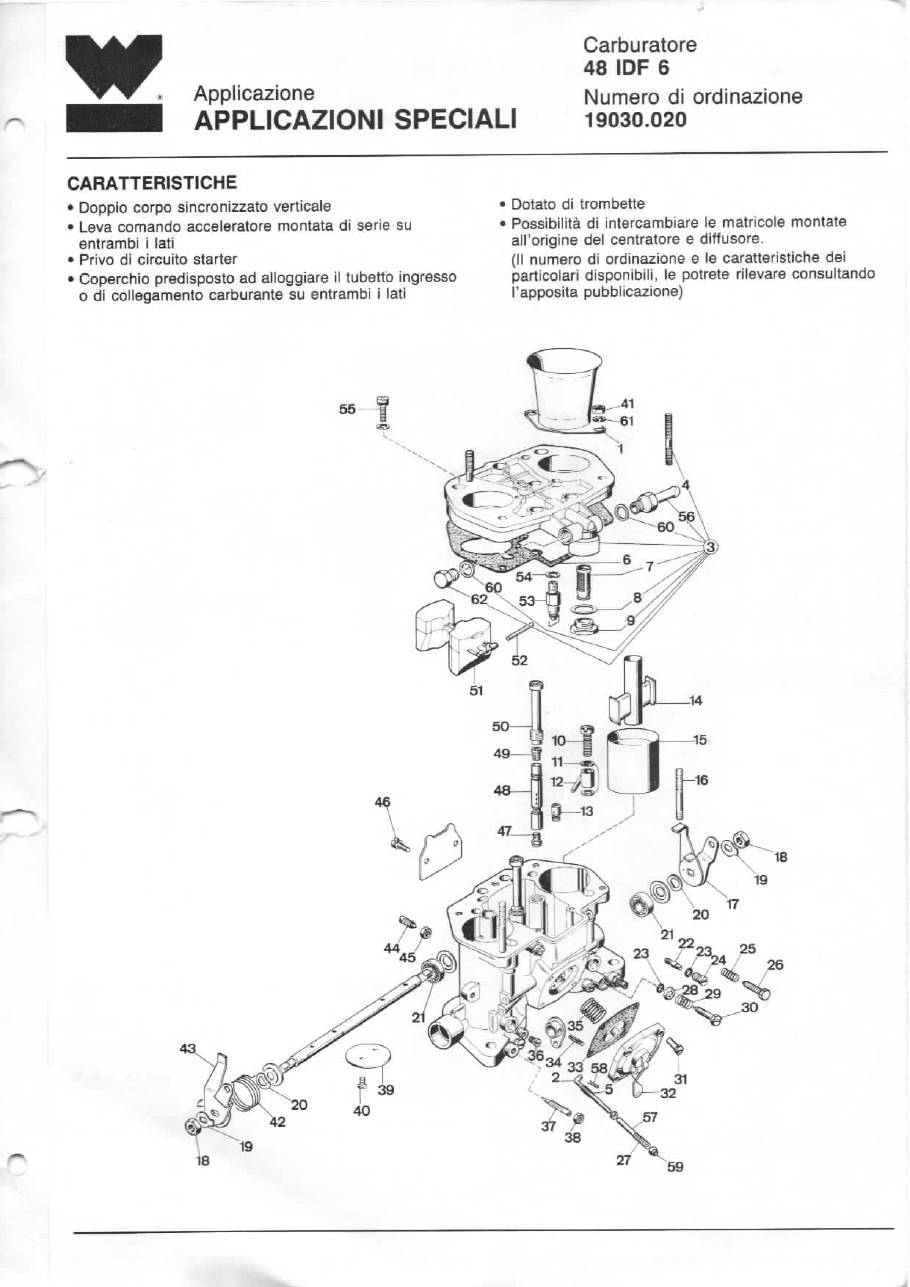

Parts on this drawing

Carburettor parts list in below table — click on available parts to view them or order them in the shop.

Service kit for this carburettor: WEBER 40 / 44 / 48 IDF CARBURETTOR Service Kit — £29.97

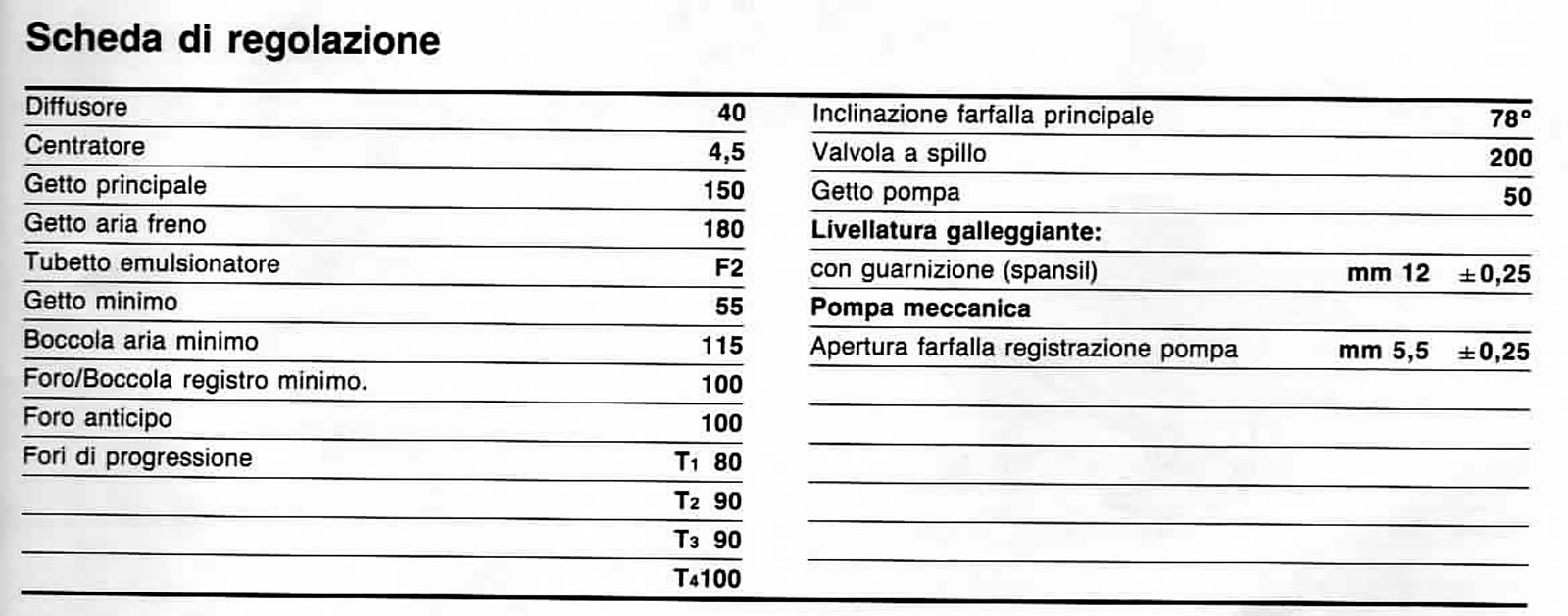

Original factory settings for this carburettor

Taken from the calibration table on the drawing. The calibration below is what this carburettor left the factory with. Sizes are in millimetres. Check what is actually fitted to yours before ordering.

Tap the table to open it full size.

Item	Weber no.	Part	Price
1	52845.014	GENUINE WEBER IDF 44 & 48 and WEBER 40mm 3-BARREL CARBURETTOR TRUMPET \| 56mm Tall	£37.43
2	61285.042	WEBER IDF & DCOM CARBURETTOR PUMP CONTROL ROD	£18.73
3	—	Carburettor cover	not available
4	64955.108	Stud	£3.26
5	47600.252	PUMP ROD SPRING \| WEBER IDF	£12.97
6	41705.087	WEBER IDF 48 CARBURETTOR TOP COVER PLATE GASKET (SPANISH TYPE)	£9.18
7	37022.002	WEBER CARBURETTOR INTERNAL FUEL FILTER ELEMENT	£5.03
8	41530.024	WEBER CARBURETTOR FUEL FILTER OUTER FIBRE SEAL/WASHER	£1.07
9	61002.010	WEBER CARBURETTOR FUEL FILTER BRASS COVER	£13.16
10	64290.016	WEBER IDF CARBURETTOR PUMP DEMAND VALVE	£19.89
11	41540.014	WEBER CARBURETTOR PUMP JET COPPER WASHER	£1.60
12	76210.050	WEBER IDF CARBURETTOR PUMP JET	£13.34
13	79701.000	WEBER DCOE PUMP EXHAUST // SPILL VALVE – PUMP EXHAUST/SPILL VALVE	£8.16
14	71124.450	Auxiliary venturi	not available
15	71513.400	WEBER 48 IDF VENTURI (40mm)	£27.49
16	64955.114	Stud	£11.84
17	45034.110	WEBER IDF CARBURETTOR THROTTLE CONTROL LEVER	£34.71
18	34710.003	WEBER CARBURETTOR SPINDLE / SHAFT & AUXILIARY VENTURI LOCKING NUT \| M7	£1.28
19	55520.004	WEBER CARBURETTOR SPINDLE NUT LOCK TAB LOCKING WASHER	£1.66
20	55530.005	WEBER CARBURETTOR WAVE / CURVED Locking WASHER	£5.10
21	32650.003	Cuscinetto	not available
22	74405.055	WEBER CARBURETTOR IDLE JET	£3.28
23	41565.002	WEBER CARBURETTOR IDLE JET & IDLE MIXTURE SCREW RUBBER O-RING / SEAL (now 41565.045)	£2.13
24	52570.006	WEBER IDLE JET HOLDER	£6.85
25	47600.007	WEBER CARBURETTOR IDLE MIXTURE & THROTTLE STOP SCREW SPRING	£1.51
26	64625.015	WEBER IDF CARBURETTOR THROTTLE STOP SCREW	£2.61
27	47600.251	WEBER IDF CARBURETTOR PUMP ROD SPRING	£10.96
28	58000.006	WEBER CARBURETTOR IDLE MIXTURE SCREW CUP WASHER	£2.95
29	47600.062	WEBER CARBURETTOR IDLE MIXTURE SCREW SPRING	£3.75
30	64755.013	WEBER IDF & DMTR CARBURETTOR IDLE MIXTURE SCREW	£18.39
31	64700.004	WEBER CARBURETTOR COLD START & PUMP COVER MOUNTING SCREW & WASHER (now 64695.012)	£2.90
32	32486.085	Weber IDF Pump Cover (Later Spanish Type)	£32.50
33	47407.207	WEBER IDF CARBURETTOR PUMP DIAPHRAGM	£26.13
34	58445.001	WEBER CARBURETTOR SPINDLE PUMP CAM ROLL PIN	£3.99
35	47600.250	WEBER IDF & DCOM CARBURETTOR PUMP DIAPHRAGM SPRING	£10.96
36	61015.005	WEBER CARBURETTOR BRASS PLUG COVER / SCREW	£1.91
37	64750.002	WEBER CARBURETTOR AIR BY-PASS SCREW	£8.12
38	34715.006	WEBER CARBURETTOR M5 NUT (now 34705.001)	£1.04
39	64005.108	WEBER 48 DCOE, 48 DCO/SP & 48 IDF CARBURETTOR THROTTLE VALVE / BUTTERFLY DISC ' 48 / 78° '	£16.33
40	64520.027	WEBER CARBURETTOR BUTTERFLY / THROTTLE VALVE SCREW (now S57392022)	£2.26
41	34705.004	WEBER CARBURETTOR TRUMPET STUD NUT (SLIM TYPE) (now 99901.165S)	£0.57
42	47610.035	WEBER IDF CARBURETTOR THROTTLE RETURN SPRING	£6.40
43	45034.109	WEBER IDF CARBURETTOR THROTTLE LEVER	£34.71
44	64830.002	WEBER IDF CARBURETTOR AUXILIARY VENTURI FIXING SCREW	£8.77
45	34715.010	WEBER CARBURETTORS TRUMPET STUD NUT (now 99901.165)	£0.37
46	64700.013	WEBER IDF CARBURETTOR CHOKE / COLD START COVER SCREW	£1.09
47	73401.135	WEBER CARBURETTOR MAIN JET	£2.95
48	61450.027	WEBER CARBURETTOR EMULSION TUBE	£18.29
49	77401.180	WEBER CARBURETTOR AIR CORRECTOR JET	£2.61
50	52580.006	WEBER IDF CARBURETTOR EMULSION TUBE HOLDER (LONG TYPE)	£23.94
51	41030.008	WEBER IDF CARBURETTOR FUEL LEVELLING FLOAT	£41.94
52	52000.001	WEBER CARBURETTOR FLOAT FULCRUM PIN	£2.04
53	79511.200	Valvolaa spillo	not available
54	83102.100	WEBER CARBURETTOR NEEDLE VALVE WASHER	£1.02
55	64700.005	Carburettor cover fixing screw (now 64695.005)	£3.74
56	10525.023	WEBER DGV / DGAV / DGAS / DGMS & IDF CARBURETTOR FUEL INLET PIPE UNION	£13.83
57	12750.126	PUMP ADJUSTMENT ROD IDF	£18.91
58	32610.003	Link rod split pin	£0.91
59	34725.008	PUMP ROD NUT IDF	£3.55
60	41535.003	WEBER CARBURETTOR FUEL INLET UNION WASHER	£1.14
61	55555.056	Trombetta washer	not available
62	61002.022	WEBER CARBURETTOR FUEL INLET BLANKING PLUG	£5.57

Hello,

This is a downloadable PDF sheet, relating to the carburettor shown in the title of this product page.

You will receive the link to download the PDF sheet, as soon as you have completed your order.

You will NOT receive anything through the post – THIS IS NOT A PHYSICAL PRODUCT.

You will need a printer, or a storage facility on your computer/mobile device/tablet, to view and store this PDF file.

We need your postal address during order checkout, because this process involves a financial transaction between you and classic carbs UK.

But we will not be posting any physical parts to you (unless you have included additional, physical parts in your order).

The diagram is mostly in English, but some variations might be in Italian or French.

The PDF will typically show you an exploded drawing of your carburettor, name of each individual part, part number of each individual part, and the original jetting and choke venturi calibration.

The download will be instantly available to you, and you can use it to help you rebuild, restore, repair and calibrate your weber carburettor(s).

This is NOT a generic ‘How to repair your weber’ manual, it is a specific spec-sheet diagram, showing you what you have and what parts it is made of.

This is Genuine WEBER factory publication, with Precise technical details, that can be very useful towards successfully bringing your weber carburettor back to life!

Add it to cart, proceed to checkout, add your contact details (incl. address), and select Paypal, debit or credit card, or bank transfer to pay for your order.

If you need any assistance, email us at [email protected]

Thanks,

Emmanuel

Classic Carbs UK

__________________________________________________________________________________________________________________

After purchase, you will be redirected to this page pictured below, where you can download the product.
